AutoMeter  |  SKU: ATMST8916S-A

AutoMeter Stack Multi-Function Dash Display Logger (MFD) 0-8K RPM - Black

Regular price $ 3,39888

Can I pick up my order or have it installed at your shop?

Absolutely. We offer local pickup on most products and full professional installation at our shop in Washington, MO. Whether you just want to grab your parts or have our techs handle the install, we’ve got you covered. Give us a quick call at 636-429-7020 or message us to schedule a visit — we’ll make sure the parts are ready when you arrive.

How do I know if this part fits my vehicle?

Unsure if it’ll fit? No problem — that’s what we’re here for. Send us your vehicle’s year, make, and model, and we’ll verify fitment before you order. We can also point you toward compatible upgrades or supporting parts if needed.

What if I need to return a product or it’s defective?

Most unused items can be returned within 30 days in their original packaging. Some products are covered by a manufacturer’s warranty as well. If something arrives damaged or doesn’t meet your expectations, just let us know — we’ll help you get it replaced, refunded, or repaired. (Tracking updates are also emailed automatically once your order ships.)

What's the lead time on custom or fabricated parts?

Many of our parts are built to order — especially fabricated or performance components. These can take additional time to produce before shipping. Lead times vary by manufacturer and demand, but we’ll always keep you updated along the way. If you’re working on a tight schedule, reach out before ordering at 636-429-7020 and we’ll confirm current availability or estimated ship dates.

Description

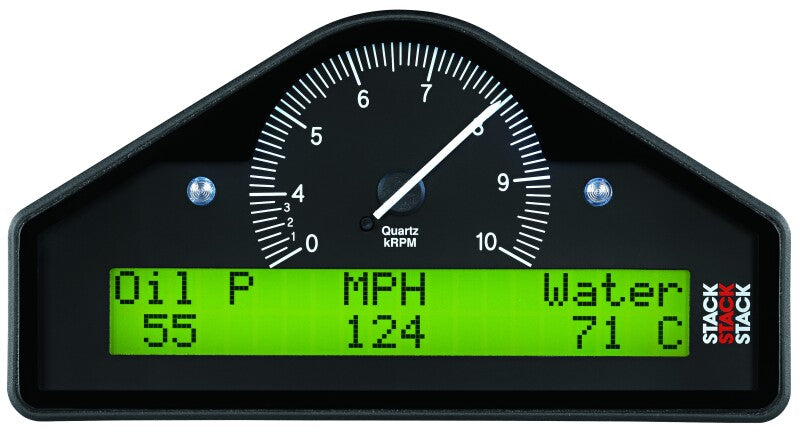

The St8916 Multi-Function Display System Combines The Proven Benefits Of Integrated Stack Display Systems With The Latest Stack Multi-Function Technology. The Stack Mfd Comes Standard With 14 Inputs (Enough To Handle Most Drivetrain And Driver Input Data Streams) And Can Be Expanded To Monitor Up To 45 Channels For More Advanced Users. System Includes Internal Voltage Channel, 3 +/- 6G Internal Accelerometers, And Lap Sensor Channel Standard As Well As 4 Universal Pulse (Speed) / Analog (0-5V) Inputs And 6 Standard Analog (0-5V) Inputs. Lap Beacon Receiver And Wheel Speed Sensor Standard, To Enable Engine Rpm, Wheelspeed, G-Force Data And Track Mapping Out Of The Box. Stack Mfds Have 32Mb Of Memory, And User Selectable Channel Recording Frequencies Of Up To 200Hz (200 Samples Per Second) With 10 Bit Resolution (16 Bit Digital Inputs Optional), With A Maximum System Sample Rate Of 4000 Samples Per Second For A Total Of 20 Channels Able To Be Recorded At Maximum Frequencies For Extremely Detailed Data Analysis.
