ICON | SKU: ICOK53272

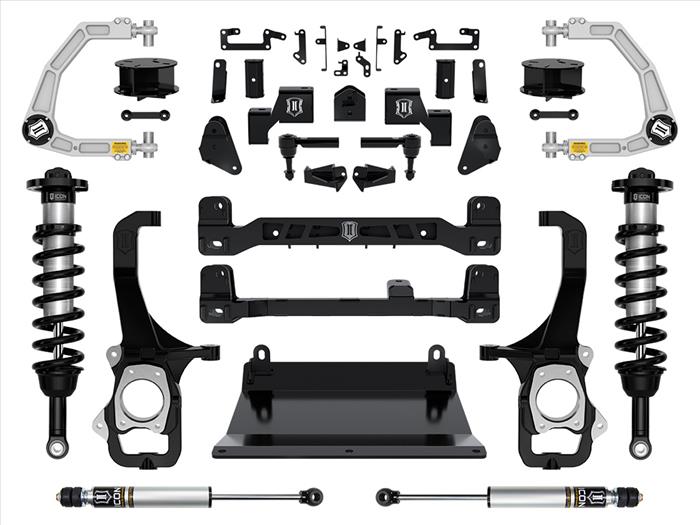

ICON 2022-2023 Toyota Tundra, 6" Lift Stage 2 Suspension System with Billet Upper Control Arms

Name: ICON 2022-2023 Toyota Tundra, 6" Lift Stage 2 Suspension System with Billet Upper Control Arms
Brand: ICON
SKU: ICOK53272
Price: 6693.20 USD
Availability: InStock

$ 6,693²⁰

Can I pick up my order or have it installed at your shop?

Absolutely. We offer local pickup on most products and full professional installation at our shop in Washington, MO. Whether you just want to grab your parts or have our techs handle the install, we’ve got you covered. Give us a quick call at 636-429-7020 or message us to schedule a visit — we’ll make sure the parts are ready when you arrive.

How do I know if this part fits my vehicle?

Unsure if it’ll fit? No problem — that’s what we’re here for. Send us your vehicle’s year, make, and model, and we’ll verify fitment before you order. We can also point you toward compatible upgrades or supporting parts if needed.

What if I need to return a product or it’s defective?

Most unused items can be returned within 30 days in their original packaging. Some products are covered by a manufacturer’s warranty as well. If something arrives damaged or doesn’t meet your expectations, just let us know — we’ll help you get it replaced, refunded, or repaired. (Tracking updates are also emailed automatically once your order ships.)

What's the lead time on custom or fabricated parts?

Many of our parts are built to order — especially fabricated or performance components. These can take additional time to produce before shipping. Lead times vary by manufacturer and demand, but we’ll always keep you updated along the way. If you’re working on a tight schedule, reach out before ordering at 636-429-7020 and we’ll confirm current availability or estimated ship dates.

Description

Get ready to take your 22-23 Tundra to the next level with this signature kit from ICON. Guaranteed to crack some necks and drop some jaws with a generous 6" lift including their high-quality shocks with coilovers and hardcore billet upper control arms.

Clean design with a black and silver aesthetic, this kit screams quality, and as always backed up by ICON's warranty and quality construction.

Features & Benefits:

2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
Maintains factory track width
Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
Billet aluminum UCAs with Delta Joint Pro for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
Single piece high-strength ductile iron steering knuckles with built-in 4" drop
Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
Included sway bar drop brackets reduce bind in OE sway bar links
Front and rear heavy-duty bump stop brackets
High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
2.0 Aluminum Series rear shocks provide balanced tune with the front coilovers
Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

NOTES:

OEM Wheels & Tires Fitment: No
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
APPLICATION NOTE #142: Not Compatible With Tundras Equipped With Load-Leveling Rear Height Control Air Suspension.
APPLICATION NOTE #153: Not Compatible With Adaptive Variable Suspension (Avs) Equipped Vehicles
APPLICATION NOTE #155: May Require Recalibration Of Toyota Safety Sense System After Install
TECH NOTE: Requires minimum of 20" diameter wheels
TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 5-6" over stock.
TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of 4.5-5.5" over stock.
TECH NOTE: Tundra SR5 with TRD Sport package will have front lift height range of 6-7" over stock.
TECH NOTE: Tundra TRD Pro will have front lift height range of 3.25-4.25" over stock.
