10-Inch Lift Kit for 2000-2005 Ford Excursion 4WD
Description
Description
Take your 2000-2005 Ford Excursion 4WD to the next level with this 10-inch lift kit from BDS Suspension. Enhance the stance, performance, and capabilities of your truck with ease.

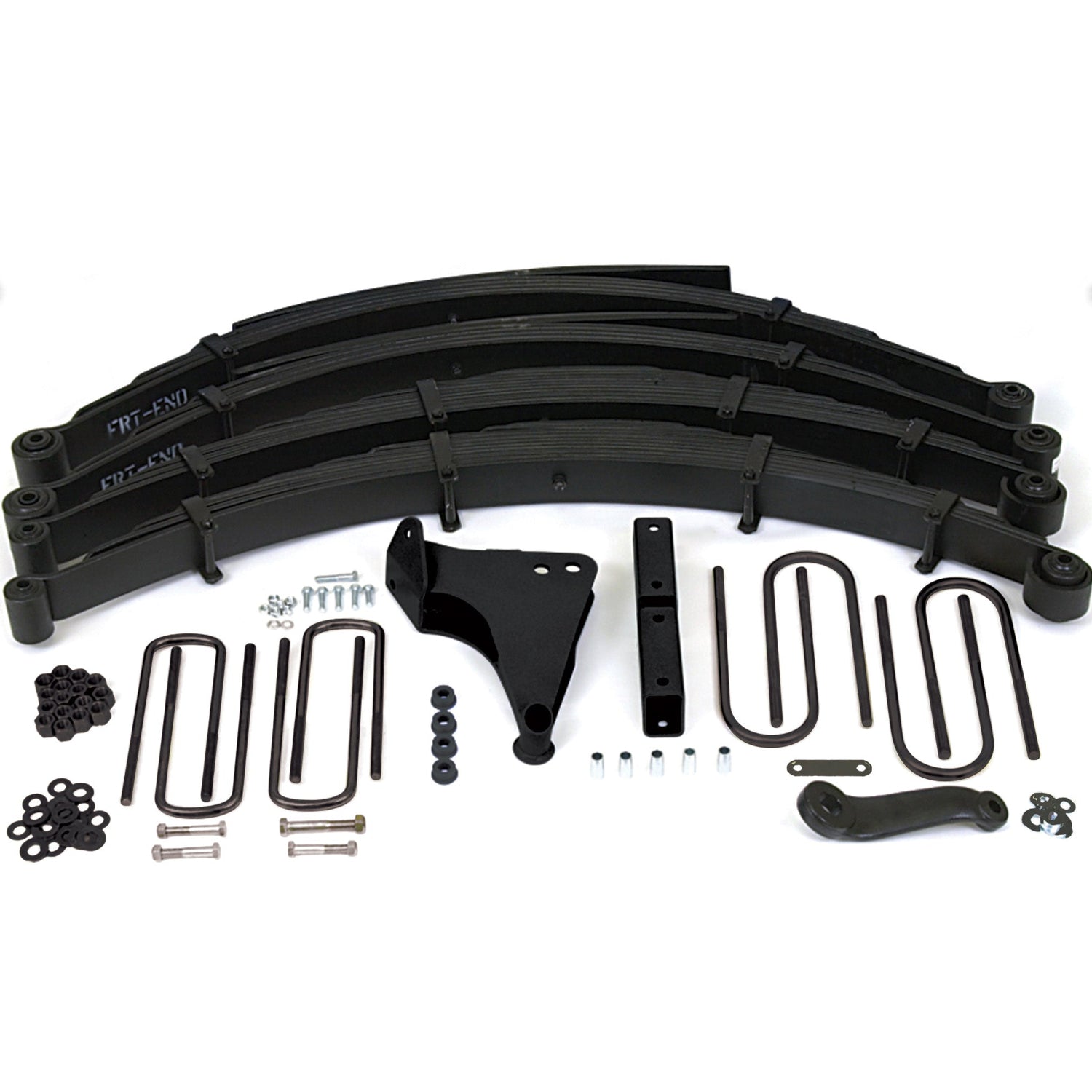

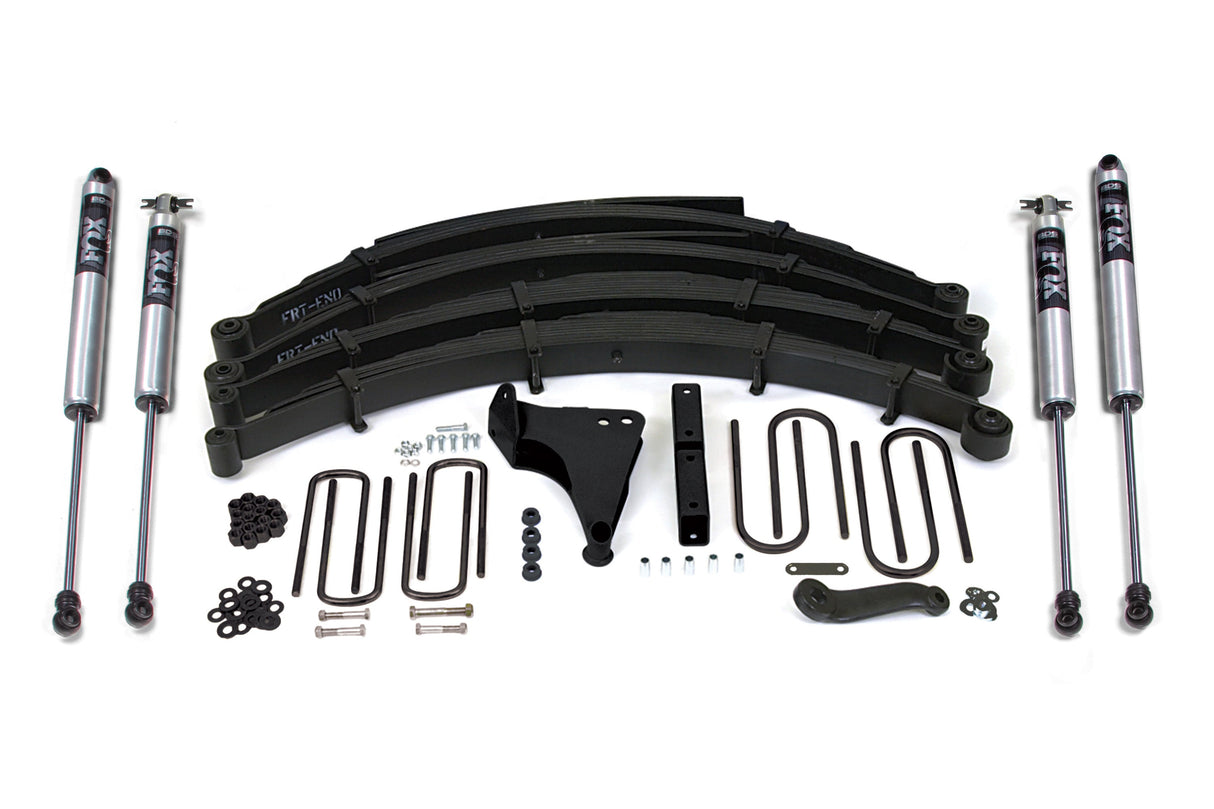

This kit has everything you need to achieve the perfect setup, including clearance for up to 38" tires. The front includes Glide-Ride leaf springs, a drop pitman arm and track bar bracket for improved steering, sway bar links, bump stop brackets, and precision-tuned NX2 or FOX nitrogen charged shocks. In the rear, the base kit includes replacement Glide-Ride full leaf spring packs, u-bolts, and a matching set of NX2 Nitro or FOX Performance shocks for optimal results.
Glide-Ride Leaf Springs
Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will reduce axle wrap and provide flexibility throughout the suspension cycle.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Shock Option
NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Features & Benefits
- Easy, 100% Bolt-on installation
- Glideride leaf springs to provide full lift height and increased capacity
- Track bar relocation bracket and pitman arm maintains proper steering angles for improved handling
- Cast steel blocks provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Recommended Tires & Wheels
(Trimming may be required)
- 38 x 13.5 with 16 x 10 and 4 in. Backspace
10-Inch Lift Kit for 2000-2005 Ford Excursion 4WD | SKU BDS305FS
