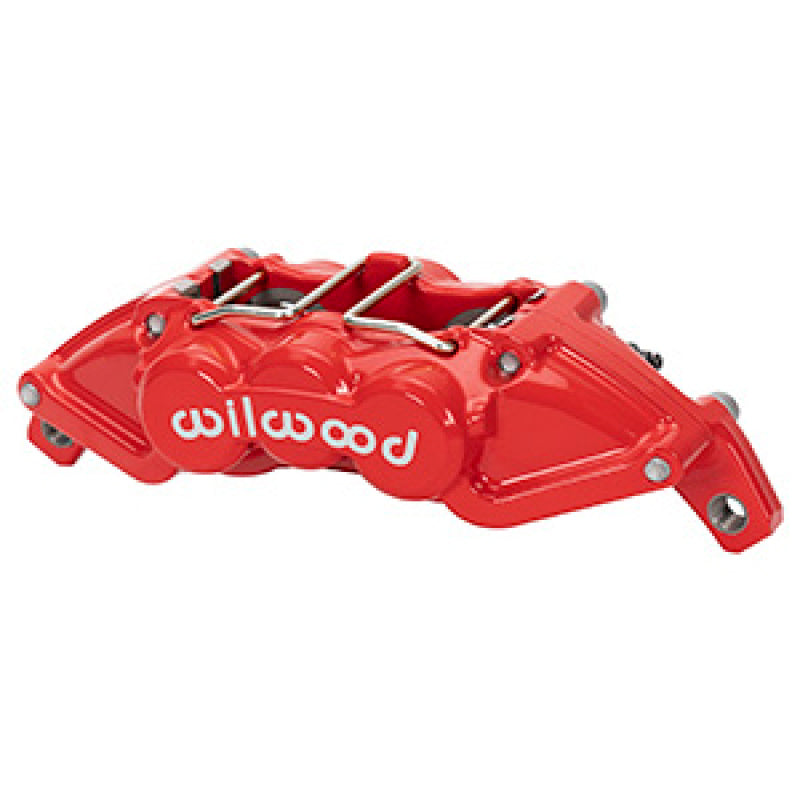

Wilwood Universal UTV4 Caliper 1.12/1.12in Pistons 25in Rotor - Red
Description
Description
UTV4 and UTV6 forged aluminum differential-bore four and six piston calipers are newest design for the specificaly UTV market. ASM design and forged construction reduce deflection and provide more uniform engagement to increase braking force and improve feel. Stainless steel pistons and anti-knock back springs further enhance the pedal feel. Calipers use standard 7812 shape, high-friction brake pads.
| Pistons | |
|---|---|
| Piston Count | 4 |
| Piston Area (in²) | 1.98 |
| Piston Type | Stainless |
| Dust Boot | No |
| Rotor Dimensions | |
| Rotor Width (in) | 0.25 |
| Rotor Diameter(in) | 11.25 |
| Pad Dimensions | |
| Pad Area (in²) | 6.36 |
| Pad Volume (in³) | 2.1 |
| Duty Rating & Material | |
| Material | Forged Aluminium |
| Weight(Lbs) | 3.2 |
| Colors & Finish | |
| Color | Red |
| Finish | Red Powder Coat |
| Mounting | |
|---|---|
| Mount Center(in) | 8.75 |
| Mount Position | |
| Mount Side | Universal |
| Mount Type | Lug |
| UPC Number | |
| UPC | 889545104127 |
