Edelbrock Crate Engine Eforce Supercharged Ls 416 CI w/ Complete EFI And Access
Can I pick up my order or have it installed at your shop?
Can I pick up my order or have it installed at your shop?
Absolutely. We offer local pickup on most products and full professional installation at our shop in Washington, MO. Whether you just want to grab your parts or have our techs handle the install, we’ve got you covered. Give us a quick call at 636-429-7020 or message us to schedule a visit — we’ll make sure the parts are ready when you arrive.
How do I know if this part fits my vehicle?
How do I know if this part fits my vehicle?
Unsure if it’ll fit? No problem — that’s what we’re here for. Send us your vehicle’s year, make, and model, and we’ll verify fitment before you order. We can also point you toward compatible upgrades or supporting parts if needed.
What if I need to return a product or it’s defective?
What if I need to return a product or it’s defective?
Most unused items can be returned within 30 days in their original packaging. Some products are covered by a manufacturer’s warranty as well. If something arrives damaged or doesn’t meet your expectations, just let us know — we’ll help you get it replaced, refunded, or repaired. (Tracking updates are also emailed automatically once your order ships.)
What's the lead time on custom or fabricated parts?
What's the lead time on custom or fabricated parts?
Many of our parts are built to order — especially fabricated or performance components. These can take additional time to produce before shipping. Lead times vary by manufacturer and demand, but we’ll always keep you updated along the way. If you’re working on a tight schedule, reach out before ordering at 636-429-7020 and we’ll confirm current availability or estimated ship dates.
Description
Description

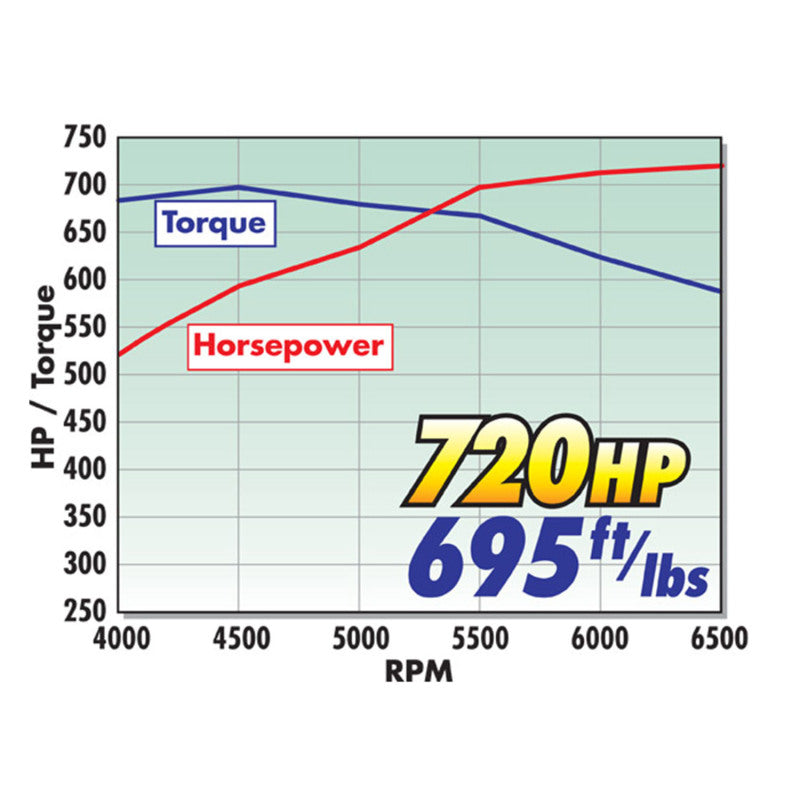

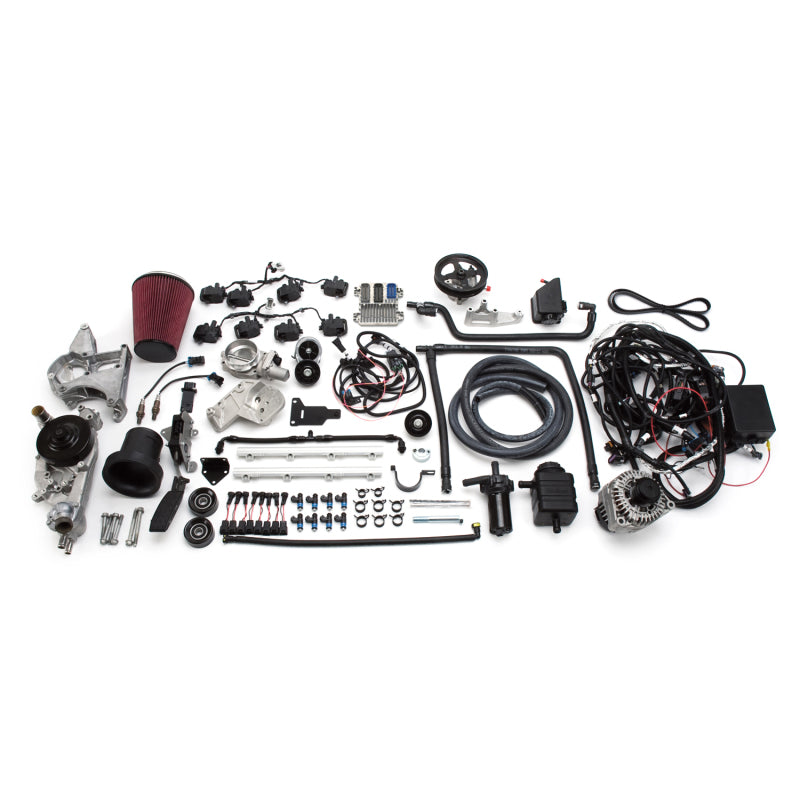

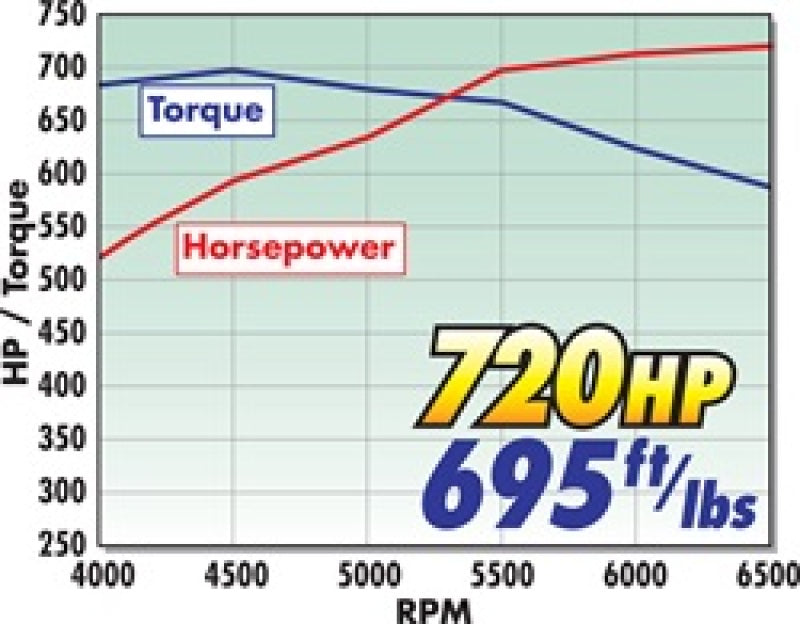

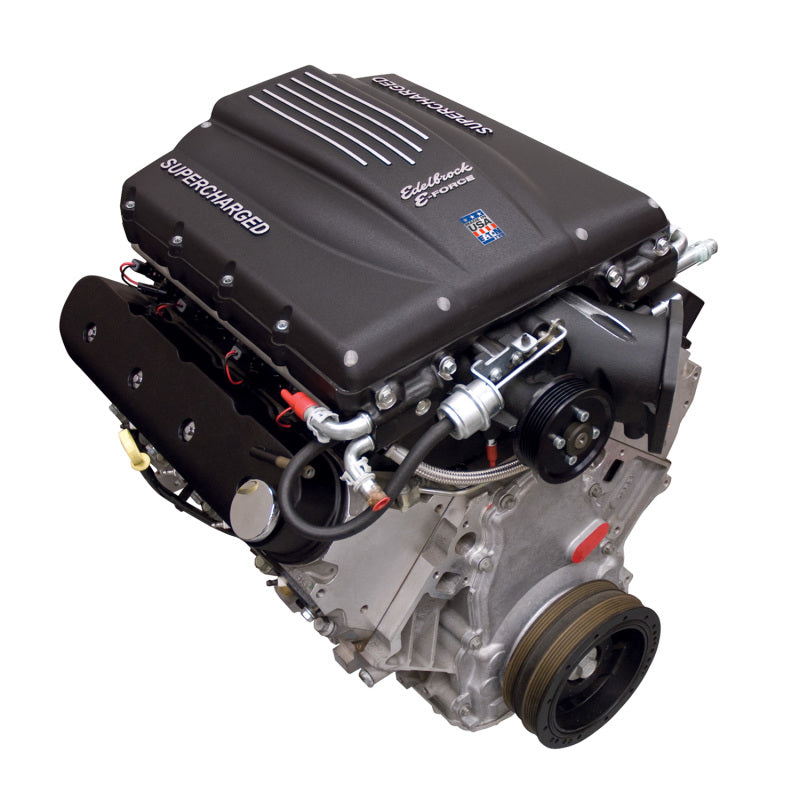

Edelbrock Supercharged LS 416 crate engine part #46760 produces 720 horsepower and 695 ft-lbs. of torque, on 91 octane pump gas. The foundation is a brand new, aluminum LS3 block with a forged and balanced Manley crankshaft, forged Manley H-Beam connecting rods and Manley forged aluminum pistons.Sitting on top is an Edelbrock E-Force supercharger system with Eaton TVS 2300cc/rev rotors. Also included are supercharger kit components, such as the electric intercooler water pump, intercooler plumbing and intercooler recovery tank, as well as fuel rails, 60 lb./hr. fuel injectors, mass air flow sensor (MAFS) housing and re-usable air filter. The supercharger on this engine has a driver's side throttle body orientation for ease of intake routing and a Corvette belt offset. Pair with universal heat exchangers for a complete installation.Engine Specifications: - Displacement: 416 c.i.d.- Bore: 4.065"- Stroke: 4.000"- Bore: 4.065"- Stroke: 4.0"- Horsepower: 720 hp- Torque: 695 ft-lbs.- Compression: 9.5:1- Block: LS3 Aluminum- Crankshaft: Forged 4340- Pistons: Forged Aluminum - 18cc- Rods: Forged H-Beam- Camshafts: 215 Deg /247 Deg , .629/.656, 121 LSA- Rocker Arms: LS3, 1.7 ratio- Induction: E-Force Supercharger System #1540- Cylinder Heads: GM with Edelbrock Valve Springs #5768- Finish: Black powder coated- Warranty: 2-year / Unlimited mileage
