Description
Description

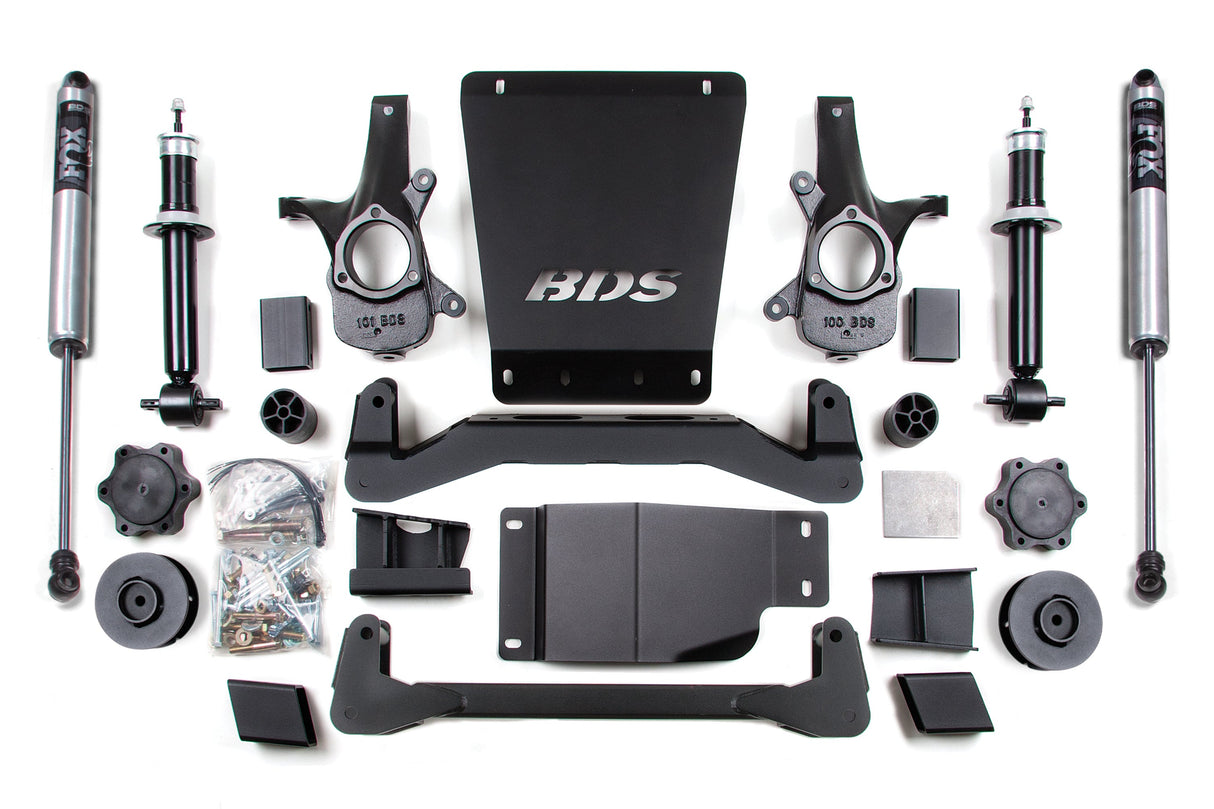

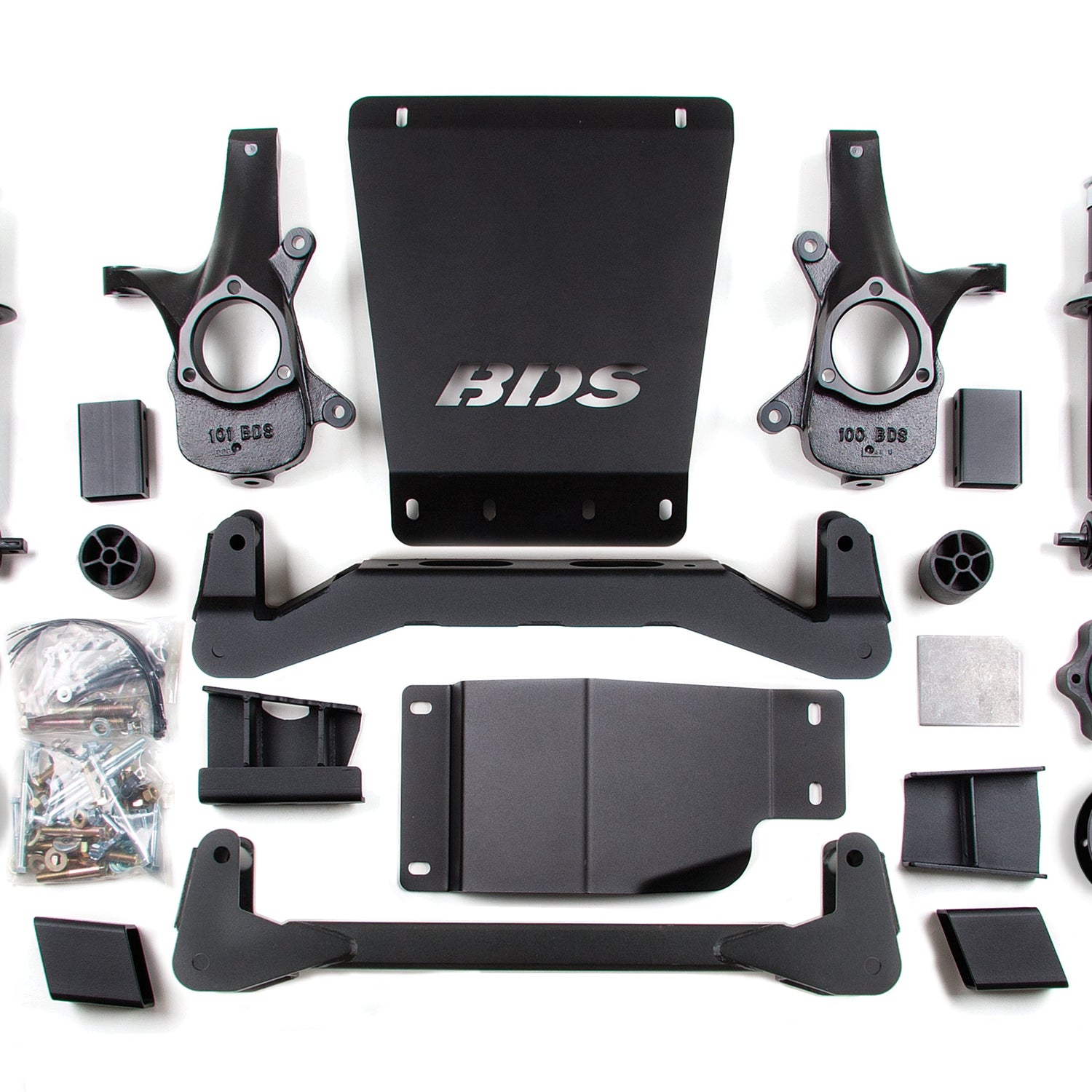

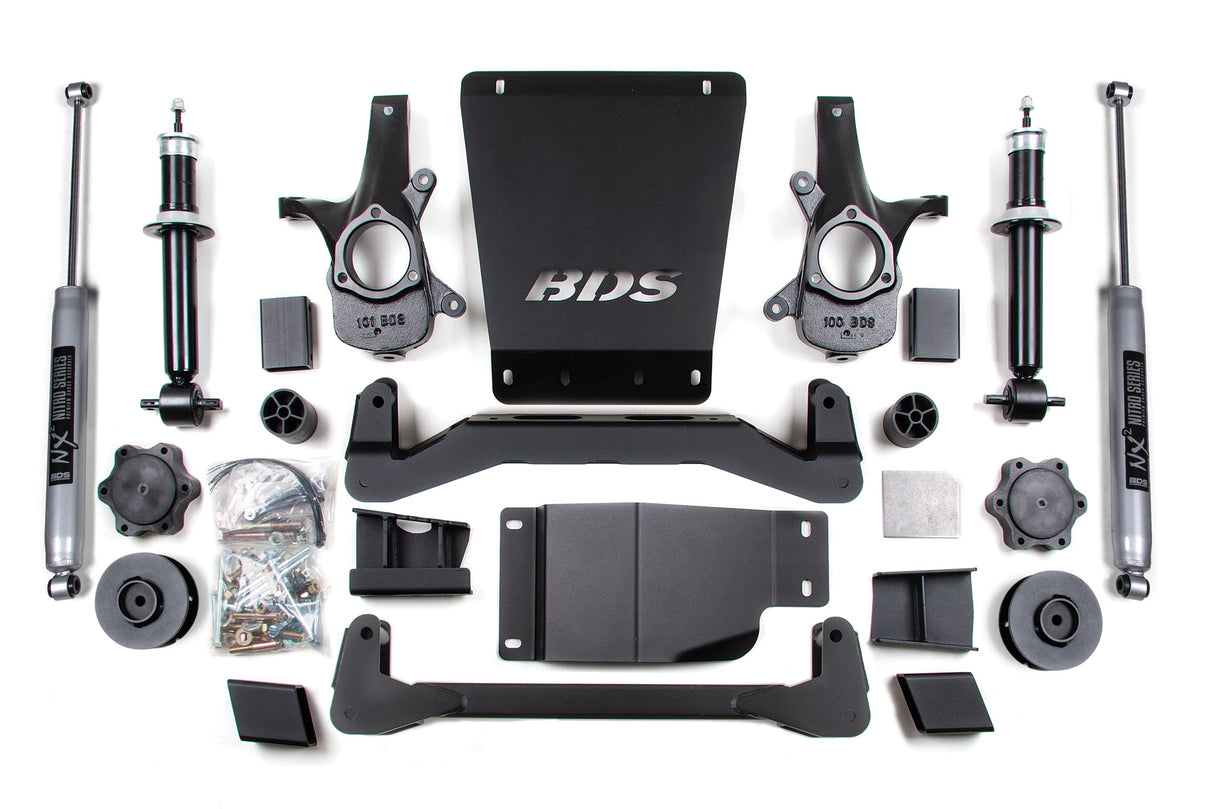

The kit comes complete with all the necessary components for a smooth and sturdy lift, allowing clearance for up to 33" tires. And with BDS's renowned high-clearance design, you'll have the ultimate ground clearance, strength, and offroad protection. The kit also includes full length replacement strut shocks, 1/4-inch thick steel crossmembers, diff relocation brackets, and heavy-duty skid plates.
Steering geometry is corrected with CNC-machined ductile iron steering knuckles, sway bar drops, bump stop extensions, and more. And to level things out, the kit comes with coil spring spacers for the rear, along with precision-tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks. Get ready to dominate the road
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.
Shock Option
NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Rear Lift Option
These vehicles vary from level to 1-2" tail high from the factory. We offer a 2" rear kit as well as a 3" rear lift kit. Be sure to measure your vehicle and order the appropriate rear lift height to level your SUV.
2 Inch Lift Coil Spacer
- If your vehicle is 2" tail high from the factory then this is the appropriate selection to level your vehicle.
- This system includes 2" coil spacers.
3 Inch Lift Coil Spacer
- If your vehicle is closer to 1" tail high from the factory then this is the appropriate selection to level your vehicle.
- This kit includes 3" coil spacers and a track bar relocation system.
Features & Benefits
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- High-strength replacement upper control arms provide durability and serviceability
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- Factory Protection Plus drivetrain warranty included
Recommended Tires & Wheels
(Trimming may be required)
- 32 x 11.5 with 17 x 8 and 4.5 in. Backspace
- 33 x 12.5 with 17 x 9 and 5 in. Backspace
- 33 x 12.5 with 20 x 9 and 5.75 in. Backspace
SKU: BDS188FS 2007-2014 Chevy/GMC Avalanche + Surburban + Tahoe + Yukon 1500 4WD
