Description
Description

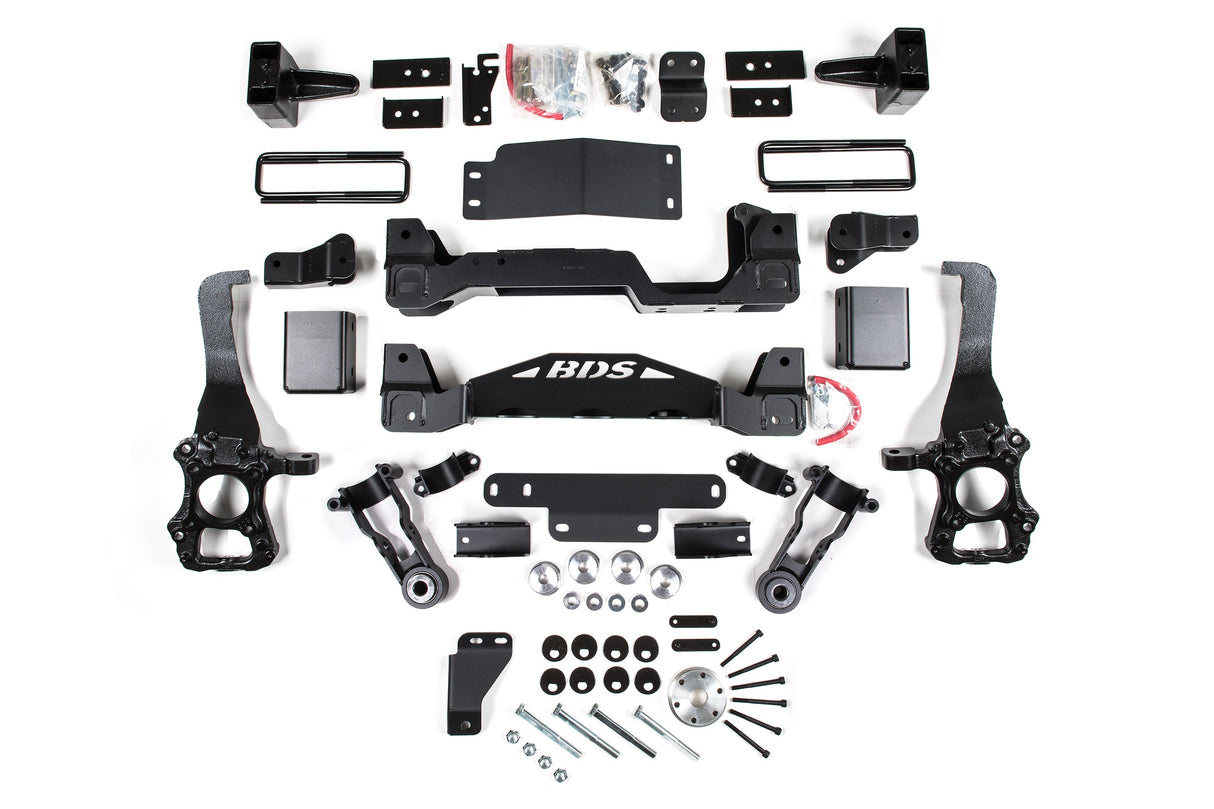

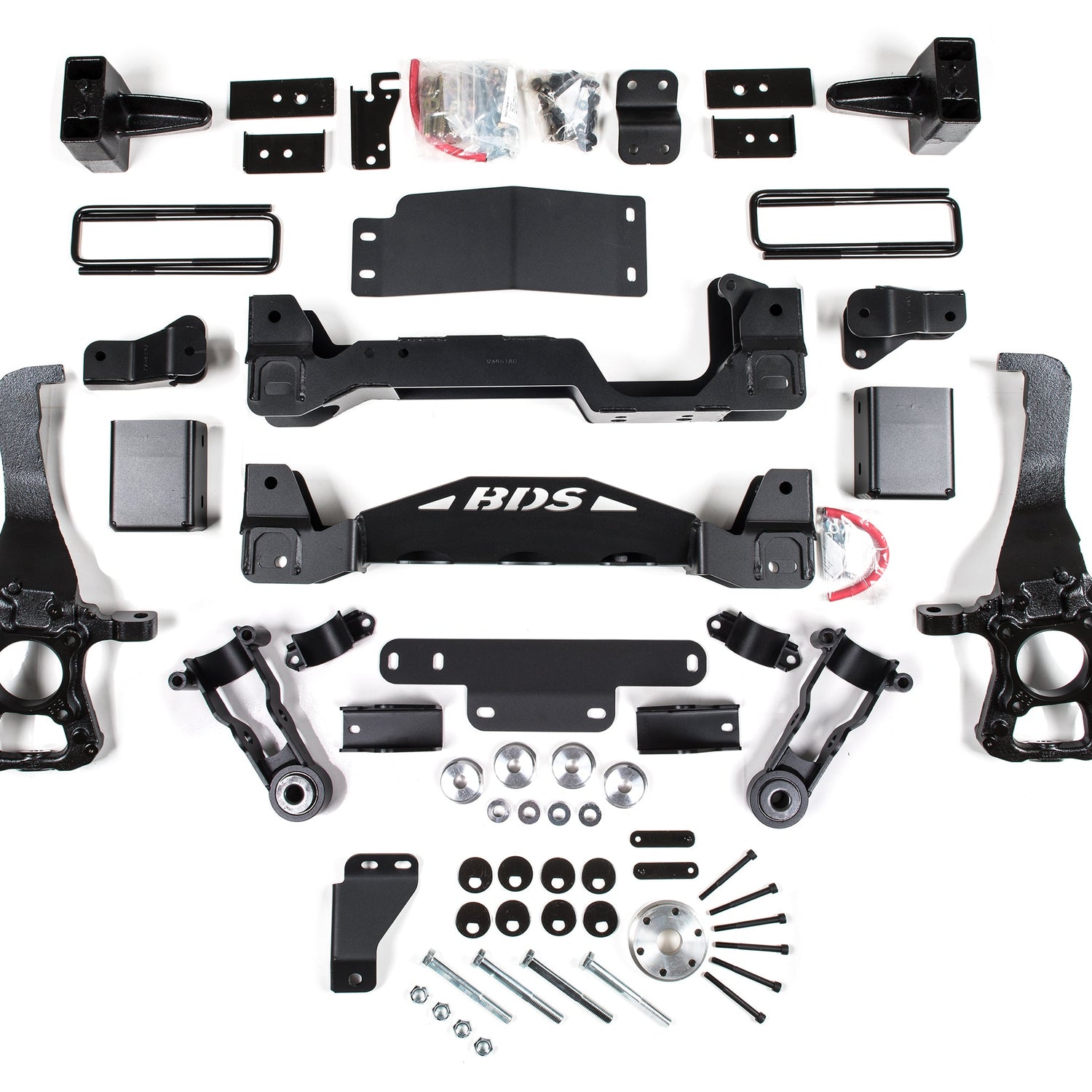

This all-inclusive kit provides clearance for up to 37" tires and features BDS's renowned high-clearance design for improved ground clearance, strength, and offroad protection. The front of the kit includes high-arched 1/4-inch thick steel crossmembers, lower strut extension, multipiece differential relocation brackets, and a skidplate for maximum offroad protection.
The new taller ride height is also optimized with massive CNC-machined ductile iron steering knuckles, sway bar relocation brackets, brake line brackets, alignment cam bolts, and all necessary hardware for improved on-road handling. In the rear, the kit utilizes high
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Rear Lift Option
5 Inch Block Kit
- Level to tail high appearance
4 Inch Block Kit
- Tail low to level stance
Features & Benefits
- High clearance crossmembers improve strength and offroad capability
- Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
- Top mounted strut spacers to provide lift and install easily
- Differential skid plate for improved offroad protection
- Rear lift blocks and u-bolts to lift and level the stance
- Shock relocation brackets to maintain factory FOX Shocks
Recommended Tires & Wheels
(Trimming may be required)
- 37 x 12.5 with 18 x 9 and 5 in. Backspace
- 37 x 12.5 with 20 x 9 and 5 in. Backspace
4-Inch Lift Kit for 2019-2020 Ford F-150 Raptor 4WD | SKU BDS1963H
