ICON | SKU: ICOK24003

ICON 2007-18 Jeep JK Wrangler, 4.5" Lift, Stage 3 Suspension System

Name: ICON 2007-18 Jeep JK Wrangler, 4.5" Lift, Stage 3 Suspension System
Brand: ICON
SKU: ICOK24003
Price: 6929.57 USD
Availability: InStock

$ 6,929⁵⁷

Can I pick up my order or have it installed at your shop?

Yes! We offer local pickup on most products and professional installation at our shop at 25 Town and Country Drive, Washington, MO. 63390. Contact us at 636-429-7020 to schedule a time to come in.

How do I know if this part fits my vehicle?

If no fitment info is listed, contact us at 636-429-7020 with your vehicle’s year, make, and model — we’ll help you find the right part.

What if I need to return a product or it’s defective?

Most items can be returned within 30 days if unused and in original packaging. Many products also include a manufacturer warranty. Contact us at 636-429-7020 for assistance.

How can I track my order?

Once your order ships, you’ll get a tracking number via email to monitor your shipment.

Description

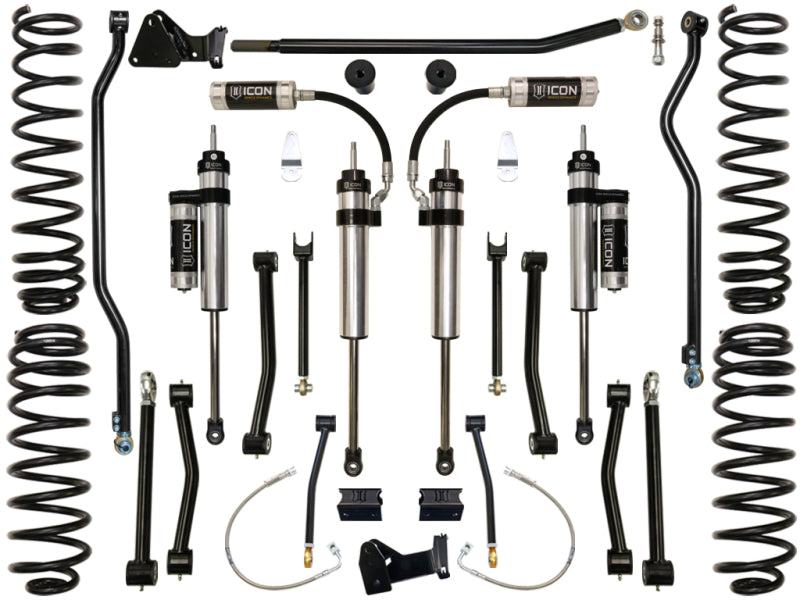

The ICON Stage 3 Jeep JK 4.5" suspension system includes dual-rate coil springs, track bar drop brackets, high-steering components, bump stop spacers, rear brake lines, rear sway bar links, complete set of front and rear links, and 2.5 Series reservoir shocks. Tested and tuned, the ICON JK Stage 3 suspension system offers stability and drivability over a wide range of off-road terrains, while keeping a smooth on road feel for every day driving. This system includes 2.5" remote reservoir shocks front and rear to ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. Installing this kit allows proper clearance for 35" tall tires with no modifications and 37" tires with aftermarket high clearance fenders.

Features & Benefits:

Dual-rate coil springs front and rear guaranteed never to sag
High-steer flip kit for proper steering geometry without a drop pitman arm and increased ground clearance over stock
Stainless steel high-steer taper adapter eliminates drilling of the factory knuckle
All links and track bars utilize dual-rate bushings and PTFE-lined rod ends for tuned vibration isolation, controlled deflection, with maximum articulation and responsiveness
Track bars are on vehicle adjustable designed for optimizing axle postion
Includes high-performance rebuildable and revalvable reservoir 2.5 Series shocks
2.5 series shocks feature an internal bump zone for added bottom out control
Increased wheel travel and articulation over stock
100% returnable to stock

NOTES:

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5” Backspace / -6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5” Backspace / -12mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Larger 37" tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended)
APPLICATION NOTE #62: Front Driveshaft Can Hit Certain Model Skid Plates At Full Droop And May Need To Be Trimmed For Full Articulation
APPLICATION NOTE #66: 2 Door Models Sit Slightly Higher Than 4 Door Models But Remain Level When Installed
APPLICATION NOTE #80: Front Drive Shaft Required For Proper Front Driveline Clearance (ICON Part #22014 [12-Up] / #22016 [07-11]
APPLICATION NOTE #123: May Require Rear Alignment Cam Kit
APPLICATION NOTE #150: Shocks Are Fully Serviceable
TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JK build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
Ships In Multiple Boxes
