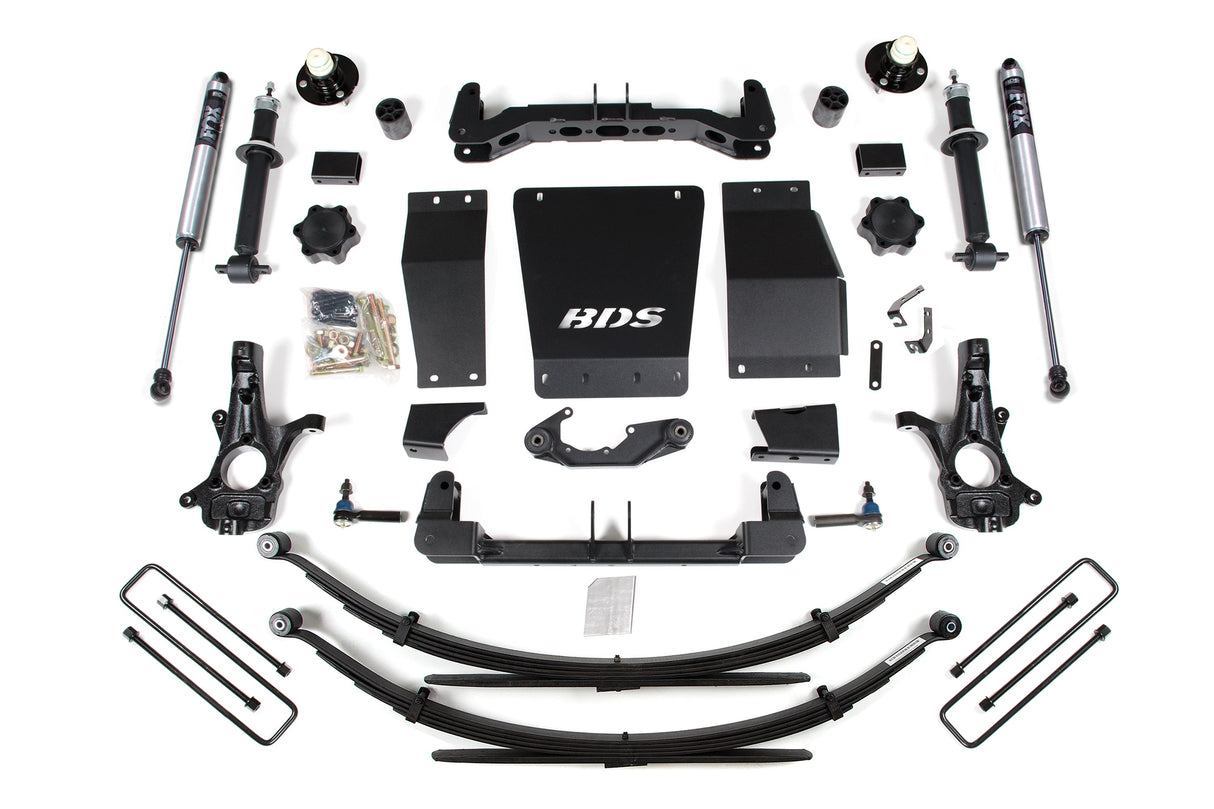

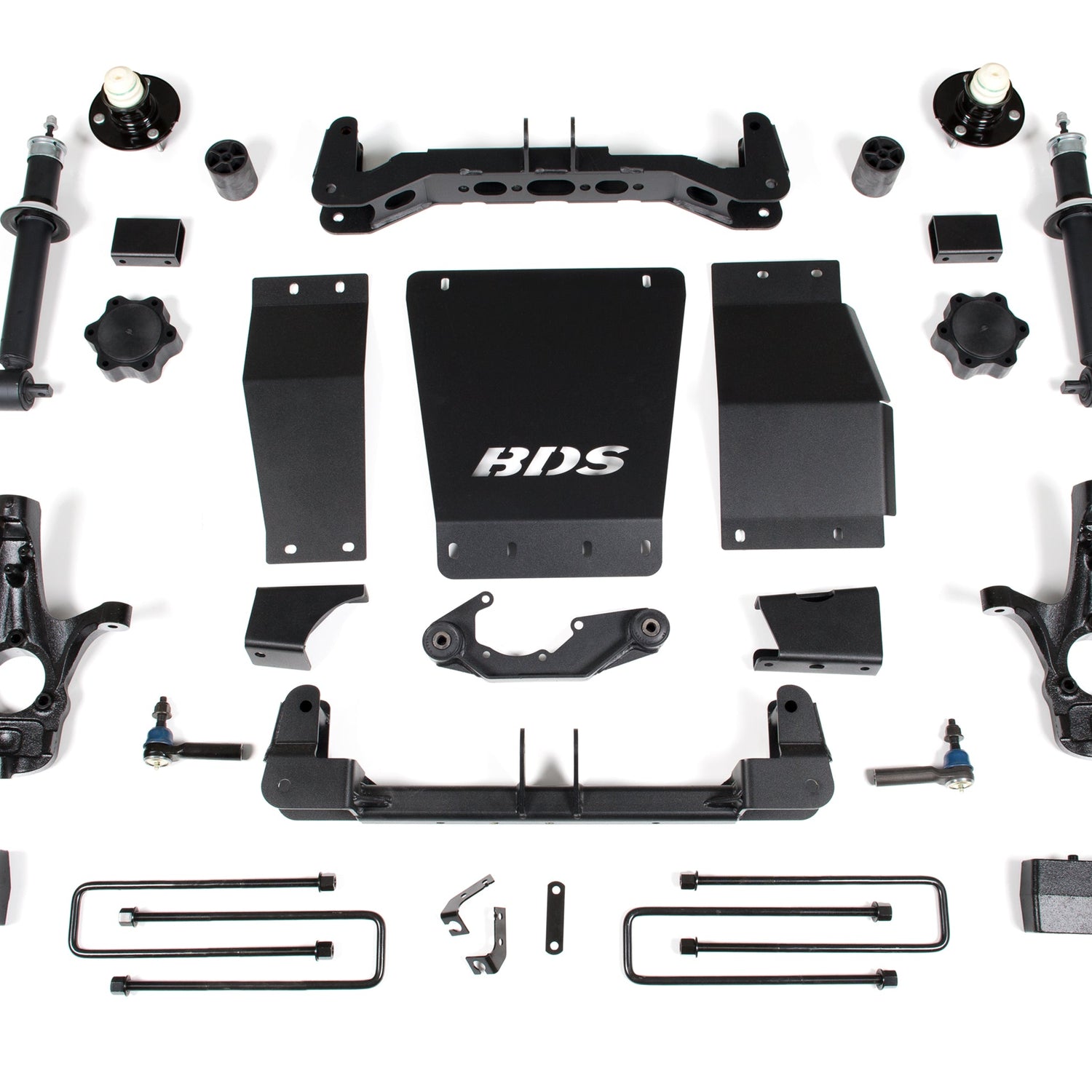

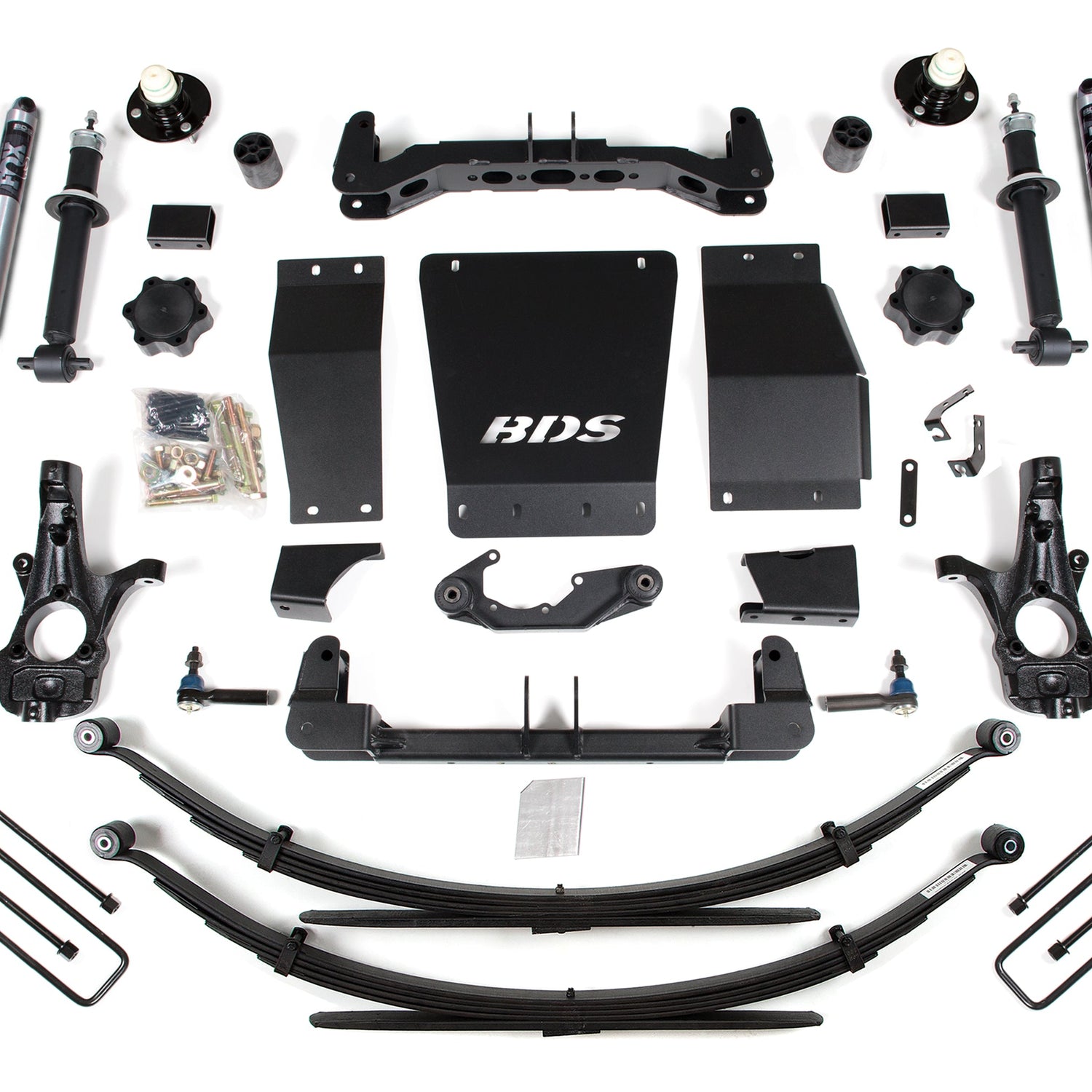

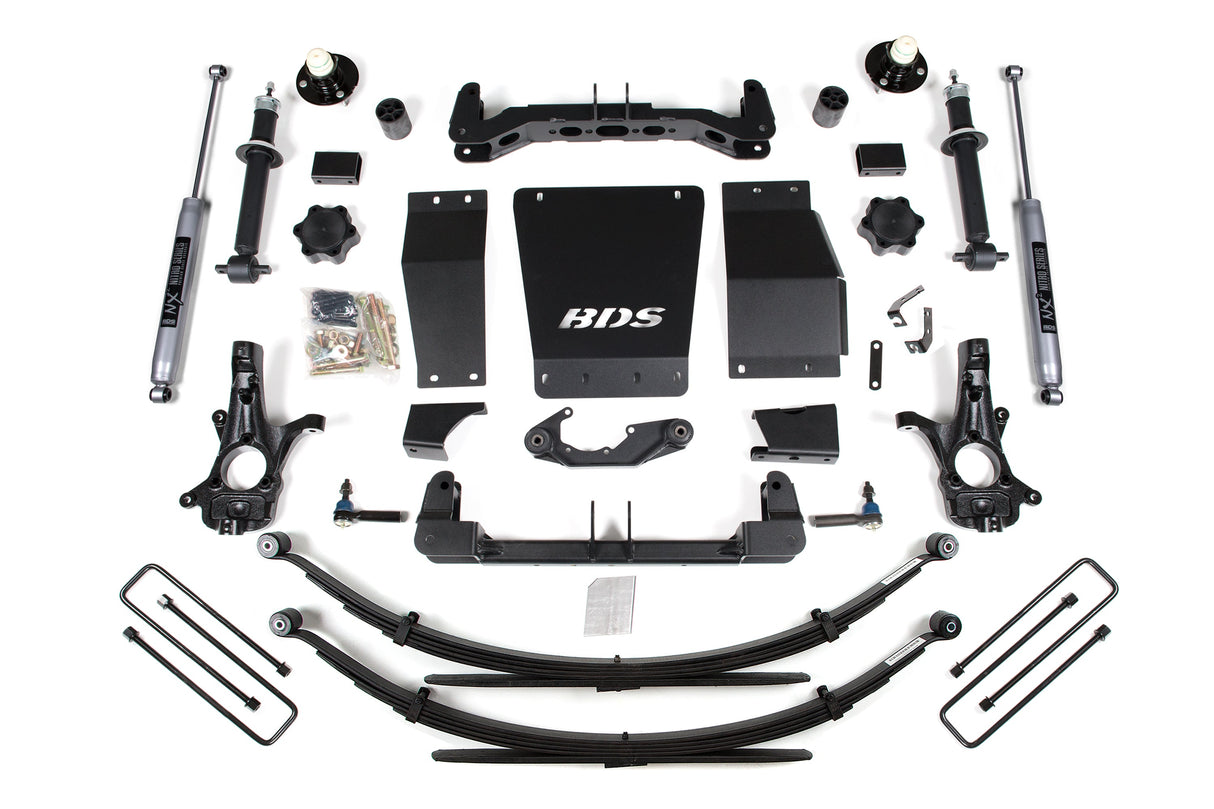

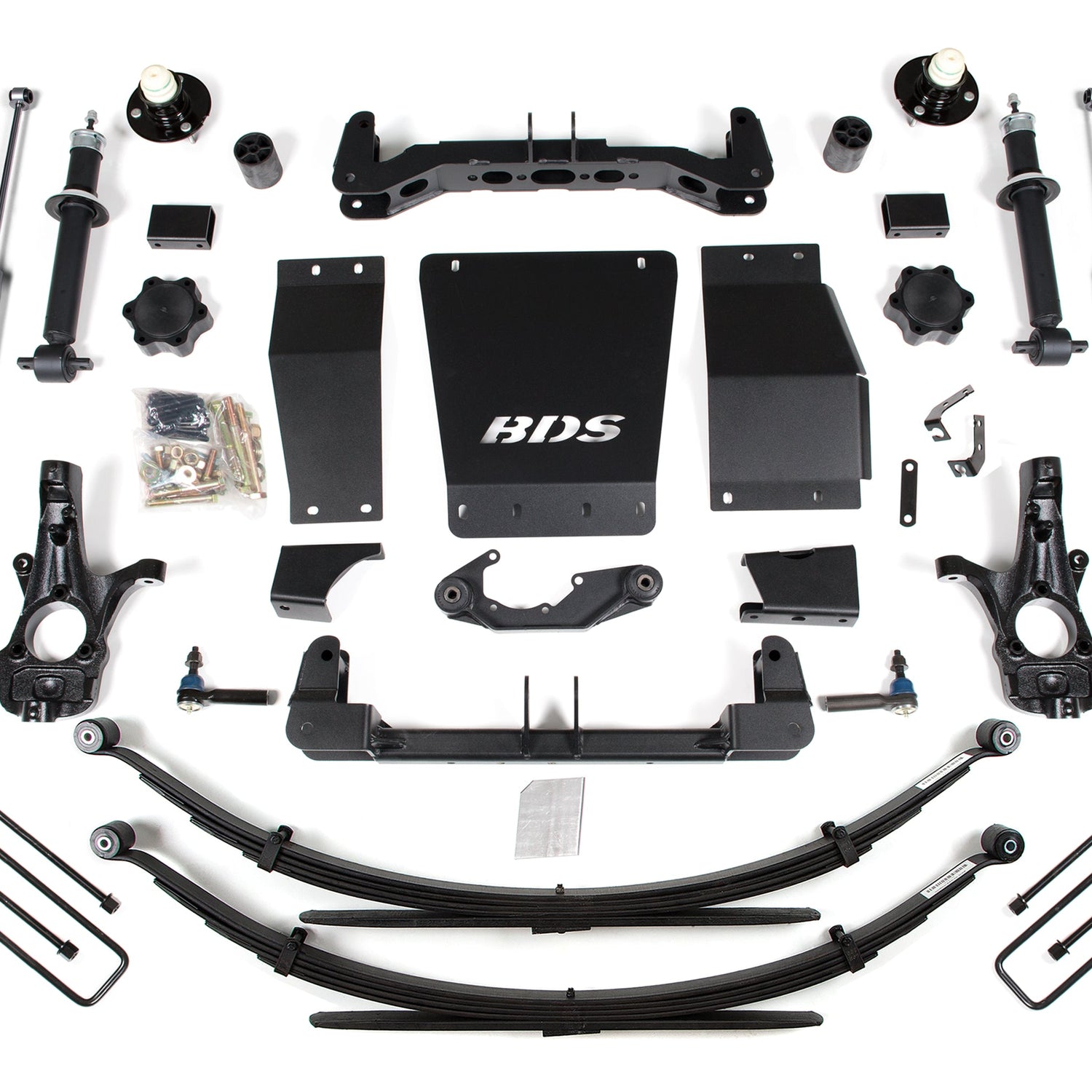

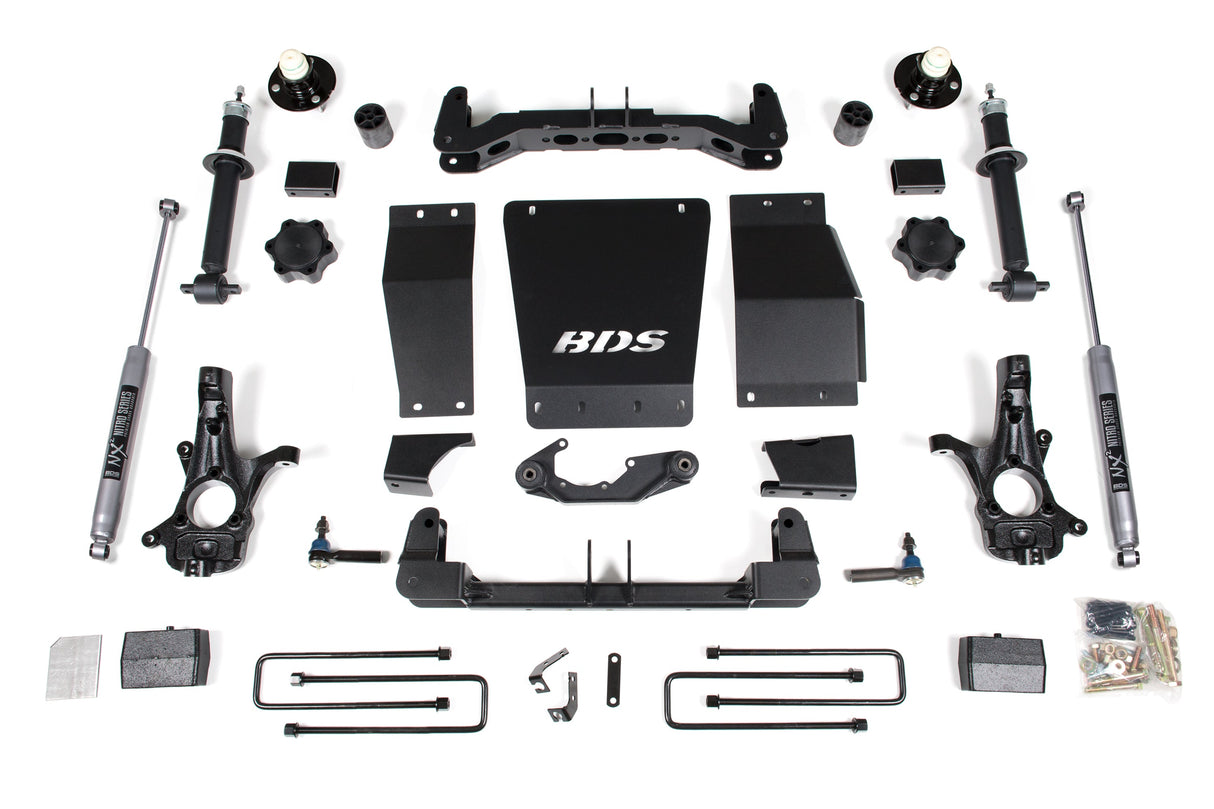

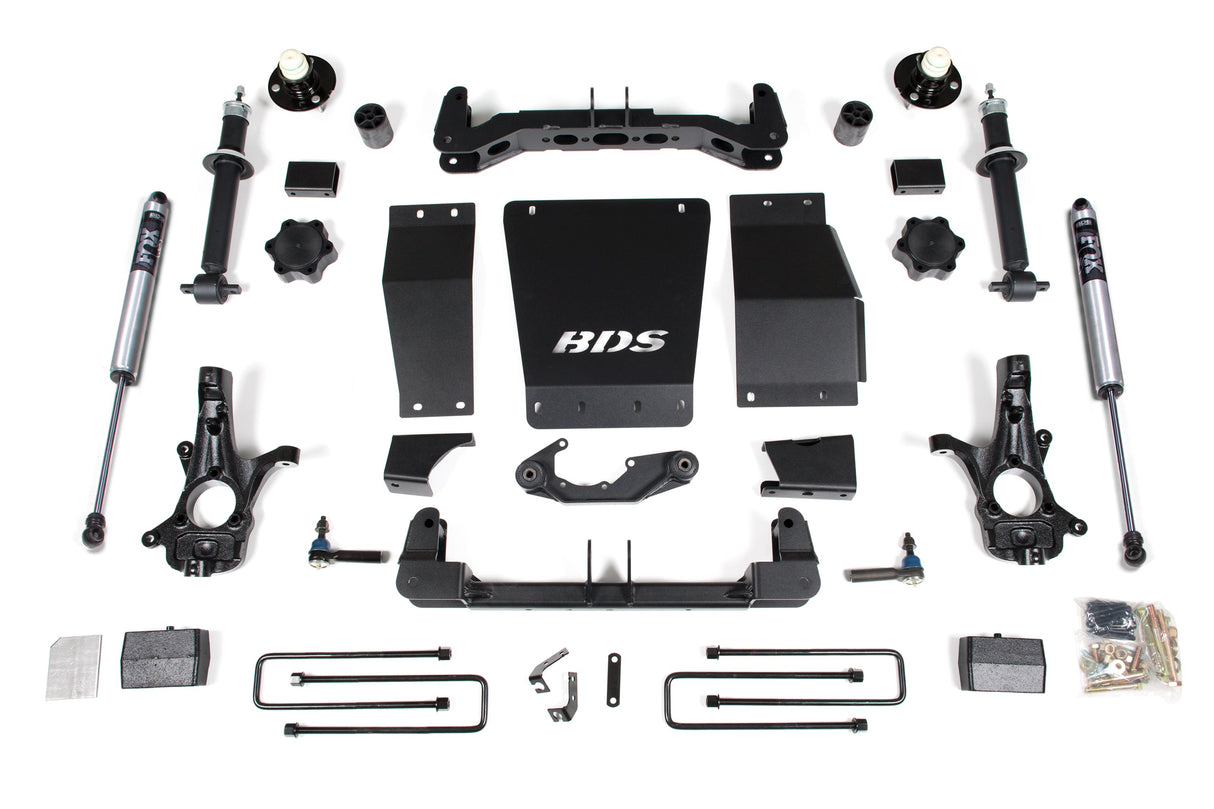

4-Inch Lift Kit for 2014-2018 Chevy Silverado + GMC Sierra 1500 4WD
Description
Description
Transform your 2014-2018 Chevy Silverado and GMC Sierra 1500 into an envy-inducing powerhouse with the incredible 4-inch lift kit from BDS. Increase performance, capability, and clearance for up to 33" tires with this all-inclusive kit. Utilizing BDS's trusted high-clearance design and superior components, this kit corrects suspension and steering geometry for optimal on-road handling while providing top-of-the-line offroad protection.
The front of the truck is equipped with full-length replacement shocks, heavy-duty steel crossmembers, and sturdy skid plates. With CNC-machined steering knuckles, sway bar drops, bump stop extensions, brake line brackets, CV spacers, and all necessary hardware, this front suspension lift is ready for any challenge.
The rear can be lifted and leveled with either a replacement lift block or full Glide-Ride leaf springs, both options maintaining ride quality and load capacity. Get the full experience with new u-bolts and precision-tuned
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.
Features & Benefits
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- Factory Protection Plus drivetrain warranty included
Recommended Tires & Wheels
(Trimming may be required)
- 33 x 12.5 with 17 x 9 and 5 in. Backspace
- 33 x 12.5 with 18 x 9 and 5 in. Backspace
- 35 x 12.5 with 20 x 9 and 5.75 in. Backspace
Factory Control Arm Type
*IMPORTANT*: GM is producing several knuckle/control arm configurations in 2014-2018 models trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering by referencing the help images in each tab below.
Rear Lift Option
5 Inch Block Kit
- The 5" rear block replaces the factory 1-1/4" block
- Nets 4" of rear lift to level the vehicle.
- Made of cast iron for high strength.
- Designed to provide correct pinion angles.
Leaf Springs
- Eliminates any need for a lift block.
- Reduces axle wrap and creates a more controlled and stable feel.
- Multi-leaf progressive design for a smooth ride.
- Maintains factory payload weight ratings.
Rear Shock Option
NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
4-Inch Lift Kit for 2014-2018 Chevy Silverado + GMC Sierra 1500 4WD | SKU BDS713FS
