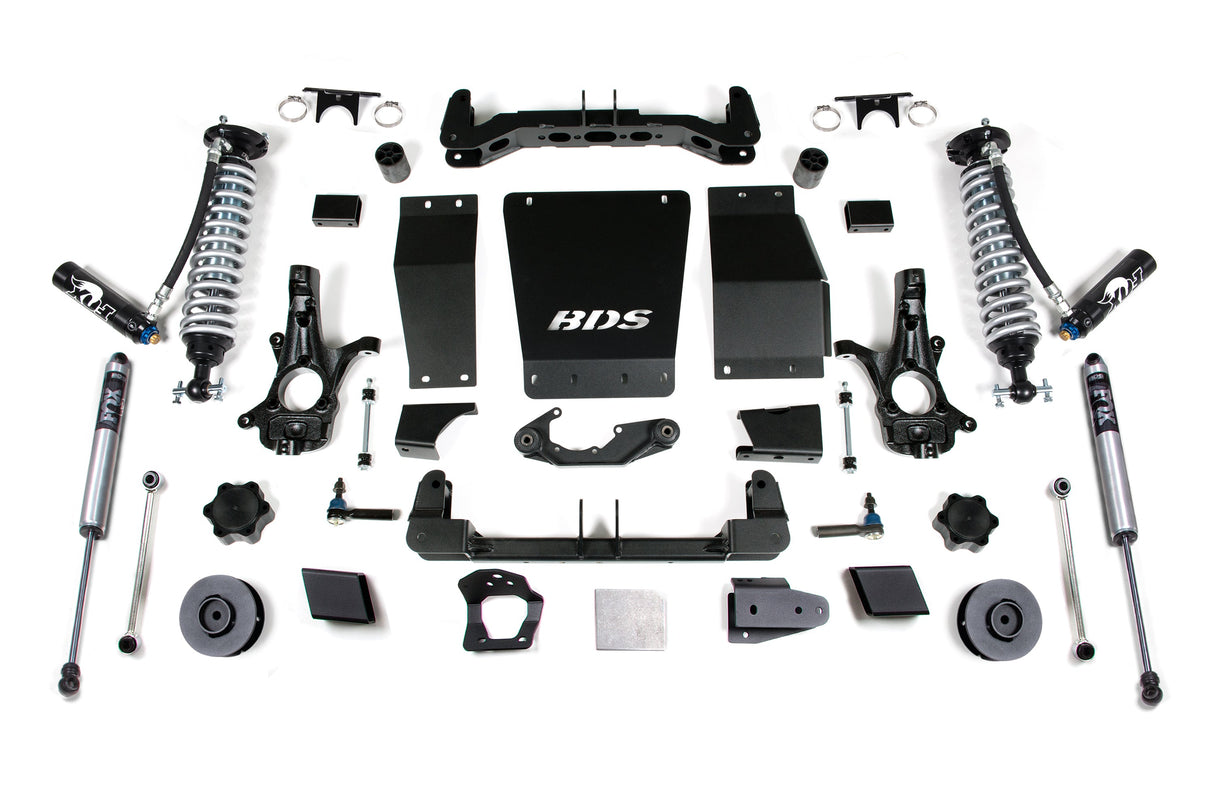

4-Inch Lift Kit w/ FOX 2.5 Coilovers for 2015-2019 Chevy/GMC Suburban, Tahoe, Yukon/XL 1500 4WD

Upgrade the off-road performance of your 2015-2019 Chevy Suburban/Tahoe or GMC Yukon 1500 with this 4-inch Coilover Suspension Lift Kit by BDS!

This lift kit includes FOX 2.5 Coilover Shocks designed specifically for increased travel and the ability to soak up the roughest terrain—along with smooth on-road comfort.

Engineered to improve looks, performance, and durability, this kit includes everything necessary to run up to 33" tires This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, this kit utilizes:

• Full-length replacement strut shocks
• High-arched 1/4-inch thick steel crossmembers
• Multipiece differential relocation brackets
• Heavy-duty skid plates built for protection in rough terrain

Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops bump stop extensions brake line brackets CV spacers supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear, BDS offers coil spring spacers to properly level the vehicle. Also for the rear is your choice of precision-tuned NX2 Nitro or Premium FOX 2.0 Performance Series Shocks.

FOX 2.5 Coilovers

FOX 2.5 Coilovers offer next-level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box these bolt-on 2.5-inch diameter coilovers are built for abuse and packed with race-proven technology. They feature a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits off-road.

DSC Adjustment

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy-duty 1/4-inch thick laser-cut perfect-fit crossmembers. This is paired with a front skid plate system that bolts together—creating a rigid subframe while adding extra protection.

Lift Kit Features:

• Tapered and roll-pointed leafs add flexibility and provide an even deflection rate
• Increased wheel travel and a softer ride from tapering allow smoother transition between leafs as compression takes place
• Higher articulation from bolt-style leaf alignment clamps prevents leafs from fanning out allowing leafs to twist and flex
• Multi-leaf progressive design for a smooth ride
• Anti-friction pads provide a smooth and quiet ride

Lift Kit Details:

• Coilover Option: FOX 2 5 Coilovers with DSC Adjuster
• Factory Control Arm Type: aluminum stamped steel
• Front Lift Height: 4"
• Front Lift Method: Cross Member
• Installation Difficulty: Difficult
• Installation Time: 8 Hrs
• Installation Tools: 36mm Socket, Cut-off wheel or similar reciprocating saw, Welder
• Rear Lift Height: 3"
• Rear Lift Method: Coil Springs
• Shocks Included: Yes

Please note:

• Frame bracket modification and welding are required.
• 20" wheels with 5" to 5-3/4" backspacing are recommended to reduce trimming.
• AWD models may require front driveline modification
• Factory 17" and 18" wheels cannot be used due to tie rod interference.

4-Inch Lift Kit w/ FOX 2.5 Coilovers for 2015-2019 Chevy/GMC Suburban, Tahoe, Yukon/XL 1500 4WD | SKU: BDS734FDSC
