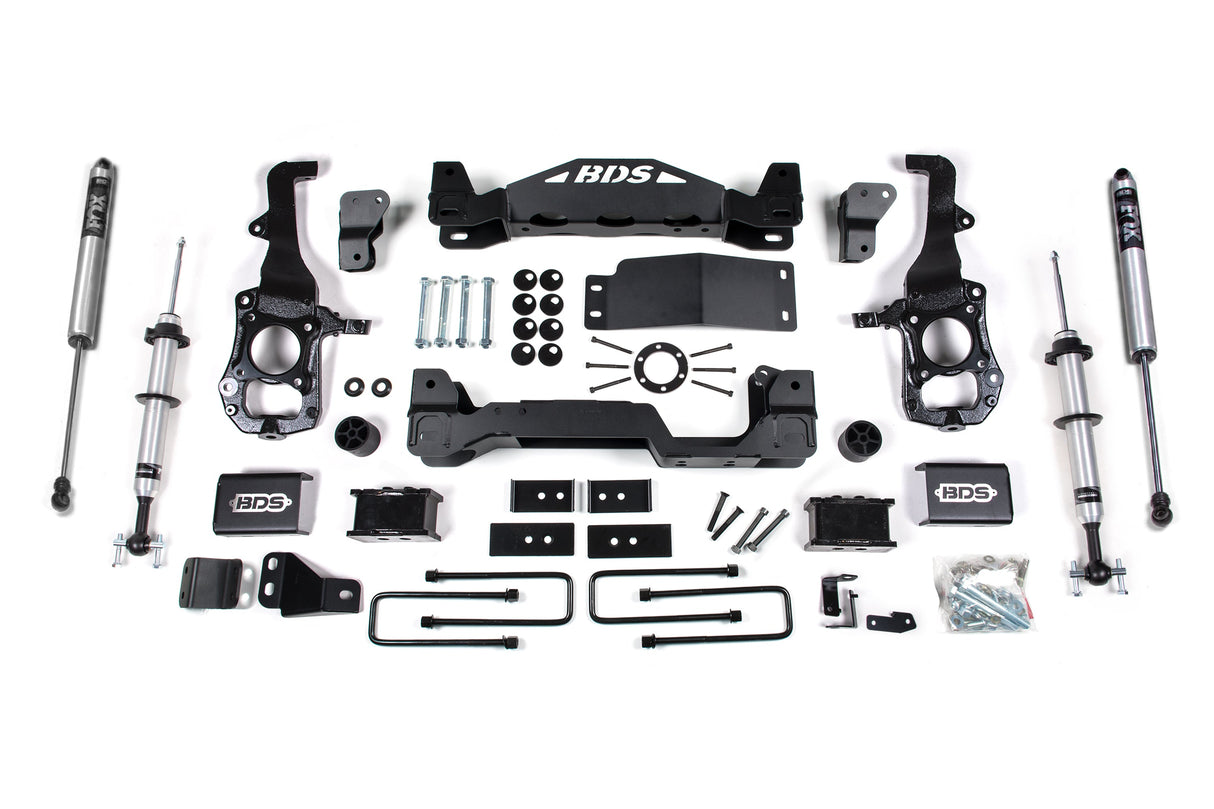

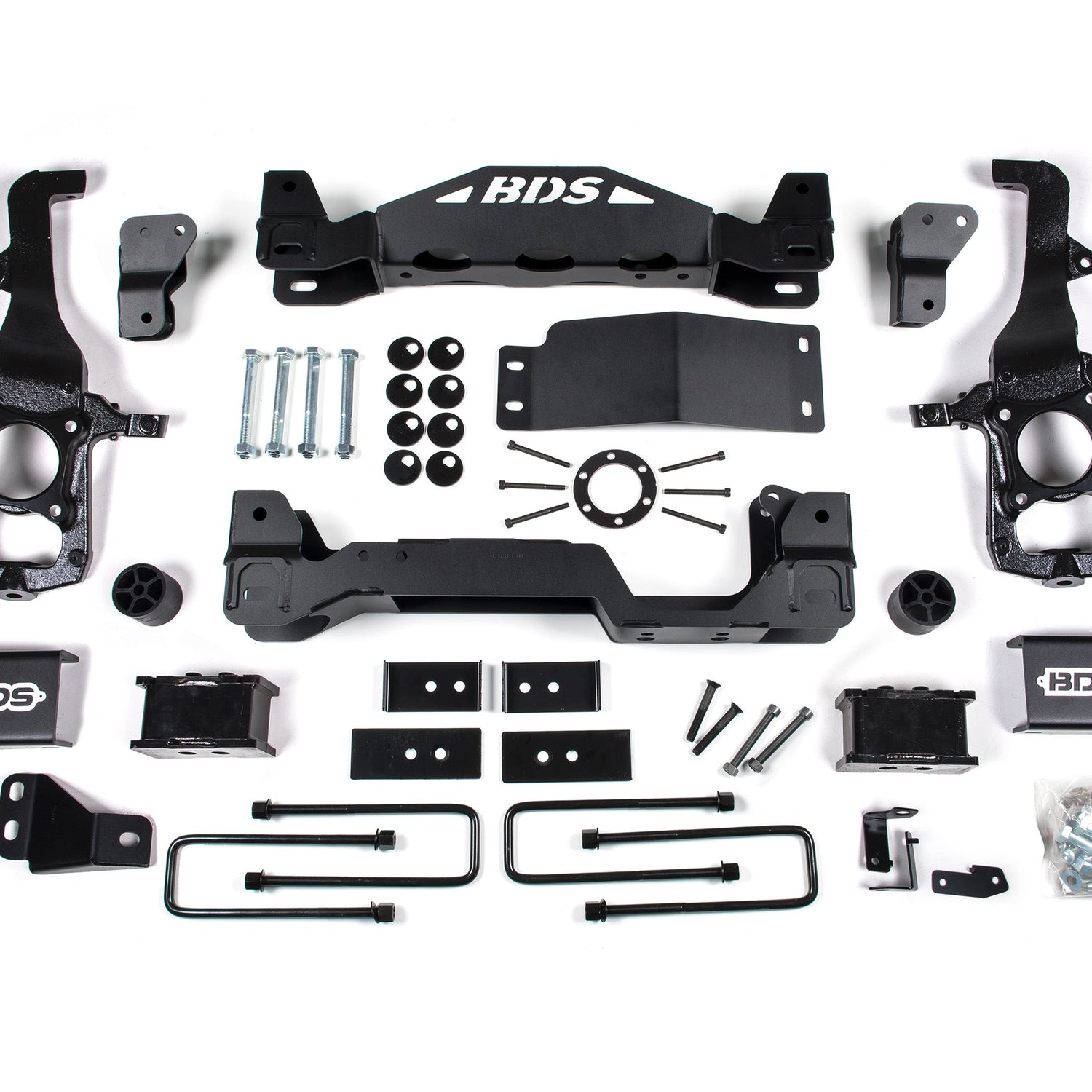

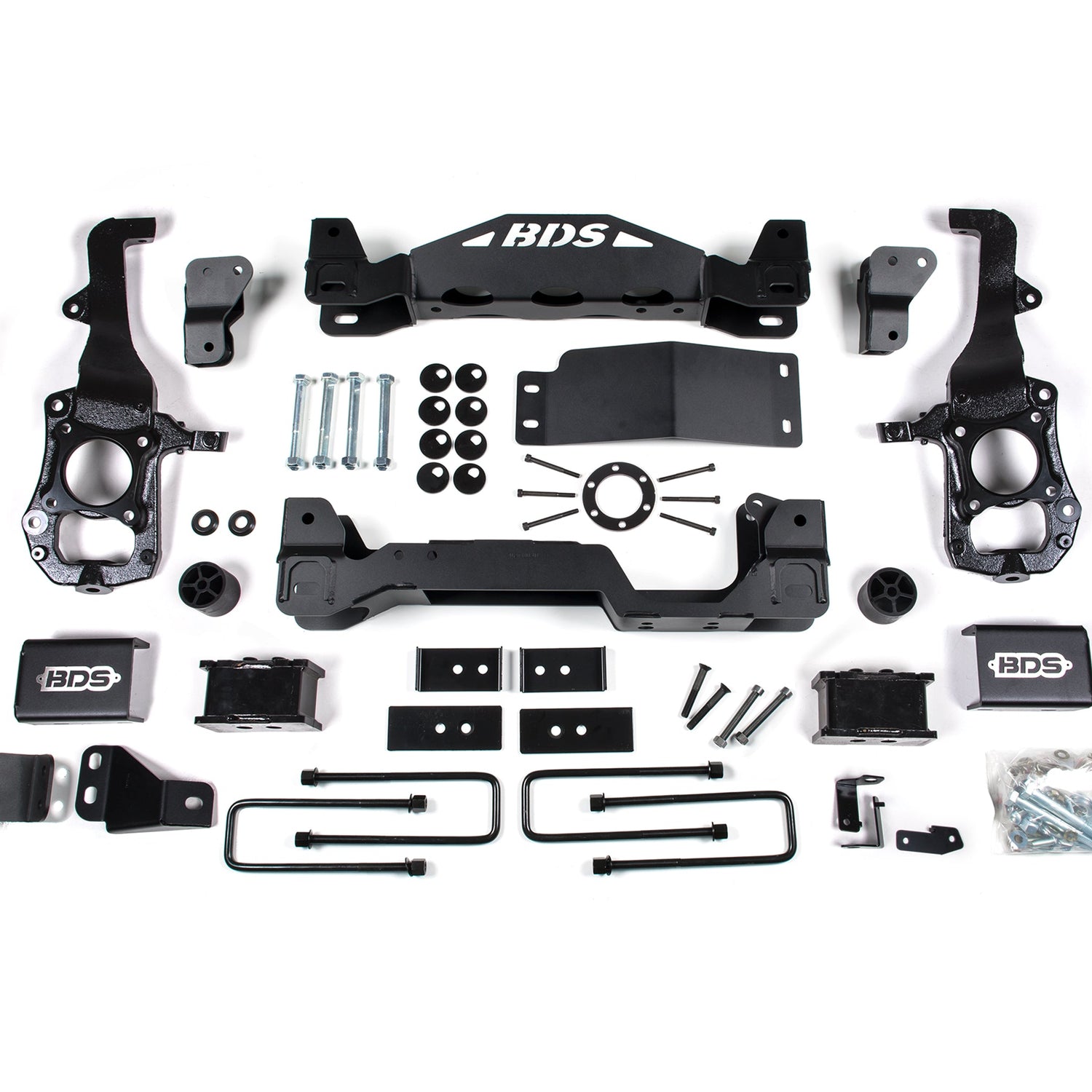

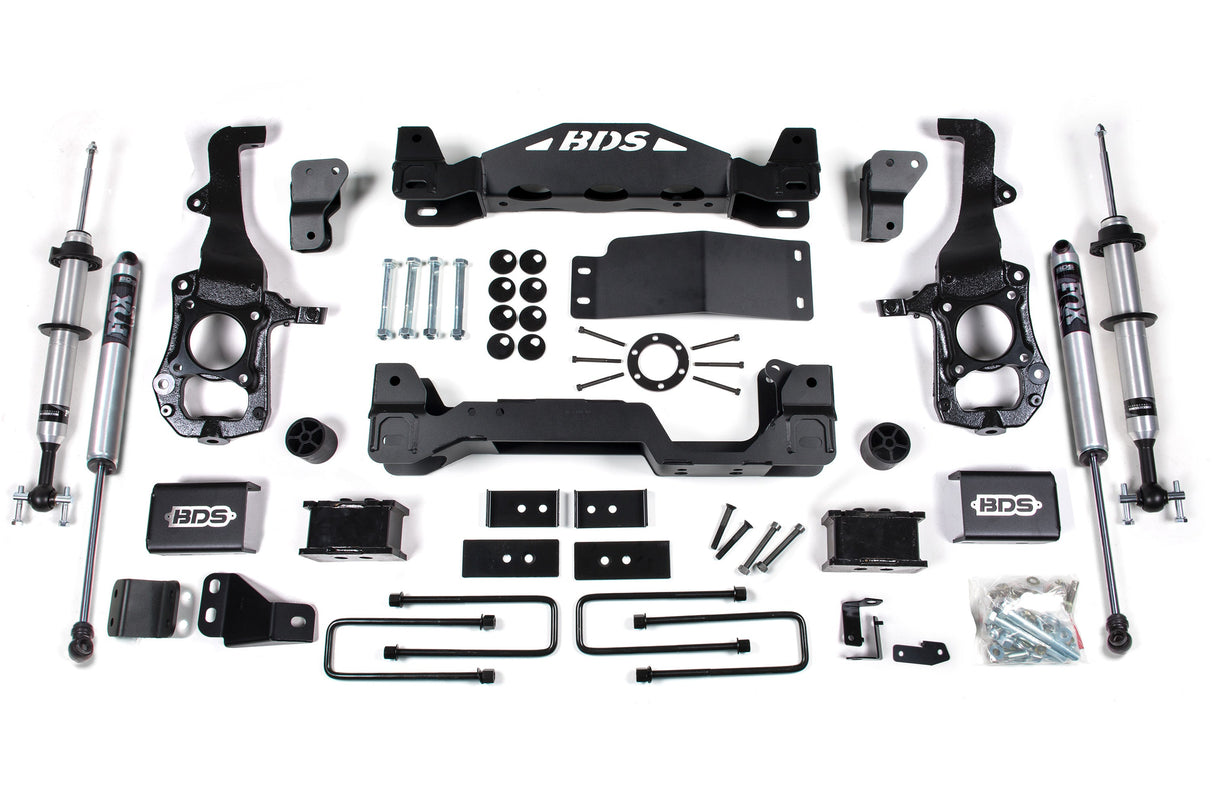

4-Inch Lift Kit - FOX 2.0 Strut for 2021-2024 Ford F-150 4WD
Description
Description
This kit includes all necessary parts for a proper setup with clearance for up to 35" tires. With high-arched steel crossmembers, differential relocation brackets, and a skidplate for added protection, this kit has it all. The massive CNC-machined ductile iron steering knuckles and other included components correct steering geometry for better handling. In the rear, high-strength fabricated lift blocks and longer u-bolts provide a lifted and level stance while NX2 Nitro or optional FOX 2.0 Performance Series shocks ensure a smooth ride. Trust in BDS Suspension to deliver a comprehensive lift kit that can handle any challenge thrown its way.
FOX 2.0 Struts
These FOX 2.0 Performance Series coil-over struts bring impressive damper performance for great ride on and offroad capability designed as a direct bolt-in replacement for the factory strut assemblies while retaining the OE coil spring and top plate. They feature a 2.0" extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, 5/8" hard chrome plated heat-treated alloy shaft.
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Features & Benefits
- FOX 2.0 Performance IFP shocks eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving
- High clearance crossmembers improve strength and offroad capability
- Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
- Top mounted strut spacers to provide lift and install easily
- Differential skid plate for improved offroad protection
- Rear lift blocks and u-bolts to lift and level the stance
Recommended Tires & Wheels
(Trimming may be required)
- 33 x 12.5 with 20 x 9 and 5 in. Backspace
- 35 x 12.5 with 20 x 9 and 5.5 in. Backspace
4-Inch Lift Kit - FOX 2.0 Strut for 2021-2024 Ford F-150 4WD | SKU: BDS1902FSR/BDS1583FSR
