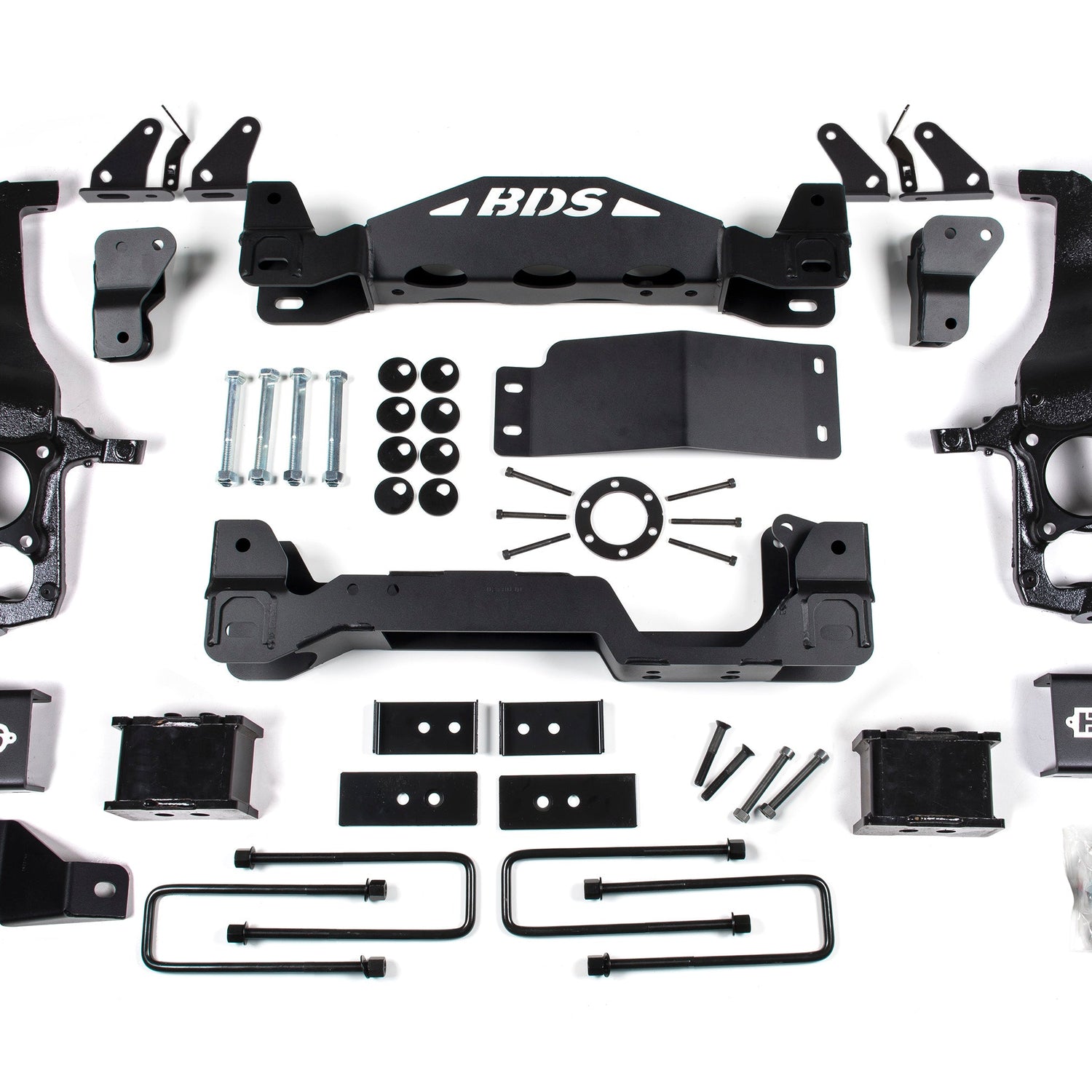

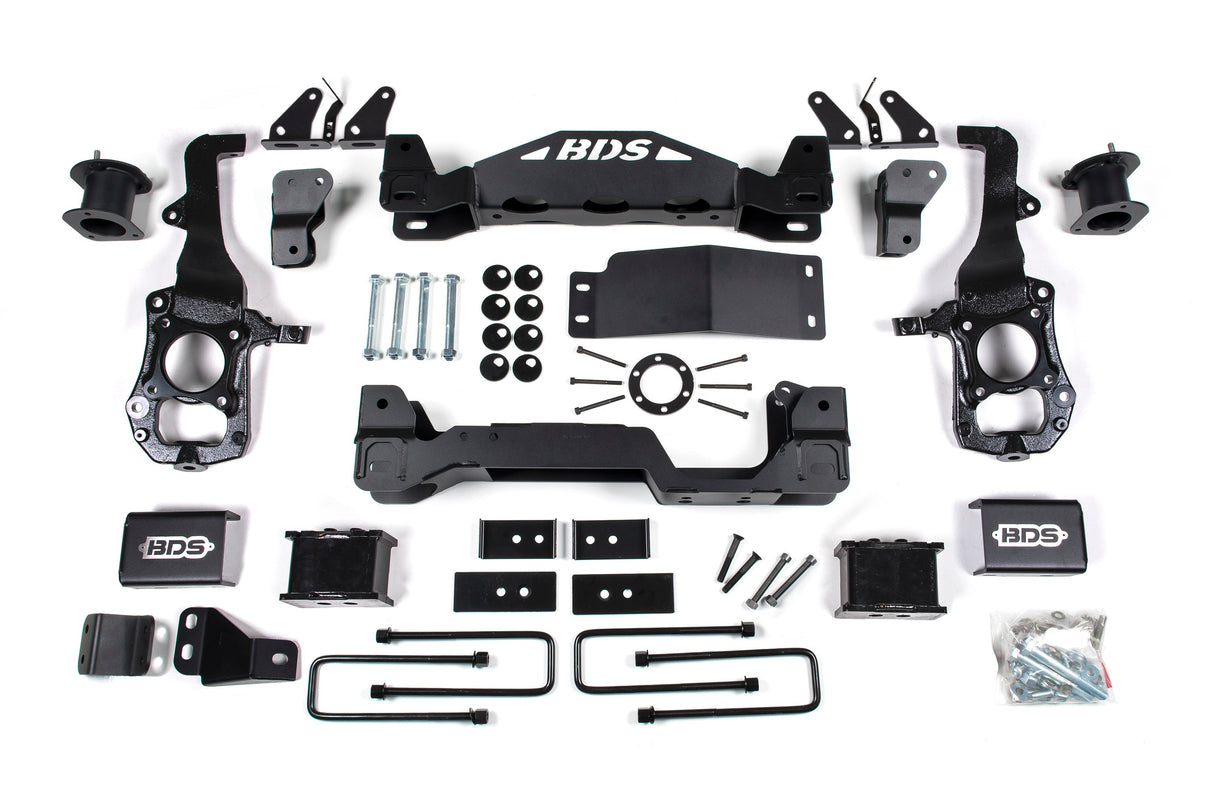

6-Inch Lift Kit - CCD Equipped for 2021-2024 Ford F-150 4WD
Couldn't load pickup availability
Can I pick up my order or have it installed at your shop?
Can I pick up my order or have it installed at your shop?
Yes! We offer local pickup on most products and professional installation at our shop at 25 Town and Country Drive, Washington, MO. 63390. Contact us at 636-429-7020 to schedule a time to come in.
How do I know if this part fits my vehicle?
How do I know if this part fits my vehicle?
If no fitment info is listed, contact us at 636-429-7020 with your vehicle’s year, make, and model — we’ll help you find the right part.
What if I need to return a product or it’s defective?
What if I need to return a product or it’s defective?
Most items can be returned within 30 days if unused and in original packaging. Many products also include a manufacturer warranty. Contact us at 636-429-7020 for assistance.
How can I track my order?
How can I track my order?
Once your order ships, you’ll get a tracking number via email to monitor your shipment.
6-Inch Lift Kit - CCD Equipped for 2021-2024 Ford F-150 4WD
Description
Description
Utilizing BDS's proven and tested high-clearance design, this kit offers improved ground clearance, strength, and offroad protection while also correcting suspension and steering geometry for optimal on-road handling. The front of the kit includes high-arched 1/4-inch thick steel crossmembers, top mounted strut spacers, multipiece differential relocation brackets, and a skidplate for offroad protection.
At the new taller ride height, steering geometry is corrected with a pair of massive CNC-machined ductile iron steering knuckles. Plus, the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, and hardware make for a complete front suspension lift that can handle
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Features & Benefits
- High clearance crossmembers improve strength and offroad capability
- Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
- Top mounted strut spacers to provide lift and install easily
- Differential skid plate for improved offroad protection
- Rear lift blocks and u-bolts to lift and level the stance
- Shock relocation brackets included to maintain CCD shock system
Recommended Tires & Wheels
(Trimming may be required)
- 37 x 12.5 with 18 x 9 and 5.5 in. Backspace
- 37 x 12.5 with 20 x 9 and 5.5 in. Backspace
- 35 x 12.5 with 20 x 9 and 4.5 in. Backspace
6-Inch Lift Kit - CCD Equipped for 2021-2024 Ford F-150 4WD | SKU BDS1961H
