11-16 FORD F250/F350 2.5" PINTOP 2.5 SYSTEM, BASE, GAS

11-16 FORD F250/F350 2.5" PINTOP 2.5 SYSTEM, BASE, GAS

Brand: Carli Suspension

SKU: CS-FLVL-PT25-11-GAS

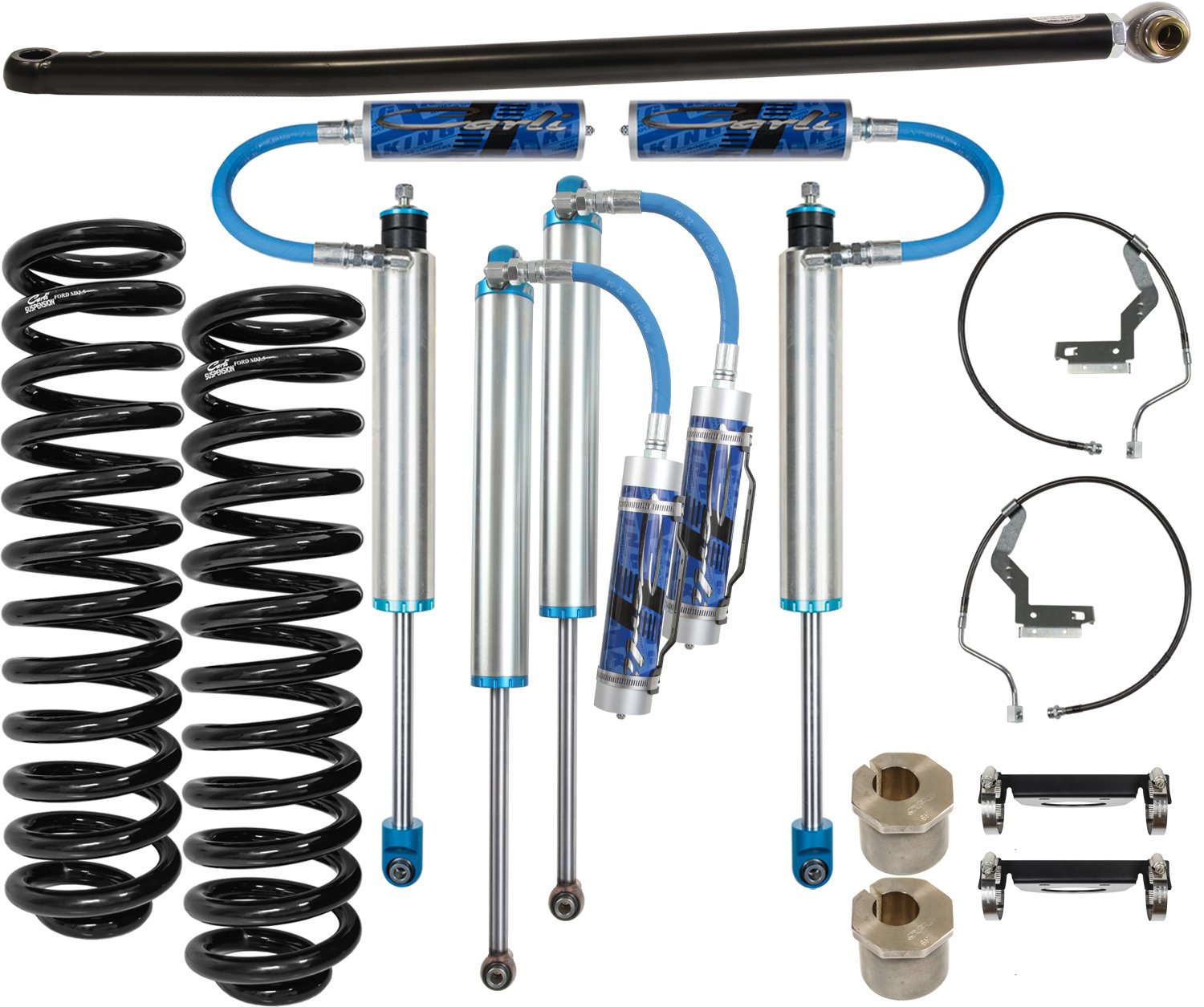

Our most popular system, the Pintop kit boasts 2.5", Remote Reservoir King Shocks. Designed and tuned in house for the customer looking for substantial on-road and off-road performance improvement. Customers can expect a softer ride, yet more control and bottom-out resistance than the Back-Country.

Shock Diameter - 2.5"
Lift Height - 2.5"
Tire Size - Up To 35"
Front Travel - 9"
Rear Travel - 13"

Base Kit Includes:

A “Base Kit” SKU must be accompanied by the SKU of a Leaf Spring option to form a complete system.

Kit Options:

Rear Leaf Options

Full Spring Pack +$
SKU: CS-FFSP-LVL-11

Full Spring Pack +$
SKU: CS-FFSP-LVL-11-HD

Radius Arms Option

Radius Arms for 2.5in Lifts +$
SKU: CS-FFRA-LVL-05

Add Steering Stabilizer

Add Steering Stabilizer

High Mount Steering Stabilizer +$
SKU: CS-FHMSS-08

High Mount Steering Stabilizer +$
SKU: CS-FLMSS-05

Description:

The Backcountry on steroids, take the description for the Backcountry and throw an exponent on it. This system is our most popular, all around suspension system. For quite a while, this system dominated. While the Coilover and Coilover Bypass Systems existed, we continued to run the Pintop 2.5” and 4.5” lift systems on our personal trucks as there wasn’t much reason to upgrade a rig that wasn’t a dedicated off-road truck. The on road ride is terrific, sharp edges are rounded and light to medium duty offroad escapades become completely controlled and uneventful. Most Carli videos were filmed with the Pintop kit showcasing the extremes of its capability.

The Pintop is a Jack-of-all-trades system from which every Super Duty owner would benefit. Raising the Super Duty Platform then adding the 2.5” diameter shocks (55% more piston surface area than a 2.0” shock) will support the argument that these trucks should come equipped with 2.5” shocks from the factory. The higher end systems will get you more off-road capability, yes, and even a bit more on-road. The premium paid for these systems; however, doesn’t compare to the on and off-road ride quality per dollar spent on the Pintop. For these reasons, it will likely remain our best seller for years to come.

The Pintop system boasts Carli specific, blueprinted, King 2.5” shocks on all four corners. In an effort to provide customers with the best product, we designed a custom piston to determine proper base flow rates to ensure the shock works well in the heavy duty truck platform; we then tuned the shocks around the custom pistons based on the only thing that matters to us, seat-of-the-pants feel. We round off ALL our King shocks with shafts machined and polished from a solid piece of 17-4 Stainless. Unlike King’s standard shafts, there is no coating to wear off, weather can’t hurt them and if there is a small chip, you can round the edges with emery cloth to ensure the seal housing isn’t damaged as they’re not brittle like the stock, hardened shafts. The shocks are finished with King oil good to -55° F. Note that all King shocks are built with a plated steel body. If subjected to inclement weather for extended periods, we recommend wrapping your shocks in 3M to provide a moisture barrier that’s replaceable.

The truck will sit 2.5” higher in the front and have more wheel travel thanks to the lighter rate Carli Coil Springs. The included Adjustable Track Bar centers the front axle and Stainless Brake Lines firm up braking and ensure there is enough line for the newfound travel. To round off the front end, we include Caster Shims to tighten the steering.

The rear can be outfitted with a replacement Full Progressive Spring Pack (reduces capacity to a “light” ¾-ton) or factory leaf-pack modifying Progressive Add-a-Pack (maintains factory payload capacity and pairs with the factory 2” block). This is where the F250 and F350 are a bit different. Since 2008, the main spring packs on these two trucks is different; the F250 has a lighter rate spring pack than its 350 counterpart. The F250 Add-a-Pack equipped systems are a nice improvement over stock; the F350 with the Add-a-Pack is still very stiff in the rear as the main pack doesn’t move much unless loaded. We recommend the Full Replacement Leaf Spring packs for both trucks but especially the F350 given the super-stiff factory springs. If capacity is a concern, an aftermarket airbag system should be installed to compliment the Full Progressive Leaf Springs to restore the F350 capacity.
