CSS-C1-13 CST 14-18 Chevy / GMC 1500 2wd 3.5-5.5″ Fabricated Lift Spindle (O.E. Cast Alum./Stamped Steel)
Description
2014-18 GM/CHEVY 2WD, SILVERADO/SIERRA 1500 TRUCKS / CSS-C1-13
(Cast-Aluminum OR Stamped Steel O.E. suspensions only)
THIS LIFT SPINDLE KIT INCLUDES EVERYTHING NEEDED TO PROVIDE UP TO 5.5 INCHES OF LIFT TO THE FRONT OF THE 2014-18 GM/CHEVY 1500 2WD SILVERADO AND SIERRA PICKUPS WITH STEEL O.E. SUSPENSION!
*REAR LIFT & SHOCKS SOLD SEPARATE*
THIS KIT ALLOWS THE INSTALLER THREE HEIGHT OPTIONS FOR ONE ECONOMIC PRICE. 3.5†SPINDLES ONLY, SPINDLES AND 1†COILOVER SPACERS FOR A 4.5†LIFT TO CLEAR 33†TIRES OR SPINDLES AND TWO SPACERS FOR A 5.5†LIFT TO CLEAR 35†TIRES! (ON 8-8.5″ WIDE WHEELS)
CSS-C1-13 KIT FEATURES
- LIFT SPINDLES ARE CONSTRUCTED OF PRECISION LASER CUT 1/4″ STEEL, CNC MACHINED BALL JOINT TAPERS, AND COMPLETELY MIG WELDED.
- ENGINEERED, DESIGNED & FABRICATED IN HOUSE BY CST.
- 2 PAIRS OF SPACERS INCLUDED IN THE KIT TO PROVIDE SEVERAL LIFT HEIGHT OPTIONS.
- STEEL BRAIDED D.O.T. APPROVED BRAKE LINES INCLUDED IN KIT.
- O.E.M. HANDLING & RIDE QUALITY.
- MINIMAL TRACK-WIDTH CHANGES.
- HIGH GROUND CLEARANCE.
- SELF CONTAINED FRONT KIT.
- ALL MADE IN THE U.S.A.!Â

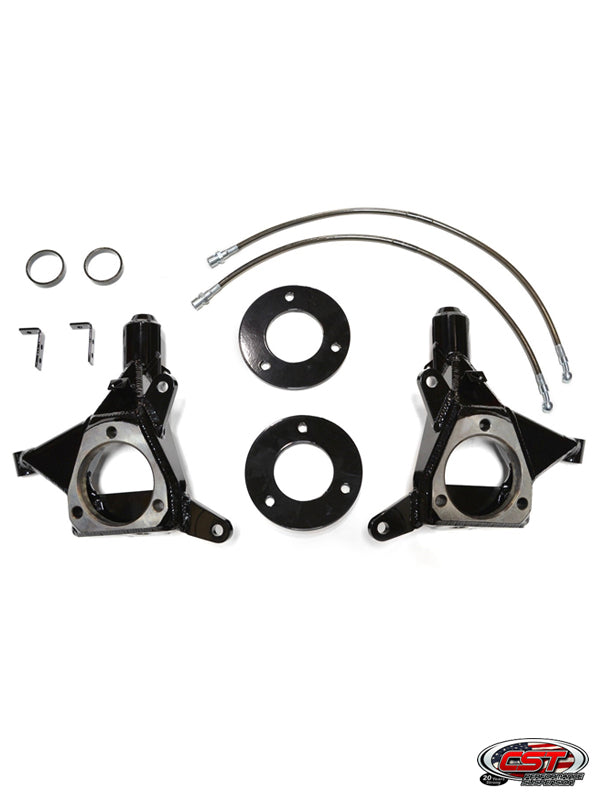

CSS-C1-13 INCLUDES FABRICATED 3.5″ LIFT SPINDLES, 2 SETS OF SPACERS, STEEL BRAIDED BRAKELINES AND NECCESSARY INSTALL HARDWARE. THE CSS-C1-13 SPINDLE LIFT KIT WILL LIFT THE FRONT END ONLY.
ADDITIONAL OPTIONS
CSB-C14-3 | 3″ FABRICATED LIFT BLOCKS (PICKUP REAR)
CSU-C15-10.5 | 10.5″ U-BOLTS (PICKUP REAR)
CSR-3500 | 2-3″ CST DIRT SERIES 2.5 EXTENDED TRAVEL COIL-OVERS
CSA-5530 | CST DIRT SERIES 2.0 REAR SHOCKÂ
CSA-6530 | CST DIRT SERIES 2.0 REAR SHOCK w/ RES.Â
Â
SUGGESTED WHEEL & TIRE SIZES
2014+ 1500 2WD
- 32†x12.5†OR SIMILAR ON 8†WIDE WHEELS (3.5†LIFT)
- 33†x12.5†OR SIMILAR ON 8-9†WIDE WHEELS (4.5†LIFT)
- 315 / 70 / 17 ON 8 OR 9†WIDE WHEELS (5.5†OF LIFT)
- 35†X12.5†ON 8†WIDE WHEELS (TRIMMING REQUIRED / 5.5†LIFT)
- ANYTHING LARGER, TALLER OR WIDER IS BEYOND CST RECOMMENDATIONS AND UP TO THE INSTALLER.
- MAXIMUM BACKSPACING IS 5â€
