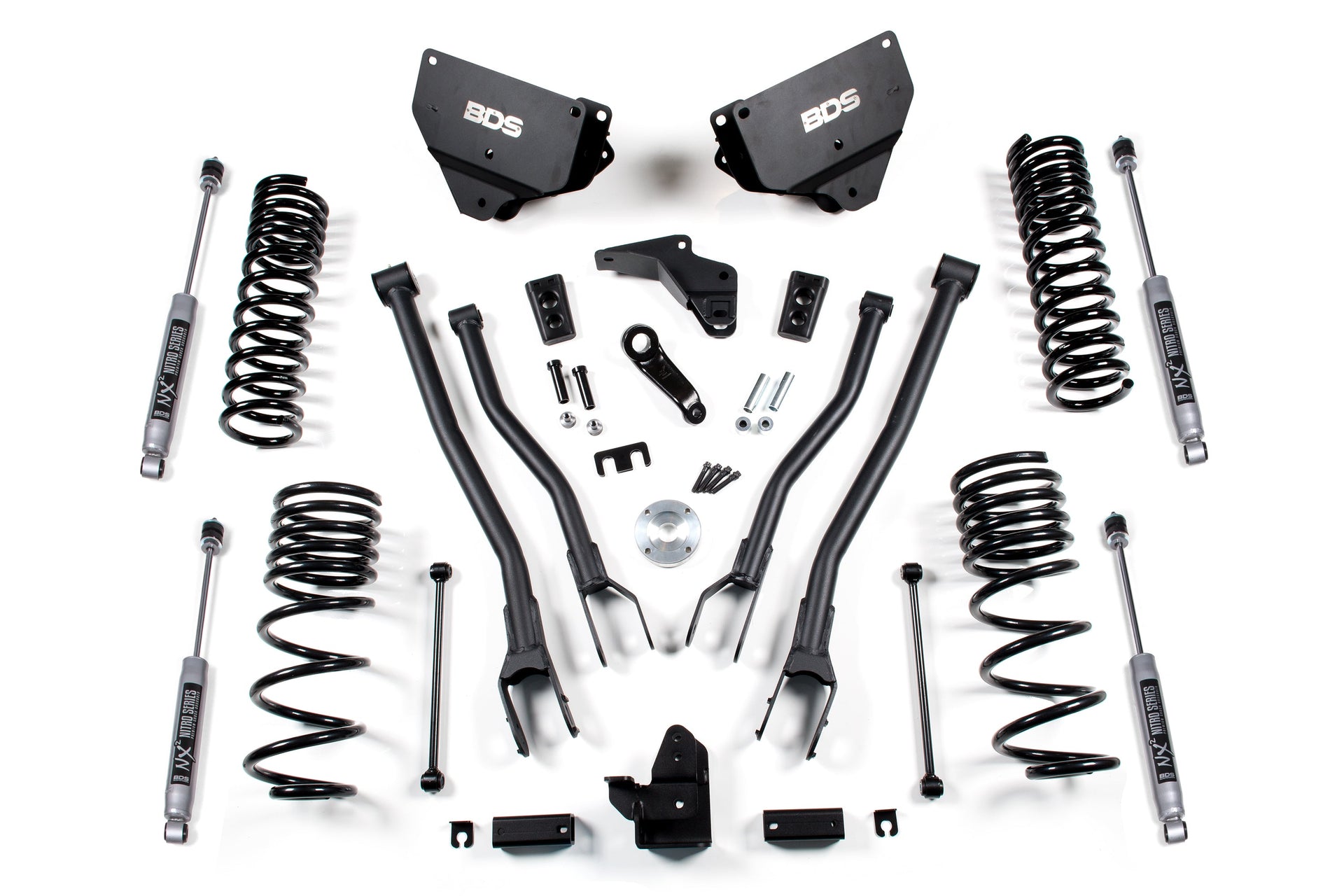

4-Inch Lift Kit w/ 4-Link for 2014-2018 Dodge Ram 2500 4WD Gas
Description
Description
With the 4-Inch Lift Kit w/ 4-Link for 2014-2018 Dodge Ram 2500 4WD Gas, BDS Suspension has created a high-performing option that is sure to impress. This kit is designed to enhance your truck's stance, performance and capabilities, and includes everything you need to achieve clearance for up to 35" tires.
The kit features such as gas-specific Pro-Ride coil springs, 4-Link control arms, a forged drop pitman arm, and precision-tuned NX2 or FOX 2.0 shocks, plus it provides all the necessary components for a successful installation.
The progressive rate Pro-Ride coil springs, track bar relocation bracket, bump stop extensions, sway bar links, and matching NX2 Nitro or FOX 2.0 Performance shocks make the rear of your truck just as capable as the front. Trust BDS Suspension to deliver an approachable, casual, and friendly kit that will surely enhance your driving experience
4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Shock Option
NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish

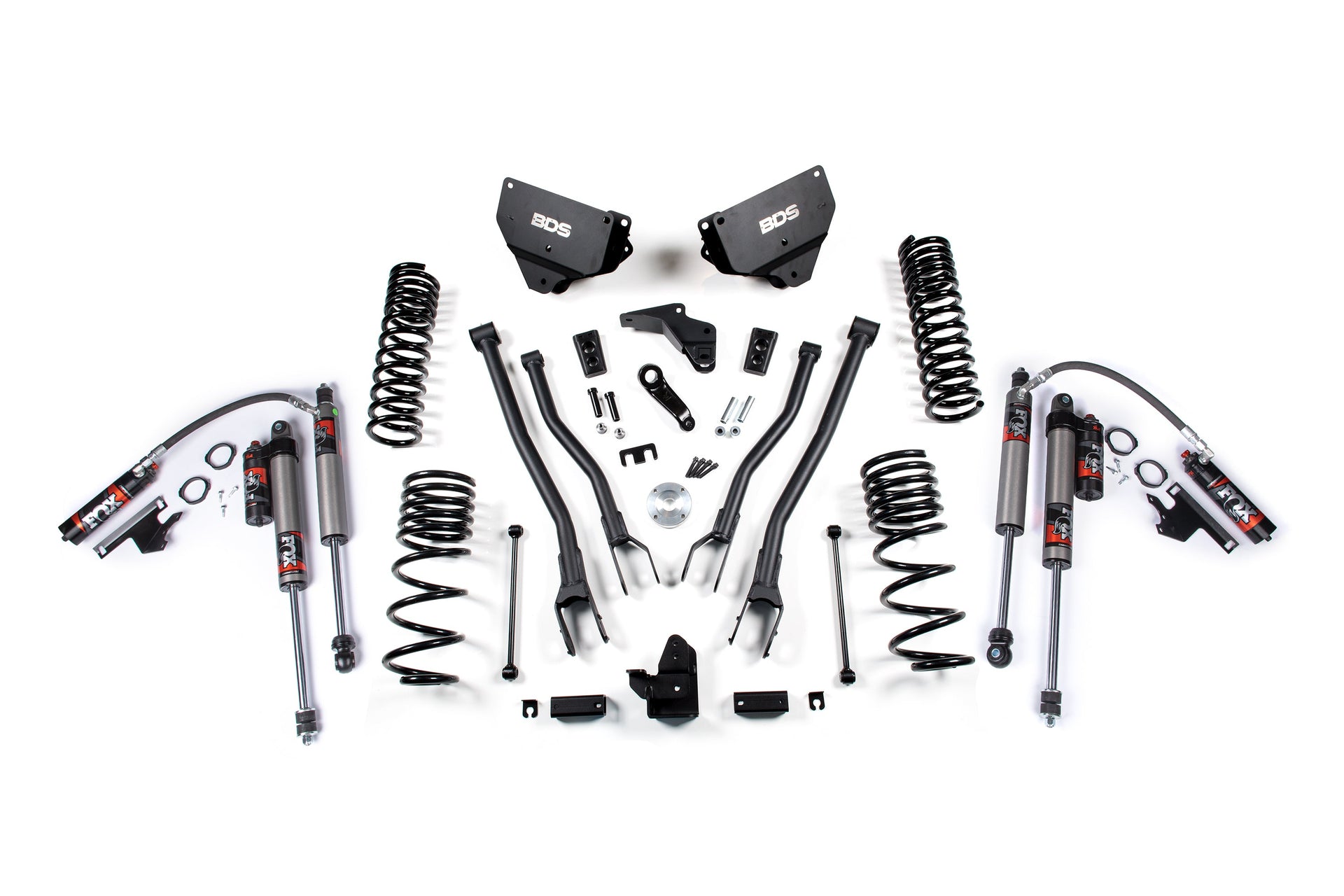

FOX 2.5 Performance Elite Series
- Increased off-road capabilities
- Easily adjust your shock for terrain, load and speed
- 2.5-inch Impact extruded aluminum body
- Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
- External reservoir design separates shock oil from the high-pressure nitrogen
- DSC - Dual Speed Compression Adjuster comes standard
- Fully serviceable for a lifetime of use
- 1-year Manufacturer's Warranty
Features & Benefits
- Heavy duty 4-link arms improve strength, handling and caster control
- High strength progressive rate coil springs for a great ride on any terrain
- Track bar relocation brackets to re-position axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
- BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
Recommended Tires & Wheels
(Trimming may be required)
- 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
- 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
- 37 x 13.5 with 17 x 9 and 5.625 in. Backspace
4-Inch Lift Kit w/ 4-Link for 2014-2018 Dodge Ram 2500 4WD Gas | SKU BDS1611FS/BDS1611FPE/BDS1611H
