FASS Motorsports ULTIMATE Leveling Package for 2003-2012 Ram 2500/3500

The FASS Motorsports ULTIMATE Leveling Package is an all-in-one, premium leveling kit for your 2003-2012 Ram 2500/3500!

Make no mistake—this isn't your standard leveling kit.

The FASS Motorsports ULTIMATE Leveling Package combines hand-picked, world class parts to give your Ram the best ride and most badass appearance possible with a 3" lift.

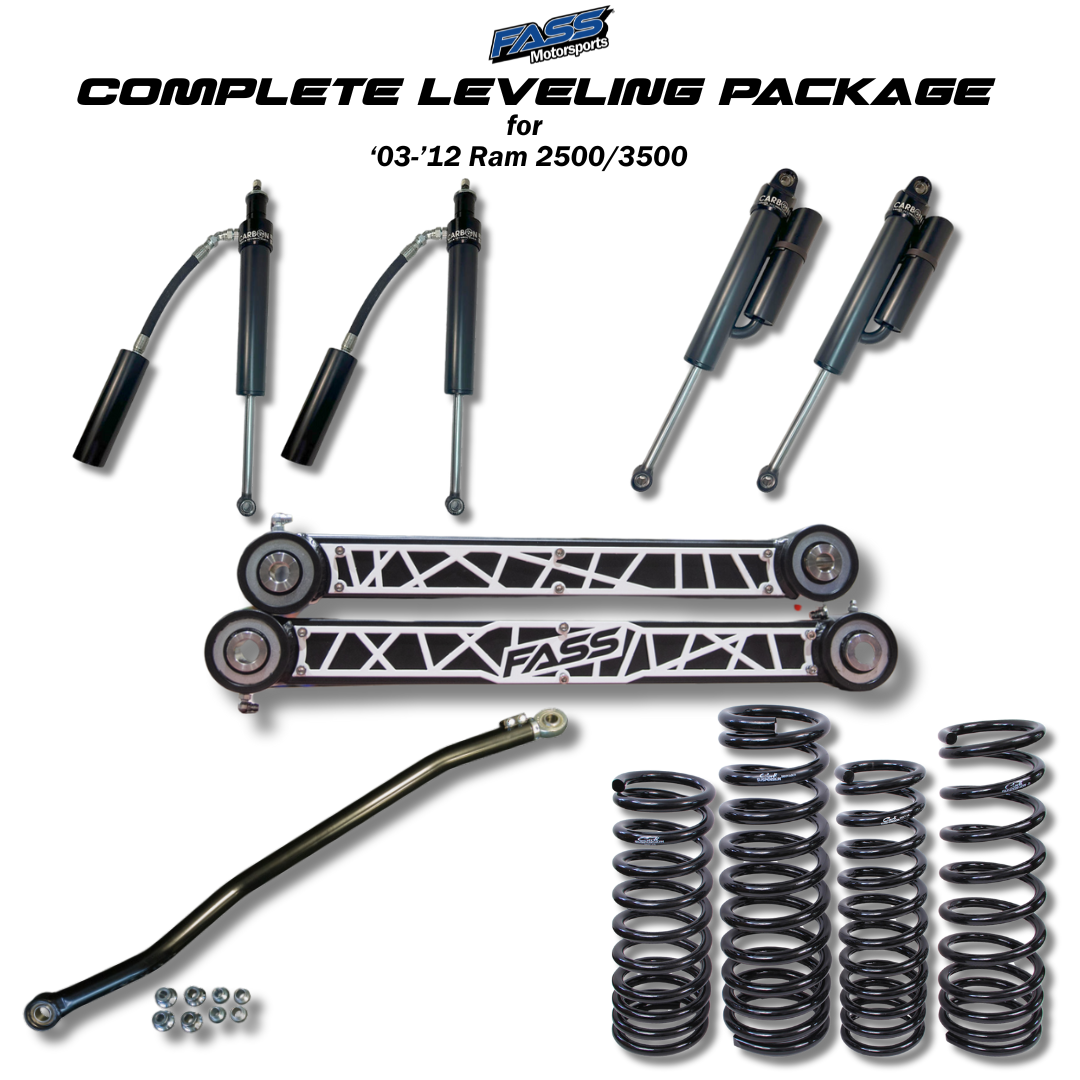

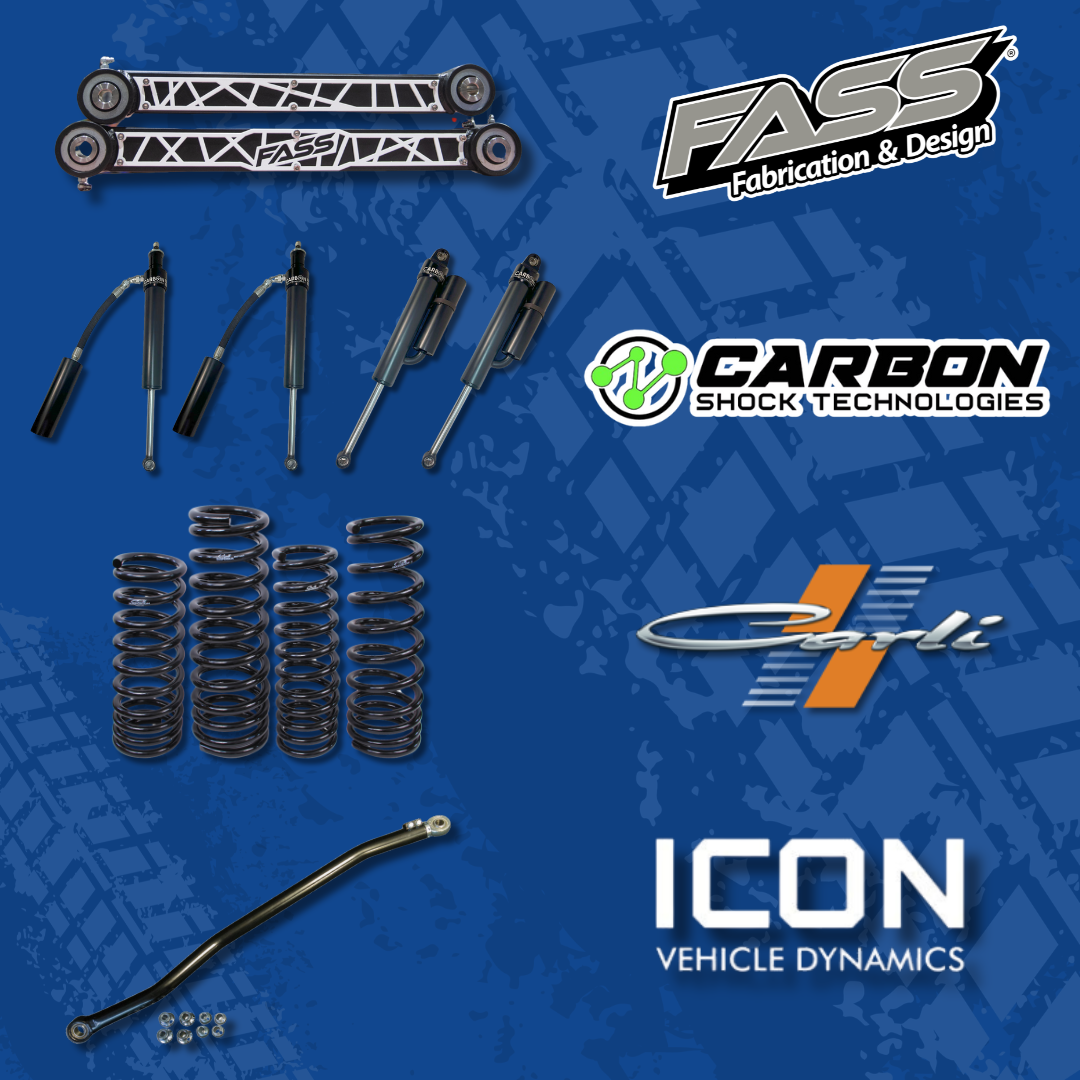

The FASS Motorsports ULTIMATE Leveling Package includes:

• FASS Fabrication extended control arms in your choice of color*

  • Custom colors available for additional fee.
• Carli Suspension Front Coil Springs (3" LIFT) for 2003-2012 RAM 2500/3500
• ICON Vehicle Dynamics Front Adjustable Track Bar for 2003-Current Dodge Ram 2500 / 3500
• Carbon Shocks Front Shocks for 2003-2013 Dodge Ram 2500/3500
• Carbon Shocks Rear Shocks for 2003-2013 Dodge Ram 2500/3500



FASS Fabrication Control Arms for 2003-2012 Ram 2500/3500

The FASS Fabrication Extended Control Arms are designed for superior strength, durability, and performance, making them a perfect upgrade for your 2003-2012 RAM 2500/3500 suspension system.

Key Features:

• Heavy-Duty Construction - Built from 1” x 2” x .120” wall rectangular tubing for maximum strength and rigidity. Precision fixtures and robotically welded to ensure consistent quality and durability.
• High-Quality Joints - Features 2” spherical joints on each end, manufactured in-house for superior articulation and longevity.

• Reinforced Design - Comes standard with overlays for added strength and a high-quality finish.


Carli Suspension Front Coil Springs (3" Lift) for 2003-2012 Ram 2500/3500

• 2.75″-3″ Lift Height Depending on Cab Configuration
• Linear Rate
• Shot peened, pre-set & Powder Coated
• LONG ARM EQUIPPED 2003-09 Ram 2500/3500 4×4, Diesel (3-3.5″ Lift)
• 2003-12 Ram 2500, 2003-12 3500 4×4, Diesel


In Carli's multi-rate springs each coil is spaced differently making them a variable spring rate. Initially it is easy to compress these springs for the first couple of inches. As you apply more force, the coils come closer to each other.

After a certain point, the coils at the bottom 1/4 of these springs begin to touch each other and finally become inactive or dead, which makes the spring stiffer.

The more force you apply to Carli's multi-rate spring the more the rate increases. So, these springs are compliant to very small bumps on the road, while achieving control when needed off-road, hard braking, and turning.

These springs allow you to achieve the highest performance while driving hard and providing a smooth, comfortable drive the rest of the time.

The ICON Vehicle Dynamics Front Adjustable Track Bar for 2003-Current Ram 2500/3500

Helps eliminate the notorious "death wobble" these Dodges have when you begin to adjust the truck's ride height. This bar will work on Stock trucks, trucks lifted 1-3, and 4-6 inches of lift when using a pan rod bar drop down bracket.

The upgraded ICON Dodge 2500 / 3500 adjustable pan rod bar is great for centering the front axle allowing it to track perfectly under the truck vs. offset to the side. This bar is constructed of 1/4" Inch Wall 1 1/2" Inch DOM Tubing and is CNC Bent for a precise OE style fit.

The weak OEM rubber bushing is eliminated and our 1 Inch captured uniball bearing on the driver side minimizes overall deflection while allowing just enough movement so steering wheel feedback is not present.

We use a PTFE lined RMX12T rod end on the passenger side which also reduces deflection and threads into our left/right adjuster that allows easy on truck adjustability for the perfect front end alignment.

• Minimal to no deflection
• Easy install into OEM mounts w/ application specific hardware
• On vehicle adjustable for precise track alignment
• Utilizes a 1" uniball on the driver side and PTFE lined rod end on the passenger side
• Constructed with CNC machined and bent 1 1/2" x .250 wall 1026 seamless DOM tubing
• Allows for full suspension articulation without binding

Carbon Shocks Front and Rear OEM Shocks for 2003-2013 Ram 2500/3500

Sold in Pairs - Remote Reservoir Non-Adjustable

Front Lift Height:

• 2” – 3.5”

Rear Lift Height:

• 0" - 1.5”
