PMF Ford AXLE SWAP/CONVERSION S/S Braided Brake Lines 1999-2000 F-250/350 +10" Over Stock Red

THESE ARE CUSTOM BUILT TO ORDER WITH AROUND A 4-6 WEEK LEAD TIME.  ONCE THE ORDER IS PLACED, IT CANNOT BE CANCELLED NOR MODIFIED!!!

CHASSIS YEAR (Includes Main Chassis Lines From Frame to Axle)

1999-2000 F-250/350 (3 Lines)

YEAR OF AXLES

1000-2004

LENGTH OVER STOCK

+10" (+$16.00)

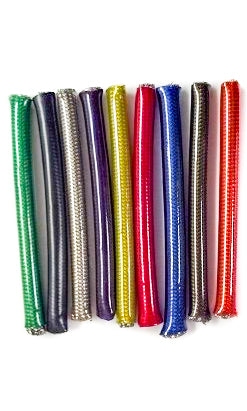

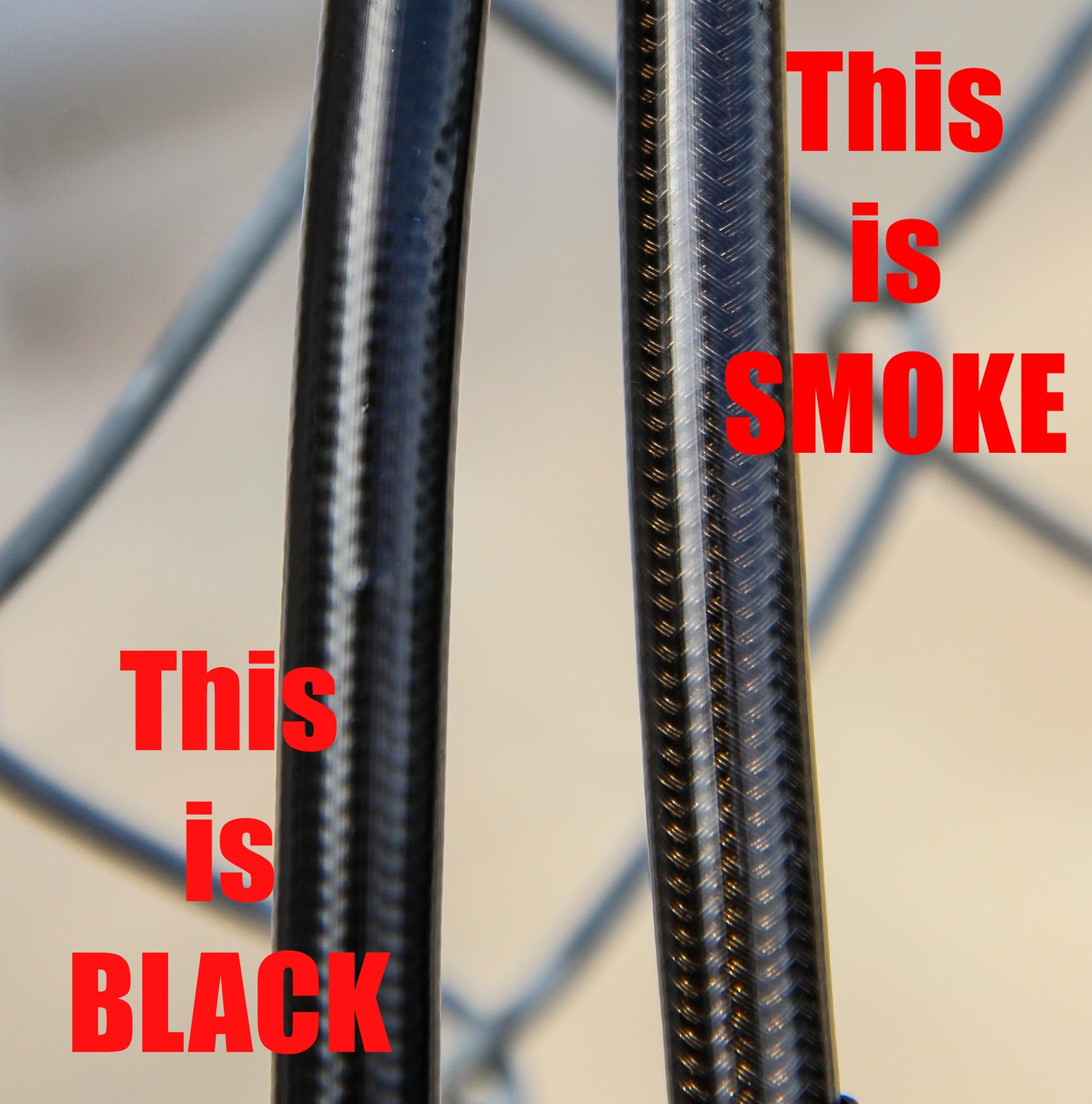

Color

Red *4-6 weeks to ship out

Optional Rear Axle Outer Caliper Lines (+2 Lines)

1999-2000ish Rear Axle Outer Caliper Lines; Driver Caliper on Front Side of Axle (+$74.99)

When it comes to brakes, a sacrifice is not worth you or your family's safety.  All of our brake lines are built for us with nothing but top of the line components.  The multi-layer composition of our lines eliminates all swelling of the line during braking.  This creates a firmer pedal, better stopping power, and less stopping distance.  This is especially important for lifted applications where larger tires and wheels put more stress on braking components.

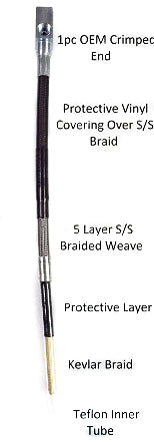

All of our brake lines feature:

• 5-Layer Stainless Steel Braid
• Kevlar Reinforced
• Teflon Inner Core Hose
• 1pc Steel Fittings
• DOT Certified
• OEM Direct Fit
• Compatible With All Types of Brake Fluid

These are listed as length over stock.  Long travel or systems with addition droop should order additional length lines to accommodate this.  We can custom make any length line you would like for an additional cost.

Every single line is Hydrotested to 4,500 psi for 1 min.  Standard rated working pressure is 1,750 psi with a 7,000 psi burst pressure.

***These lines are designed for 4x4 applications***

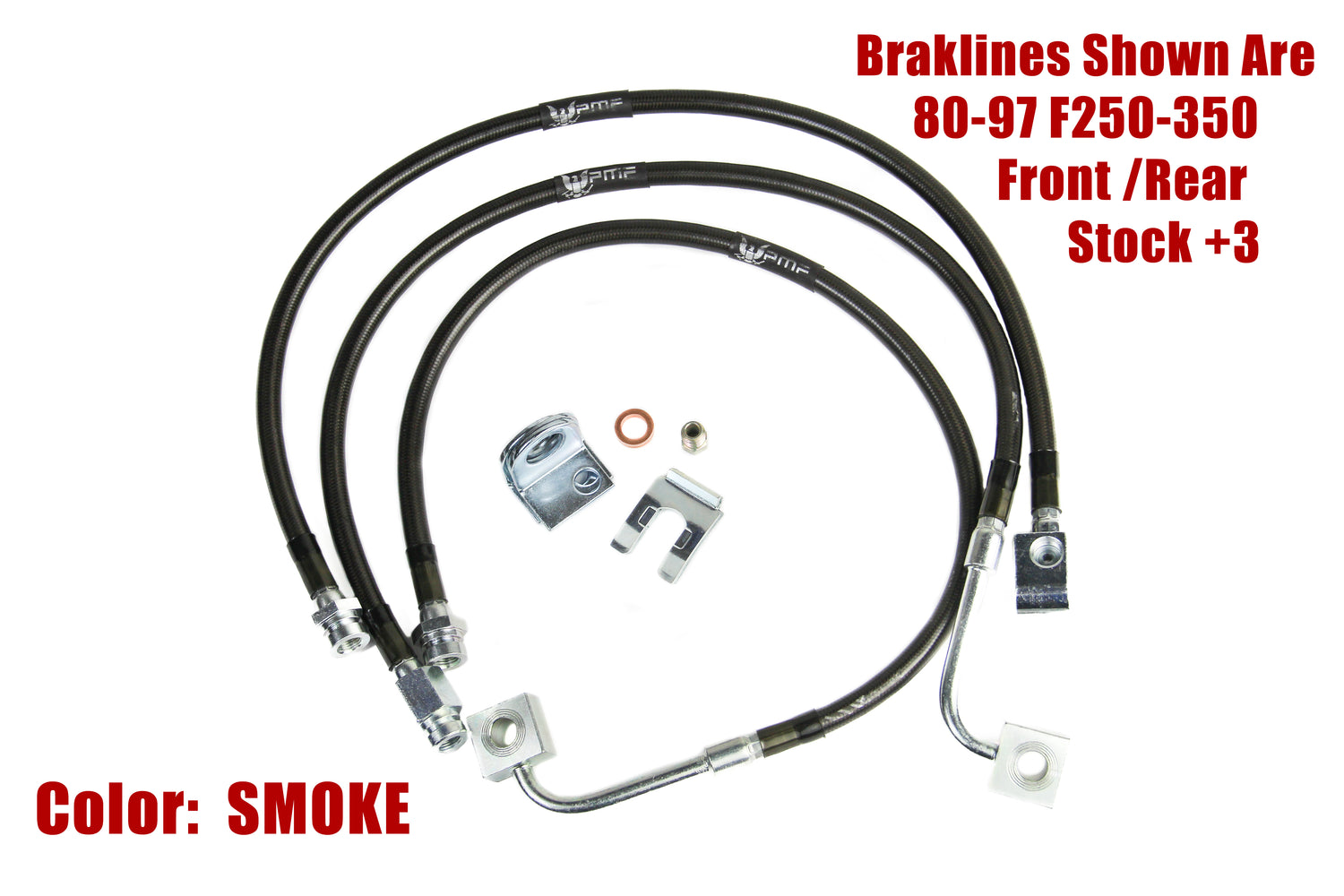

THESE ARE FRONT AND REAR COMPLETE KITS.  KIT INCLUDES 3 LINES UNLESS OTHERWISE NOTED.  THESE 3 LINES CONSIST OF THE FRONT L/R FROM THE FRAME TO THE CALIPER, AND THE REAR LINE FROM THE FRAME TO THE T BLOCK ON THE TOP OF THE AXLE.

THESE ARE CUSTOM BUILT TO ORDER WITH AROUND A 4-6 WEEK LEAD TIME.  ONCE THE ORDER IS PLACED, IT CANNOT BE CANCELLED NOR MODIFIED!!!

PMF-SBK-CNV-99SD-10-RD-RLL
