When removing and reinstalling the turbochargers on an EcoBoost, many of the gaskets need to be, or should be replaced. The Turbo Install Kit is a collection of the seals and gaskets required to do this, including the turbocharger inlet gasket, outlet gasket, coolant line seal bushings, coolant and oil line o-rings, and one-time-use turbocharger bolts and studs. Each kit contains enough part to complete the installation for both turbochargers, adding simplicity to an EcoBoost manifold or turbocharger installation!
NOTE
- Replaces Turbo Bolt OEM Part #'s: W715673S900, W719737S900
- Replaces Turbo Gasket OEM Part #'s: HL3Z-9450-A, HL3Z-9448-C, JL3Z-9450-A

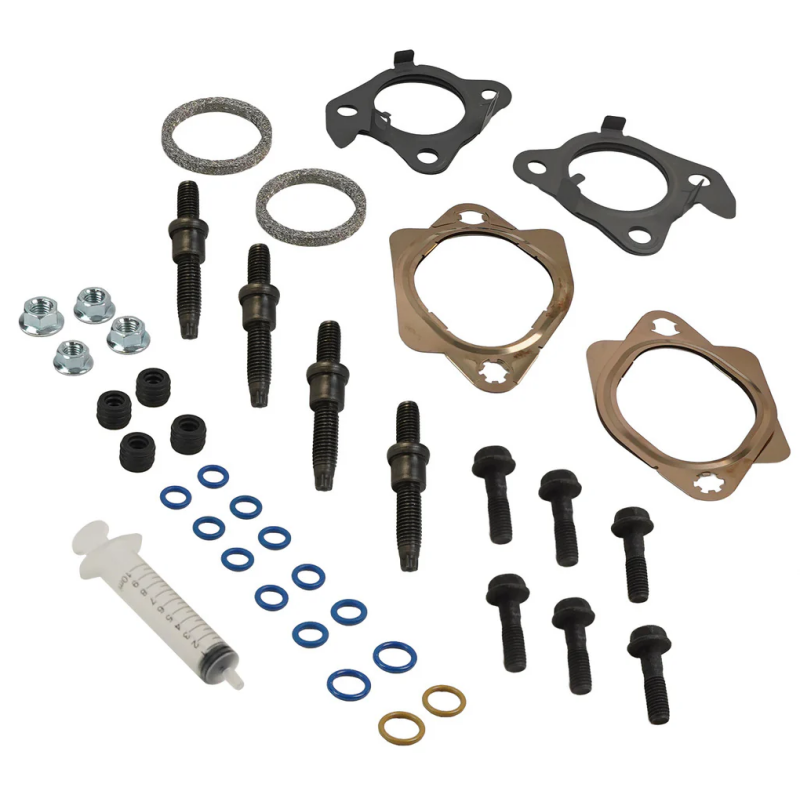

Kit Contents
- Turbocharger inlet gasket for 2017 model year (x1 Left side, x1 Right side)
- Turbocharger inlet gaskets for 2018-20 model years (x1 Left side, x1 Right side)
- Turbocharger outlet gasket (x2)
- Coolant line seal bushings (x4)
- Coolant and Oil tube O-rings (x10)
- Oil Drain O-rings (x4)
- Downpipe Studs (x4)
- Downpipe Nuts (x4)
- Turbo Mounting Bolts (x6)
