5.5-Inch Lift Kit w/ 4-Link for 2019-2024 Dodge Ram 3500 w/ Rear Air Ride 4WD GAS

Elevate the stance and capability of your 2019–2024 Ram 3500 gas truck with factory rear AIR, using the BDS 5.5" Lift Kit featuring a strength-boosting 4-link system.

Designed for maximum performance, suspension articulation, and clearance for up to 37" tires—all while maintaining rear air ride functionality.

Why Choose This Kit?

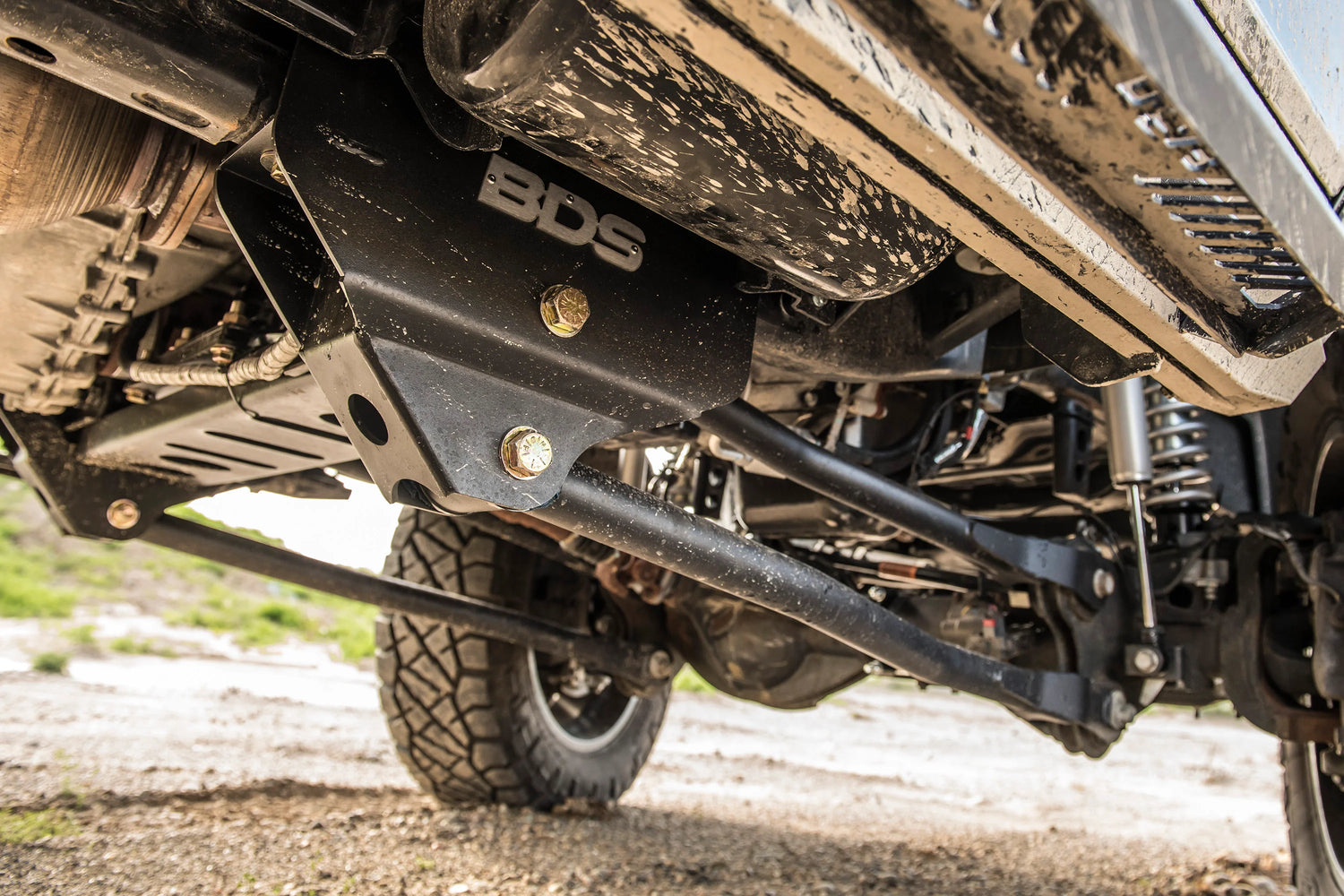

• Heavy-Duty 4-Link System – Upgrades factory stamped arms with high-strength tubular radius arms, offering caster adjustment and smooth quiet operation via OE-style rubber bushings.
• Pro-Ride Coil Springs – Gas-specific, full-length, progressive-rate coils provide a smooth, reliable ride while delivering the correct lift height.
• Steering Geometry Correction – Includes a forged drop pitman arm and track bar relocation bracket to maintain proper steering angles and alignment through full travel.
• Driveline Alignment – Includes a transmission crossmember and transfer case indexing ring to correct angles and retain use of the factory front driveshaft.
• Rear Lift Components – Features a high-strength fabricated lift block, air bag spacers, longer u-bolts, and matching FOX 2.0 Performance or NX2 Nitro shocks for load support and ride quality.
• Premium Shock Options – Choice of FOX 2.0 Performance Series or NX2 Nitro Series shocks tuned for superior performance and durability.
• Tire Clearance – Designed to clear up to 37" tires (may require trimming depending on wheel setup).

Kit Includes

• High-strength tubular radius arms with OE-style rubber bushings
• Gas-specific Pro-Ride coil springs
• Forged drop pitman arm
• Track bar relocation bracket
• Transmission crossmember & transfer case indexing ring
• High-strength fabricated rear lift block & air bag spacers
• Longer u-bolts
• Your choice of FOX 2.0 Performance or NX2 Nitro shocks

Fitment

Specifically engineered for 2019–2024 Dodge Ram 3500 gas-powered 4WD trucks with factory rear air ride systems. Supports up to 37" tire fitment.
