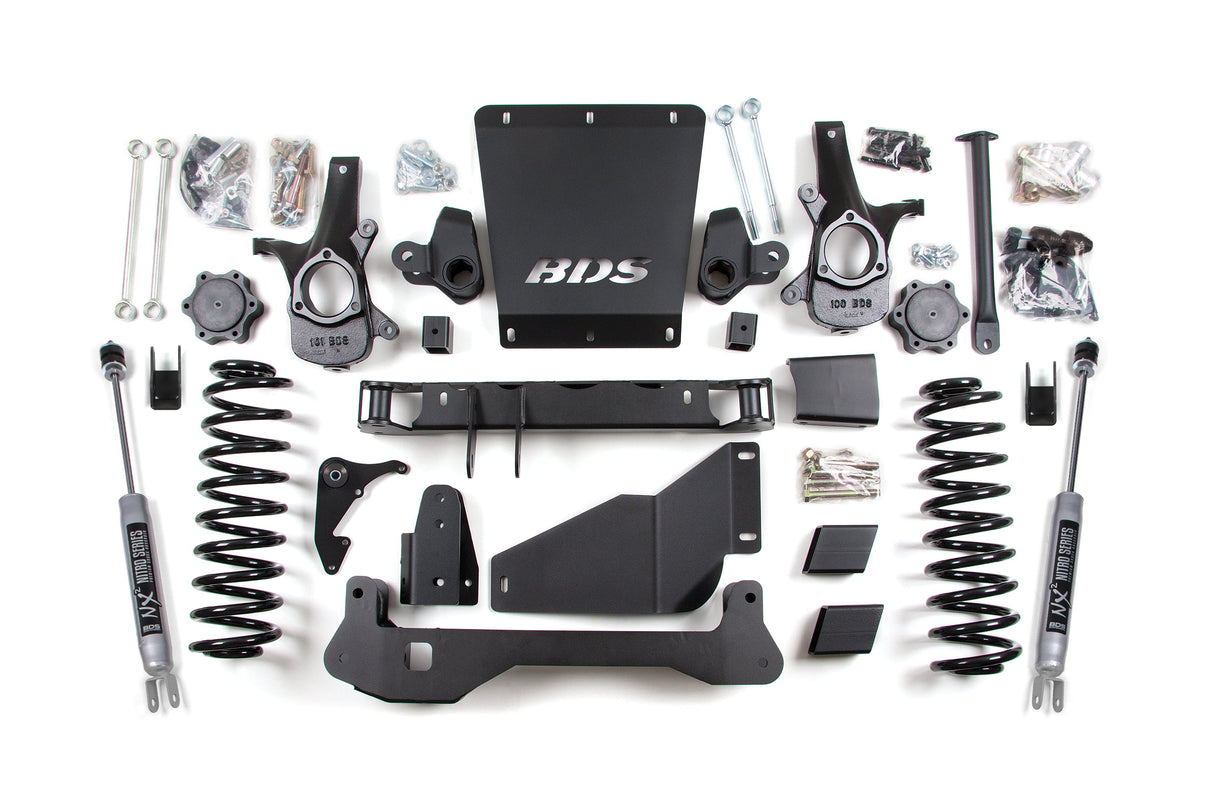

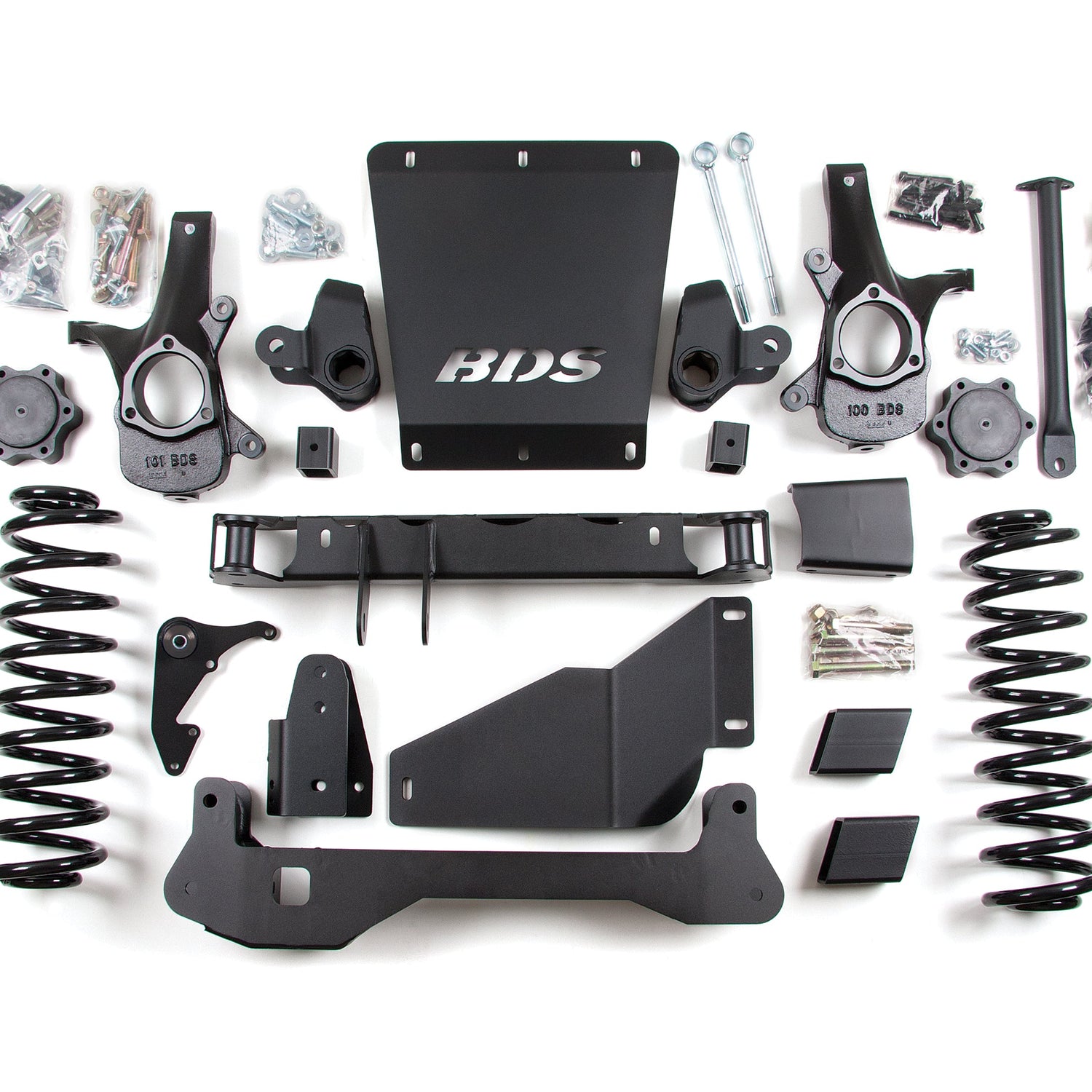

6-Inch Lift Kit for 2006-2006 Chevy/GMC Avalanche + Surburban + Tah...
Description
Description
Improve your stance, performance, and capability with the luxurious BDS 6-inch lift kit for the 2000-2006 Chevy Avalanche, Suburban, Tahoe, and GMC Yukon 1500 4WD. This must-have upgrade is designed for maximum ground clearance, utilizing a No Torsion Bar Drop System to mount torsion bars directly to the top of the lower a-arm. With enough room for up to 35" tires, this kit incorporates BDS's high-clearance design for increased ground clearance, strength, and off-road protection while correcting suspension and steering geometry for impeccable on-road handling. The front of the kit features torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets, and heavy-duty skid plates for ultimate off-road protection. CNC-machined ductile iron steering knuckles are utilized for improved steering geometry at the new, taller ride height, while sway bar drops, bump stop extensions,
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.
Shock Option

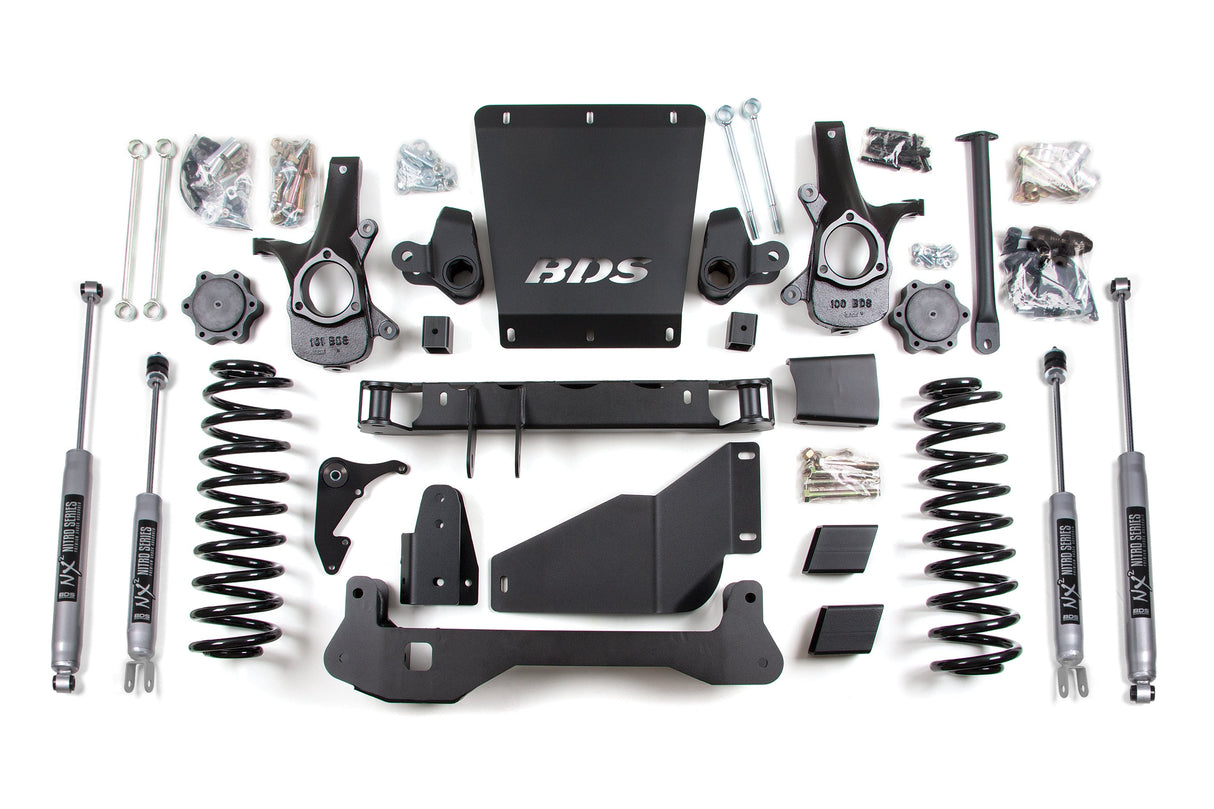

NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish

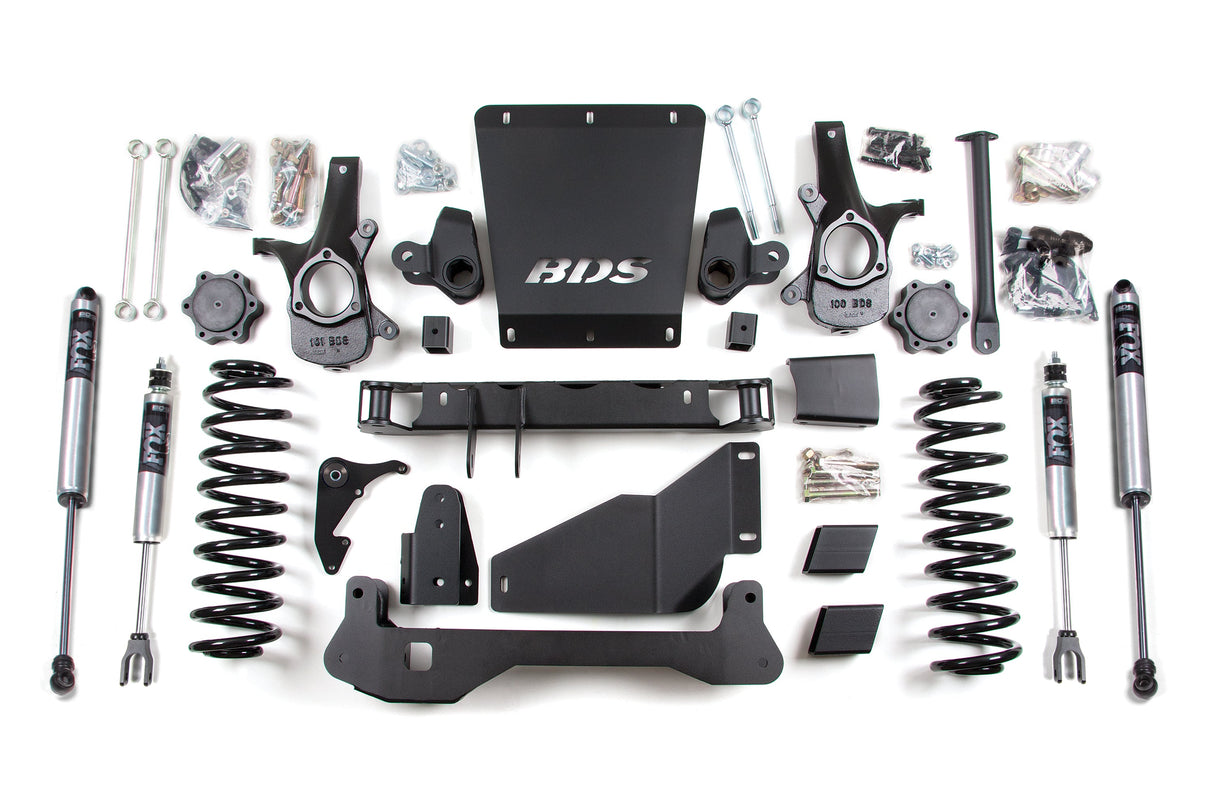

FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Auto Ride Equipped
- Required for a vehicle equipped from the factory with auto-ride.
- Maintains the factory air shocks.
- Will not fit models equipped with Magnetic Ride Control
Features & Benefits
- High Clearance design w/ no torsion bar drop maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- Factory Protection Plus drivetrain warranty included
- Choice of NX2 or FOX 2.0 gas shocks for improved performance
Recommended Tires & Wheels
(Trimming may be required)
- 33 x 12.5 with 17 x 8 and 4.5 in. Backspace
- 34 x 12.5 with 18 x 9 and 5 in. Backspace
- 35 x 12.5 with 20 x 9 and 5.75 in. Backspace
6-Inch Lift Kit for 2006-2006 Chevy/GMC Avalanche + Surburban + Tahoe + Yukon 1500 4WD | SKU BDS1816H
