6-Inch Lift Kit for 2005-2015 Toyota Tacoma 4WD
From
$ 1,989.65
Unit price
/
Unavailable
Description
Description

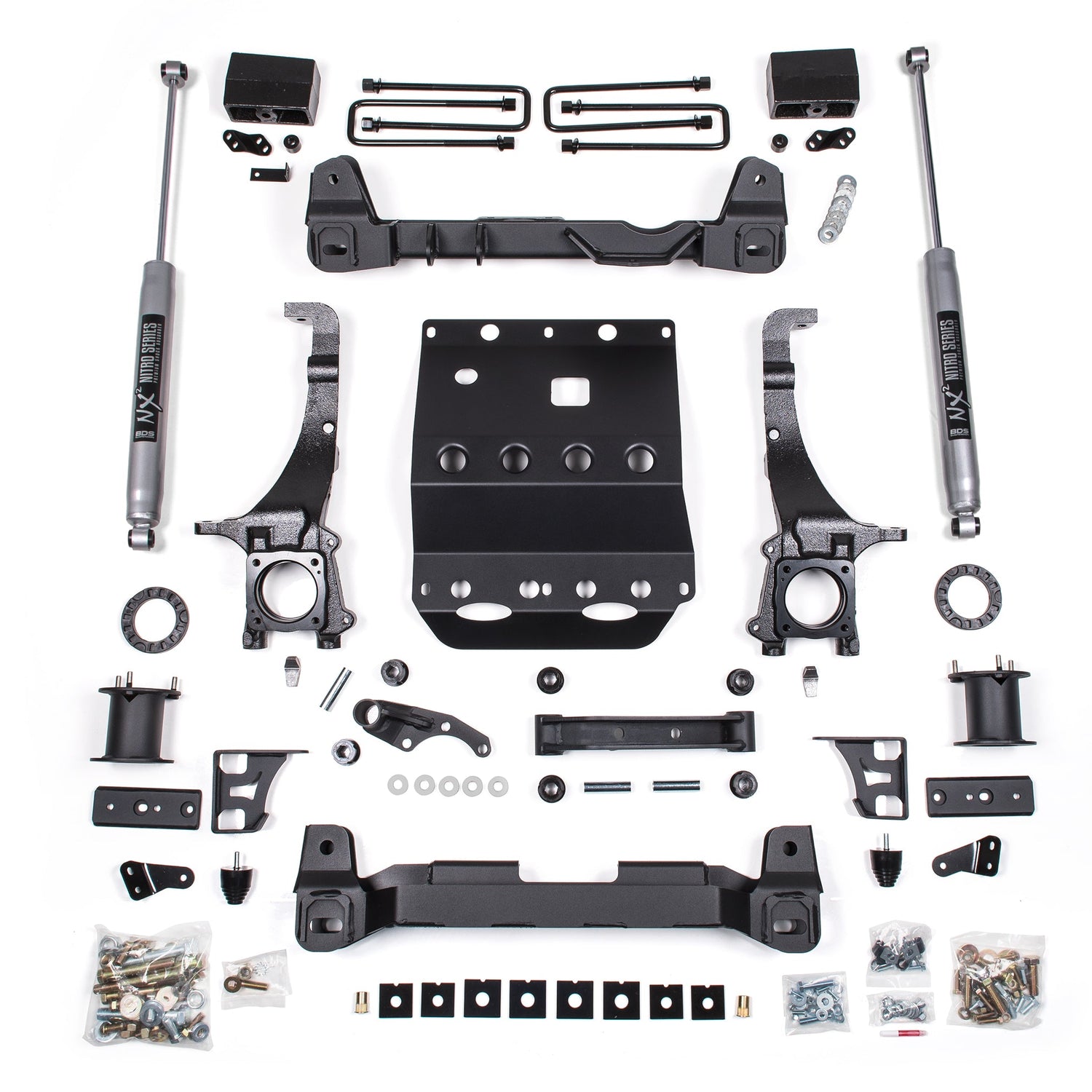

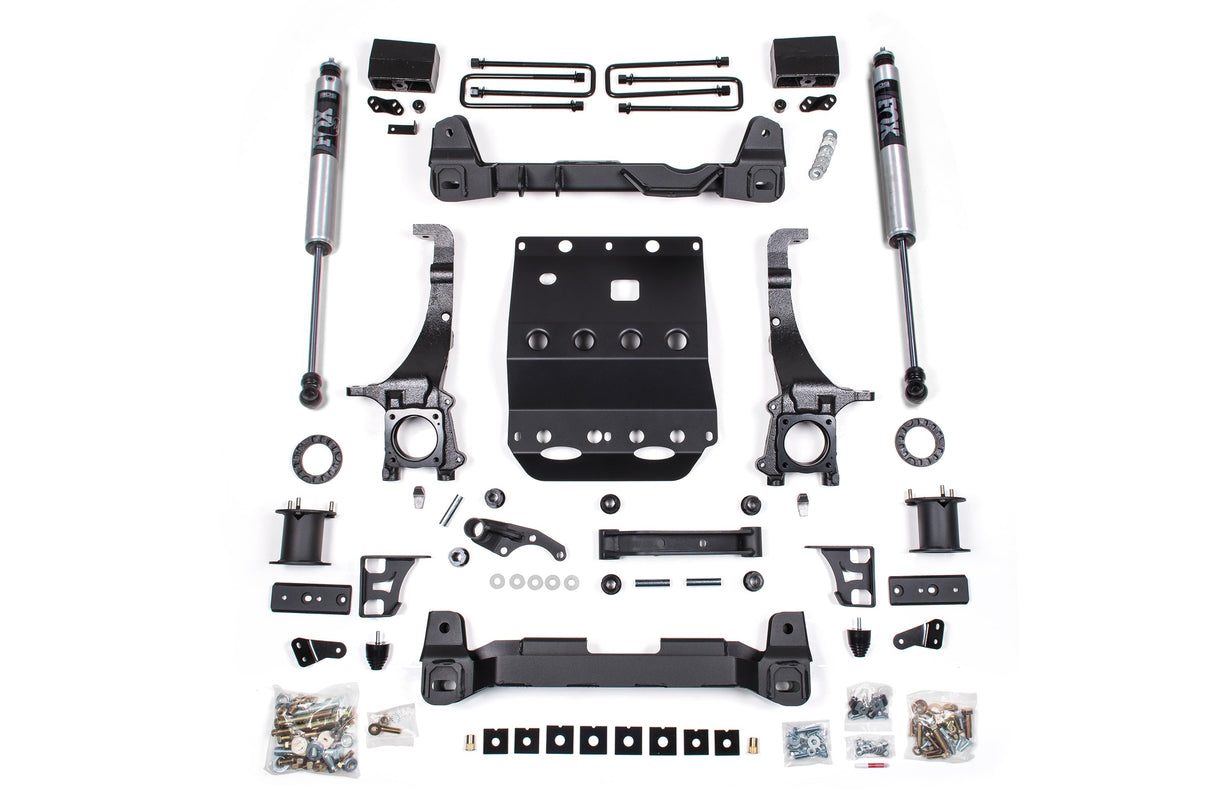

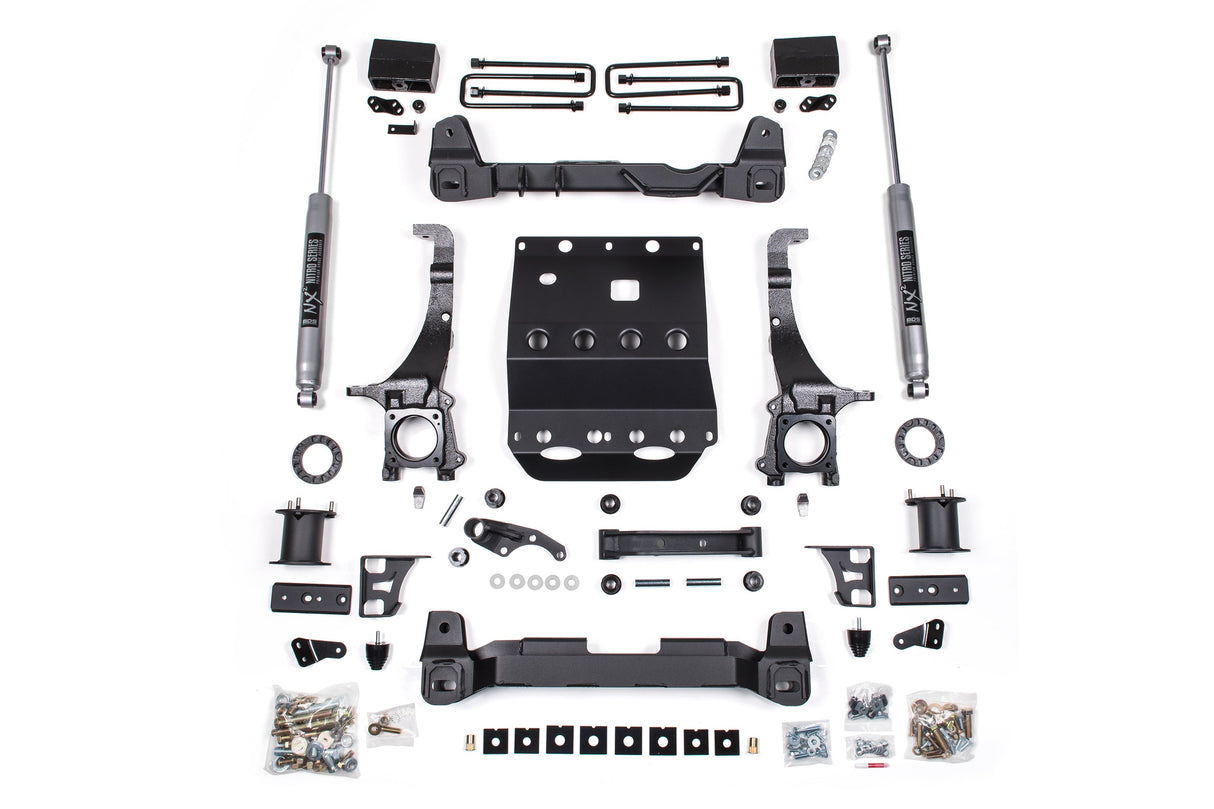

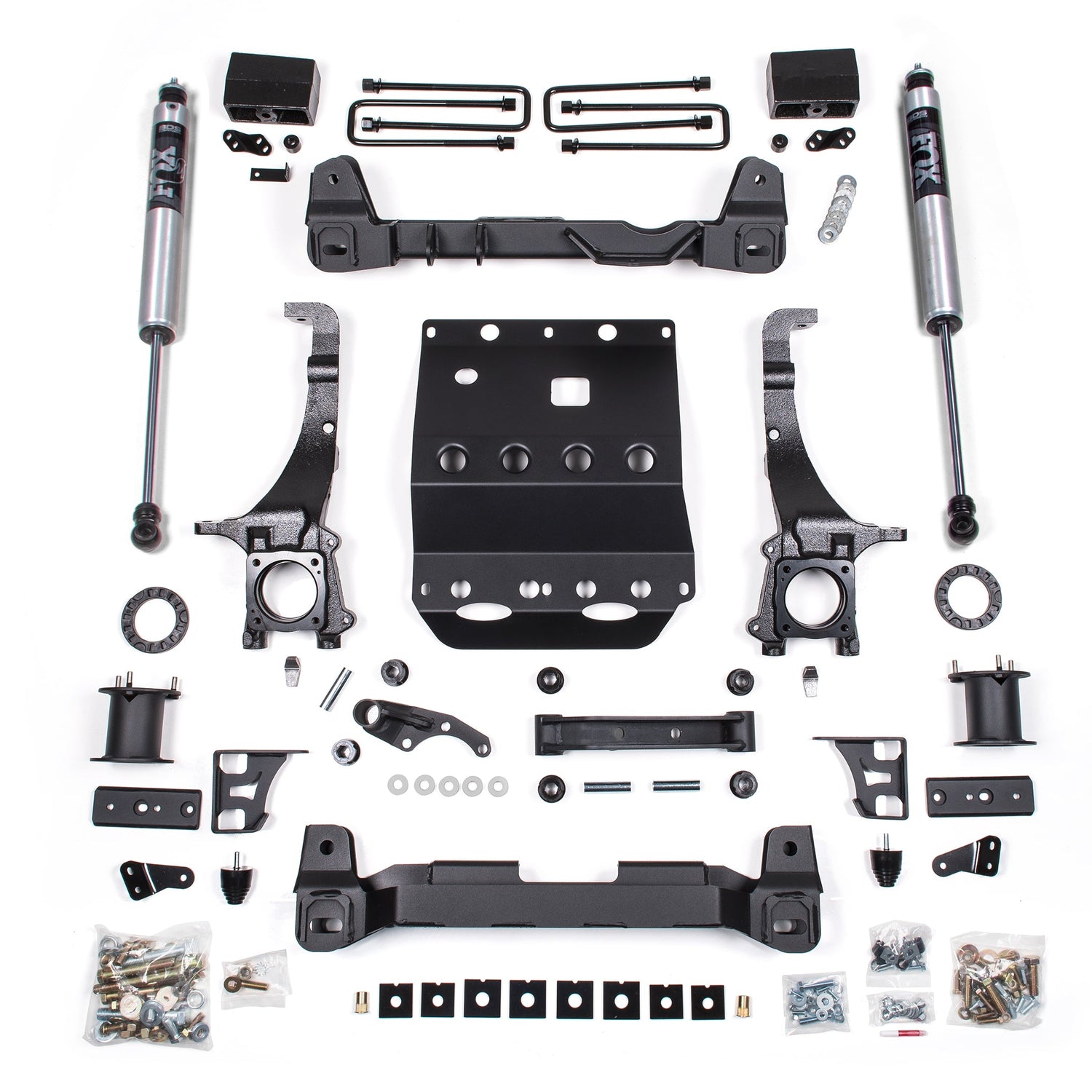

Enhance the performance and capability of your 2005-2015 Toyota Tacoma 4WD truck with a 6-inch lift kit from BDS. This comprehensive kit is designed to improve stance, performance, and capability, and includes everything you need to set up your truck with clearance for up to 35" tires. Utilizing BDS's proven high-clearance design, this kit offers improved ground clearance, strength, and off-road protection, while also correcting suspension and steering geometry for top-notch on-road handling.
The front of the kit features top mounted strut spacers, high-arched steel crossmembers, and multipiece differential relocation brackets, along with heavy-duty skid plates for unparalleled off-road protection. Moreover, steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles, allowing for compatibility with the ESC system. Plus, sway bar drops, bump stop extensions, brake line brackets, lower control arm cams, and all necessary hardware are included to
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.
Features & Benefits
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
- Factory Protection Plus drivetrain warranty included
Recommended Tires & Wheels
(Trimming may be required)
- 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
- 35 x 12.5 with 20 x 9 and 4.5 in. Backspace
Rear Shock Option
NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
