4-Inch Lift Kit for 2008-2010 Ford F-250/F-350 Super Duty 4WD Diesel
Description
Description
Take your 2008-2010 Ford F-250/F-350 Super Duty diesel truck to a whole new level with this 4-inch lift kit from BDS Suspension. Engineered to maximize performance on ANY terrain, this kit allows you to run up to 35" tires.

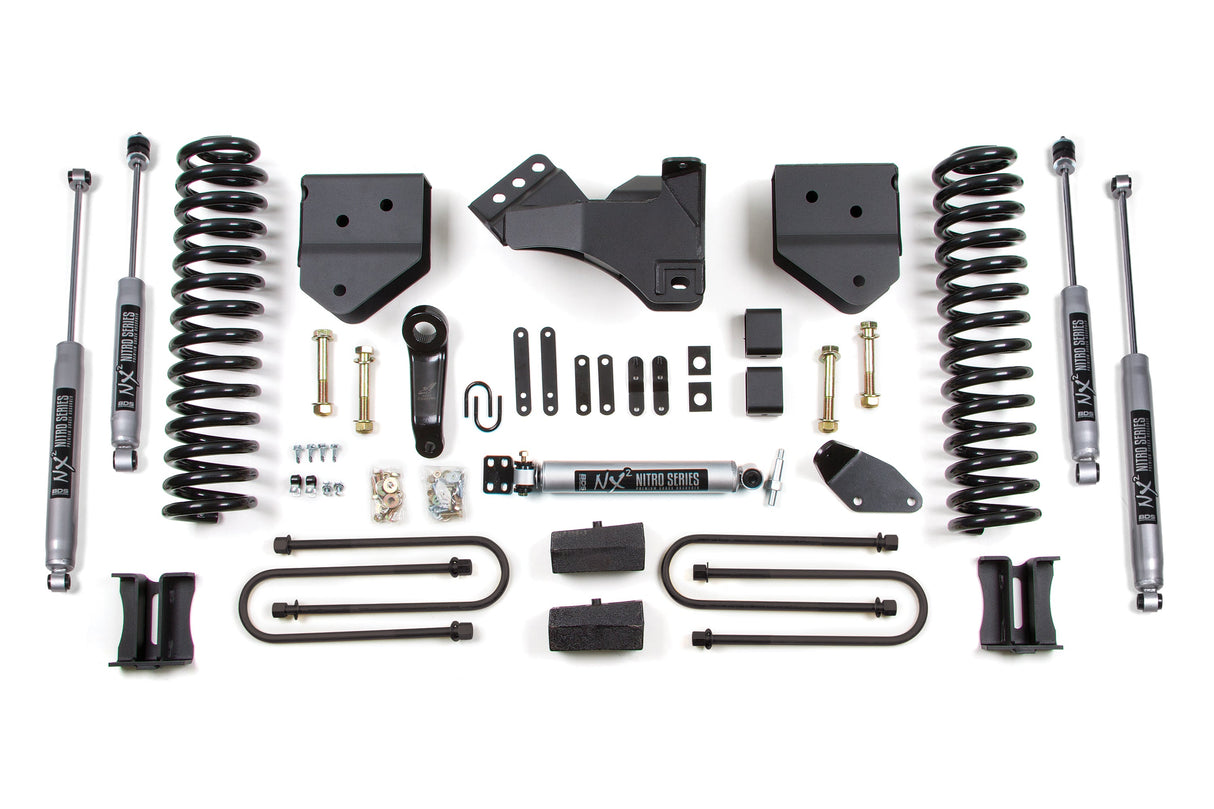

Up front, this lift kit includes:
- Diesel-specific Pro-Ride coil springs
- Heavy-duty radius arm drop bracket
- Forged drop pitman arm and track bar bracket for steering correction
- Sway bar relocation
- Brake line brackets
- Precision tuned nitrogen-charged shocks
In the rear, this kit utilizes:
- A high-strength lift block
- Longer u-bolts
- A matching set of NX2 Nitro or FOX Performance Shocks
Pro-Ride Coil Springs
Full-length, diesel-specific, Pro-Ride Coil Springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Steering Correction:
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle—and paired with a heavy-duty track bar drop bracket to keep everything in phase through suspension travel, while recentering the front axle.
Lift Kit Features:
- Easy, 100% Bolt-on installation
- Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
- Heavy duty radius arm drop brackets provide correct caster and will maintain your stock driving characteristics.
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Steel lift blocks with built-in bump stop provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Recommended Tires & Wheels:
Please note: Trimming may be required.
- 35x12.5 tires with 17x9 wheels and 4.5 in. Backspace
- 35x12.5 tires with 18x9 wheels and 4.5 in. Backspace
- 35x12.5 tires with 20x9 wheels and 4.5 in. Backspace
Rear Lift Kit Options:
Block Kit
- Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.
- Blocks made of steel for high strength.
- Designed to provide correct pinion angles.
Leaf Springs
- Eliminates any need for a lift block.
- Reduces axle wrap and creates a more controlled and stable feel.
- Multi-leaf progressive design for a smooth ride.
- Maintains factory payload weight ratings.
Shock Options:
NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish

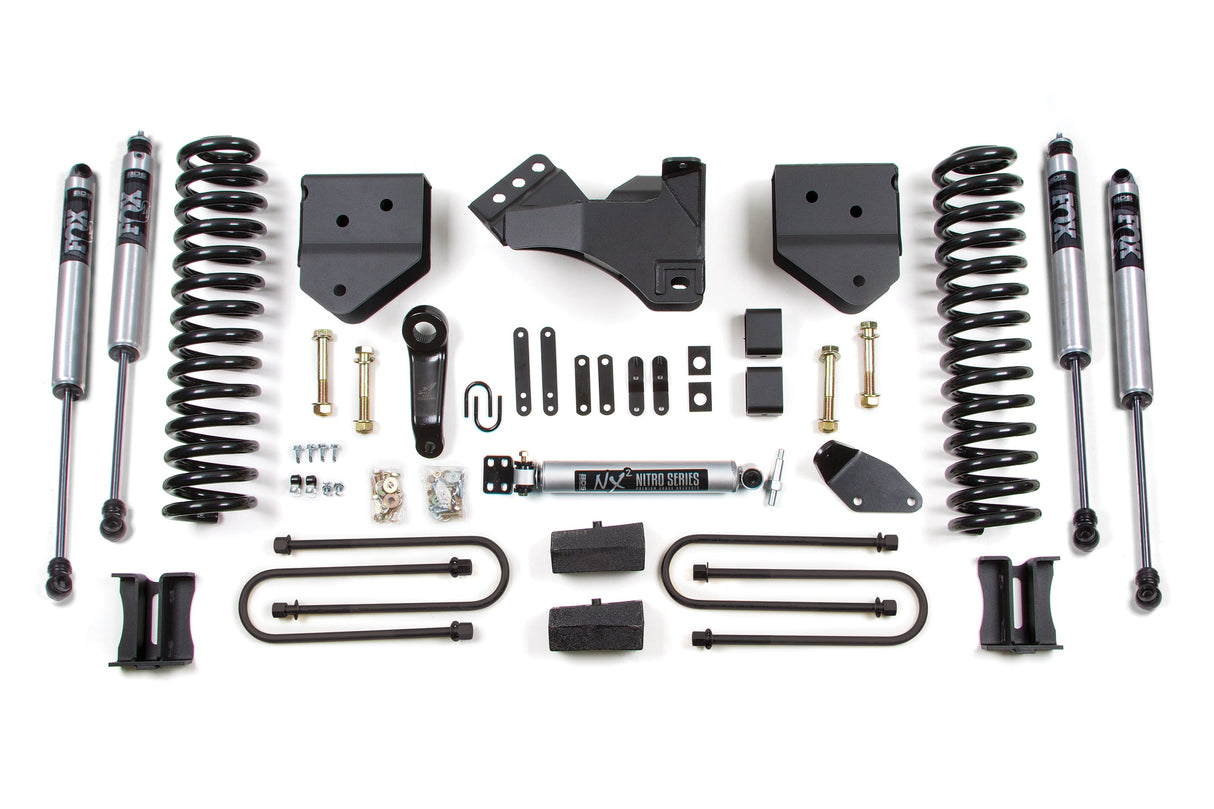

FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
4-Inch Lift Kit for 2008-2010 Ford F-250/F-350 Super Duty 4WD Diesel | SKU: BDS546FS
