Description
Description

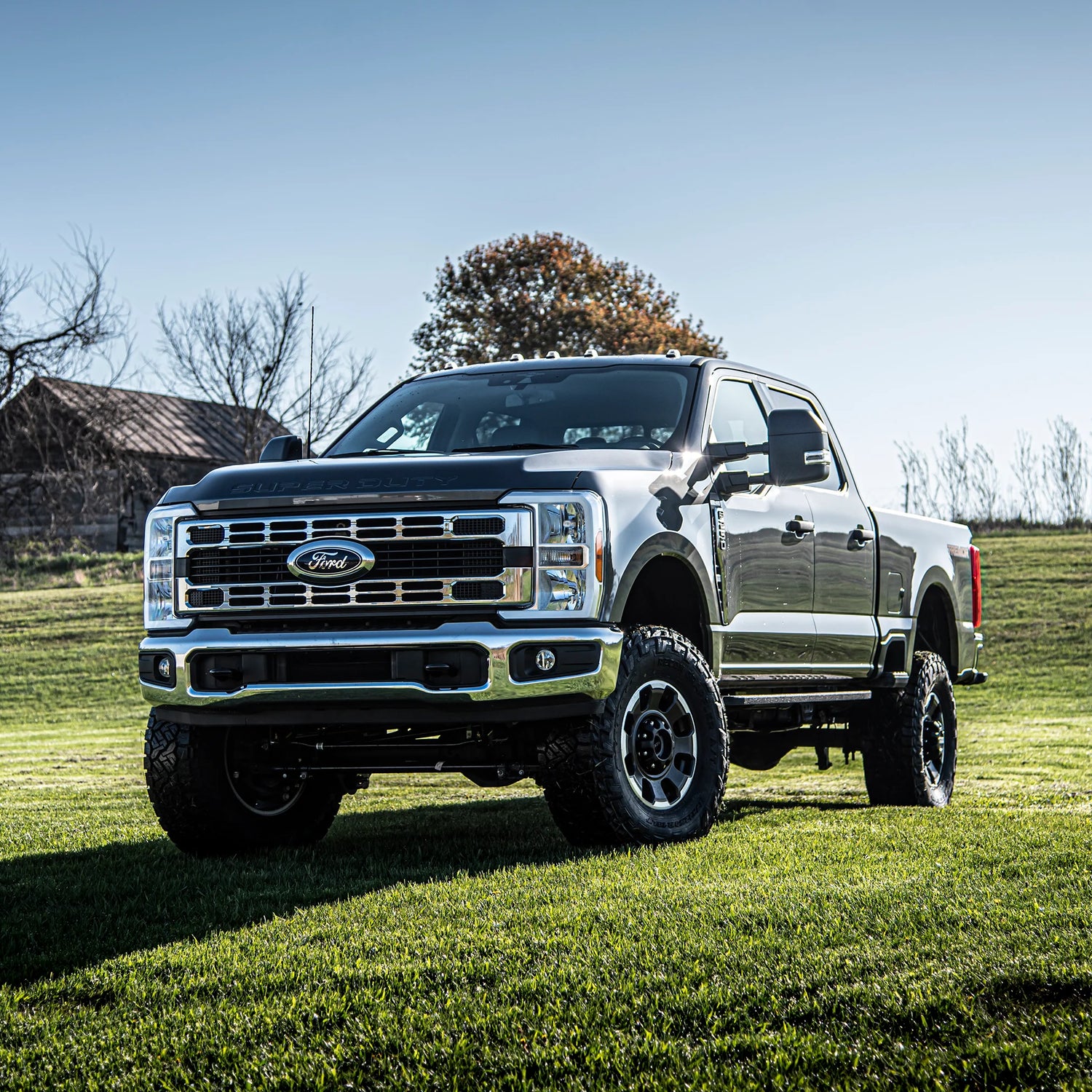

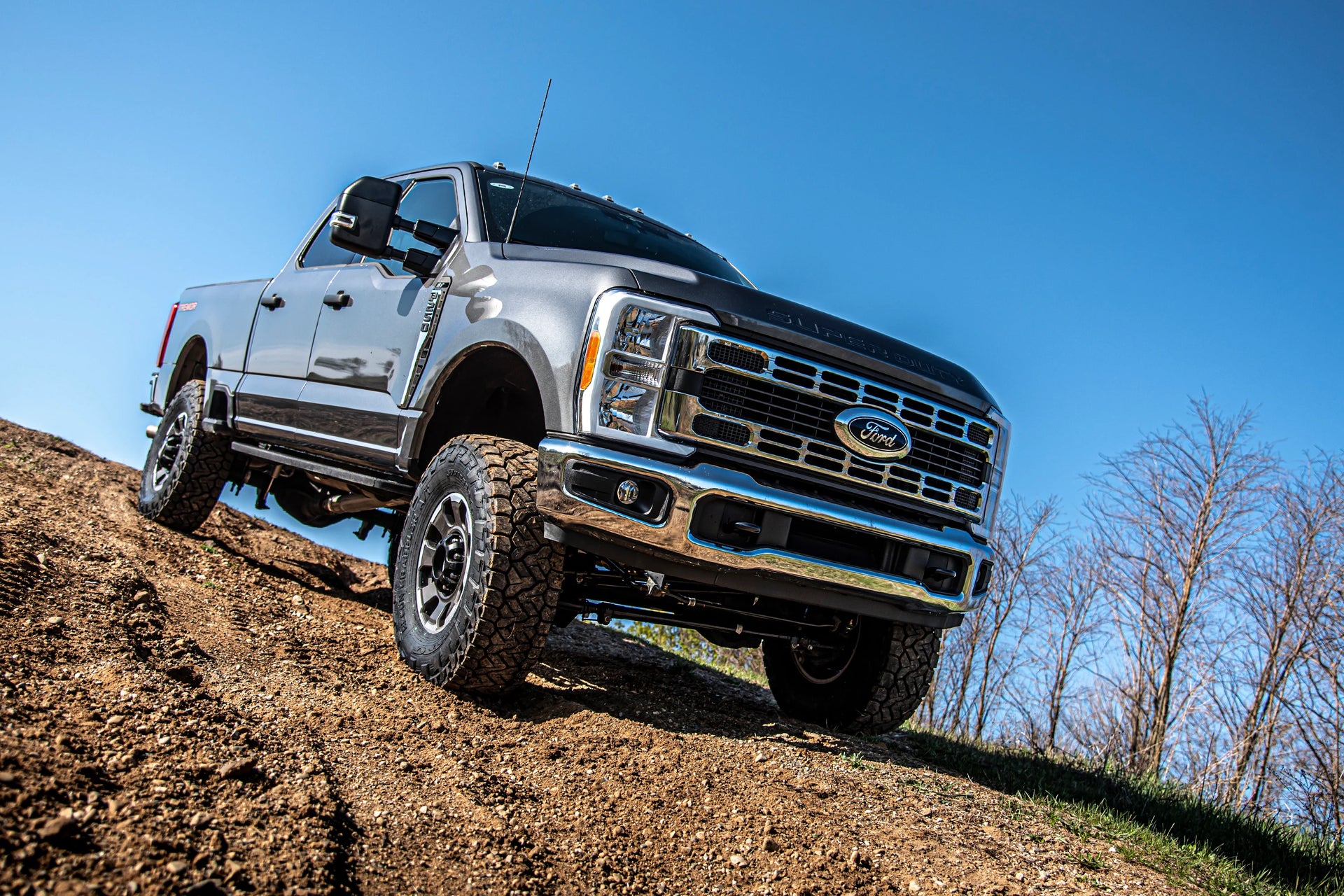

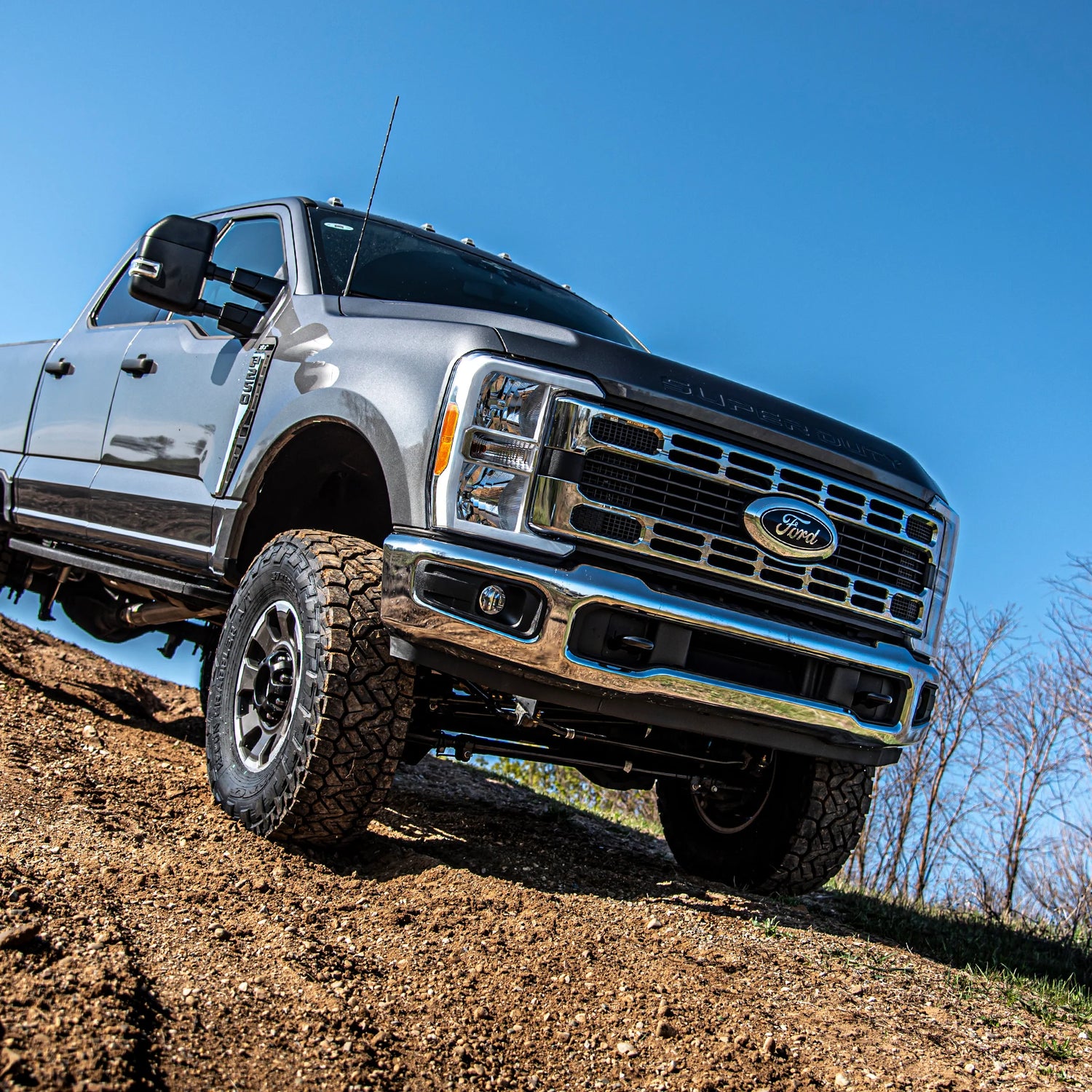

Want a bold, lifted stance, room for bigger tires, and factory-like road manners?
The BDS 5" 4-Link Lift Kit levels up your Super Duty with diesel-tuned coils, a heavy-duty 4-link conversion, and steering/geometry corrections so it drives as good as it looks—on the street or jobsite.
- Fits: 2023, 2024, 2025 Ford F-250/F-350 Super Duty, 4WD, Diesel
- Purpose: Confident daily driving, improved off-road capability, and clearance for larger tires
Why Choose the BDS 5" 4-Link Kit?
- Diesel-specific ride quality: Pro-Ride front coil springs are tuned for the weight and torque of the Power Stroke for smooth control on and off road.

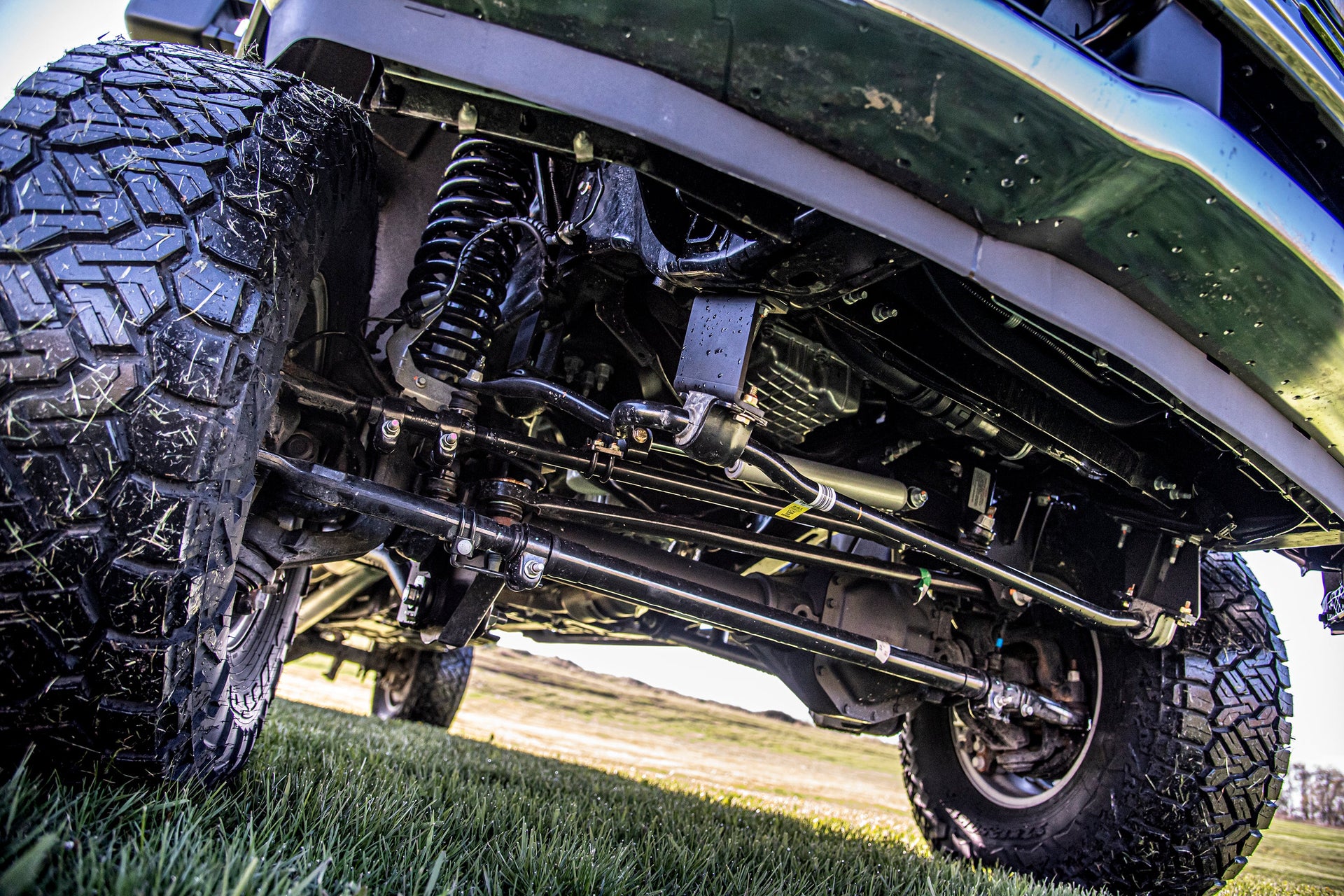

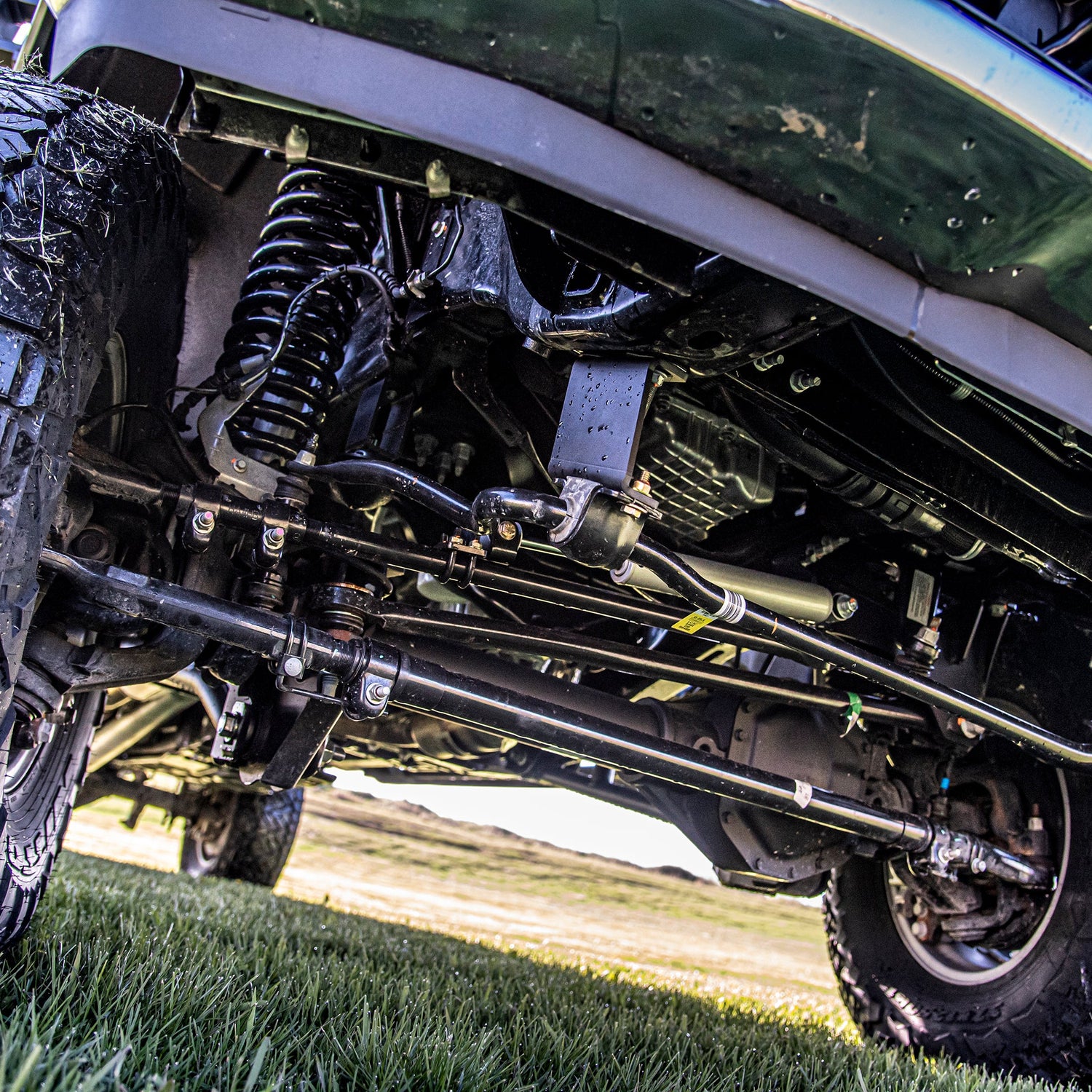

- Stronger front geometry: The 4-link control arm conversion adds stability under braking and better on-center feel vs. radius arms.
- Steering kept in spec: Forged drop pitman arm + track bar bracket correct steering angles after the lift to reduce bump-steer.
- Clearance for up to 37s: Proper wheel/tire setup can support up to 37×12.50" with trimming as needed, depending on trim/wheel specs.
- No-Fine-Print Warranty: BDS backs their kits with lifetime replacement coverage.

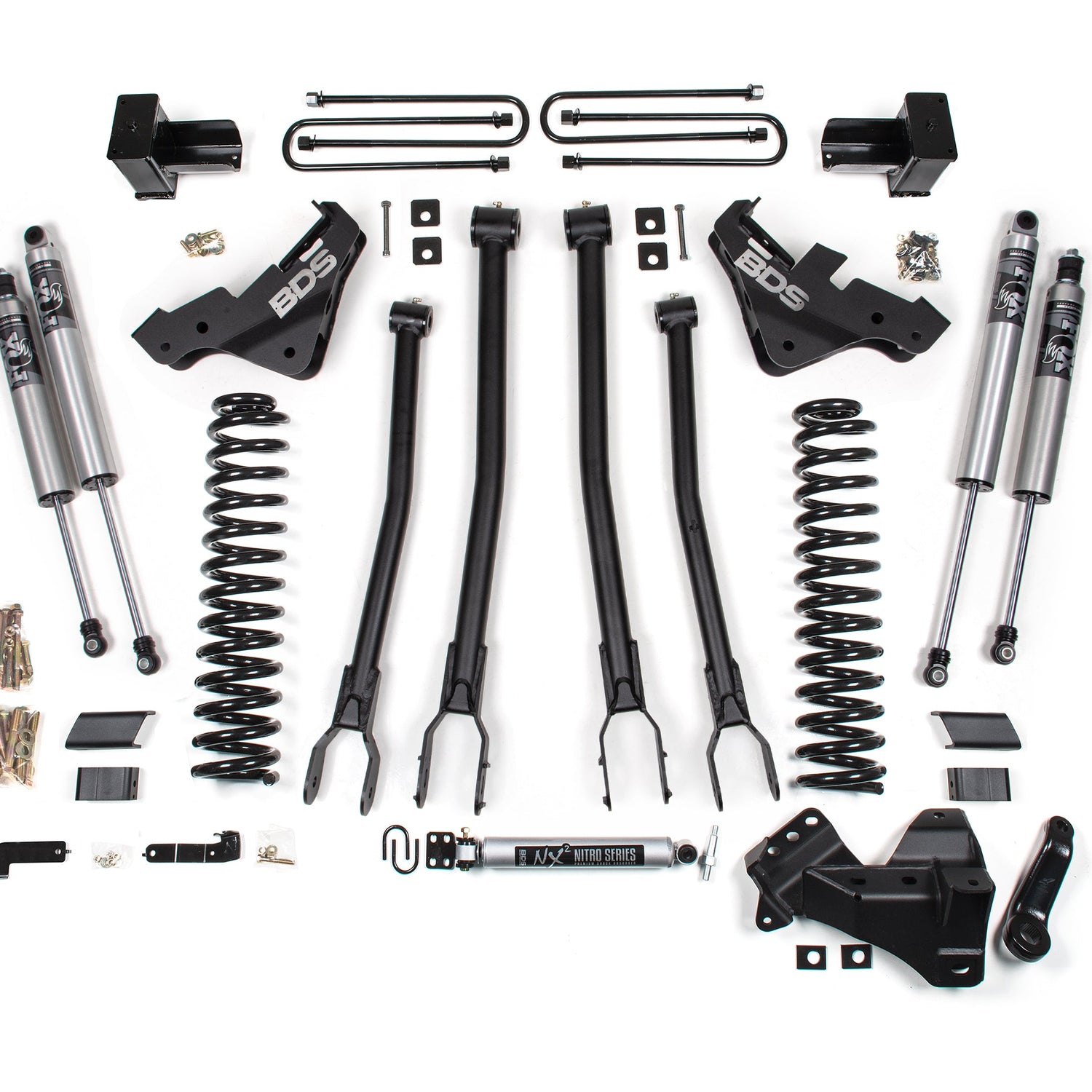

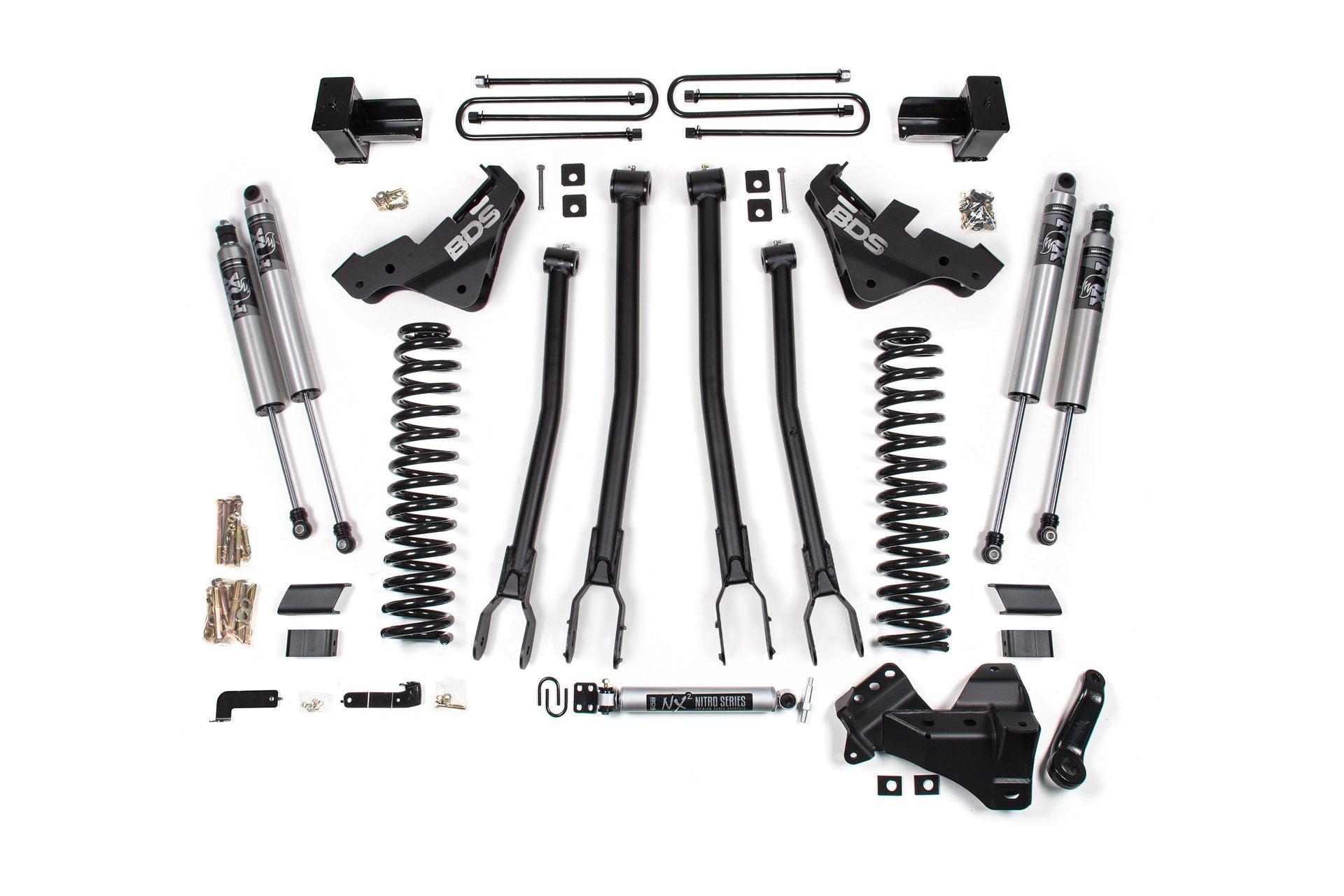

What’s Included
- Front Lift: Diesel-specific Pro-Ride coil springs
- Front Control Arms: 4-link control arms with conversion brackets
- Steering/Centering: Forged drop pitman arm + track bar bracket
- Sway Bar/Brake Lines: Sway bar relocation and brake line brackets
- Shocks: Precision-tuned nitrogen-charged shocks (options below)

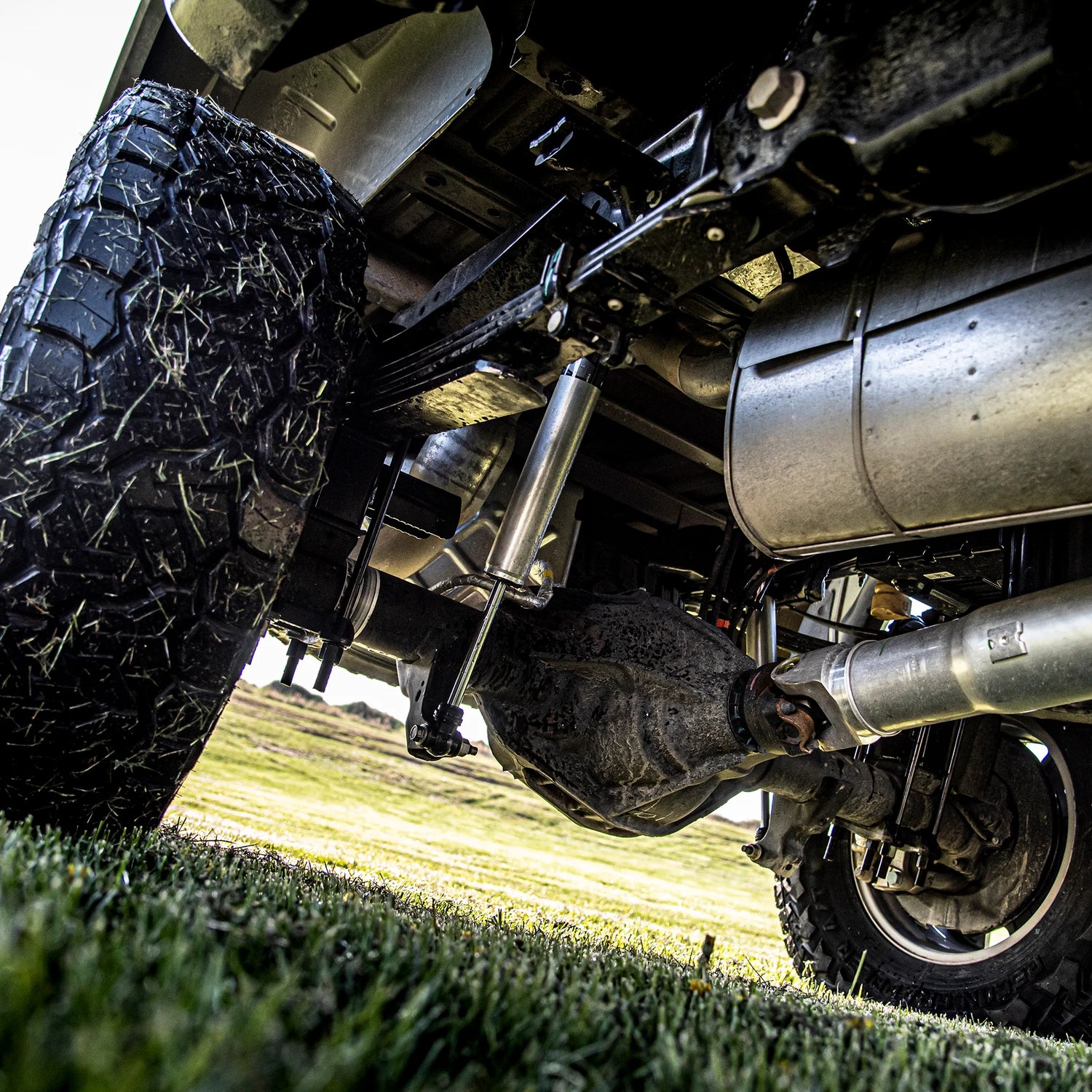

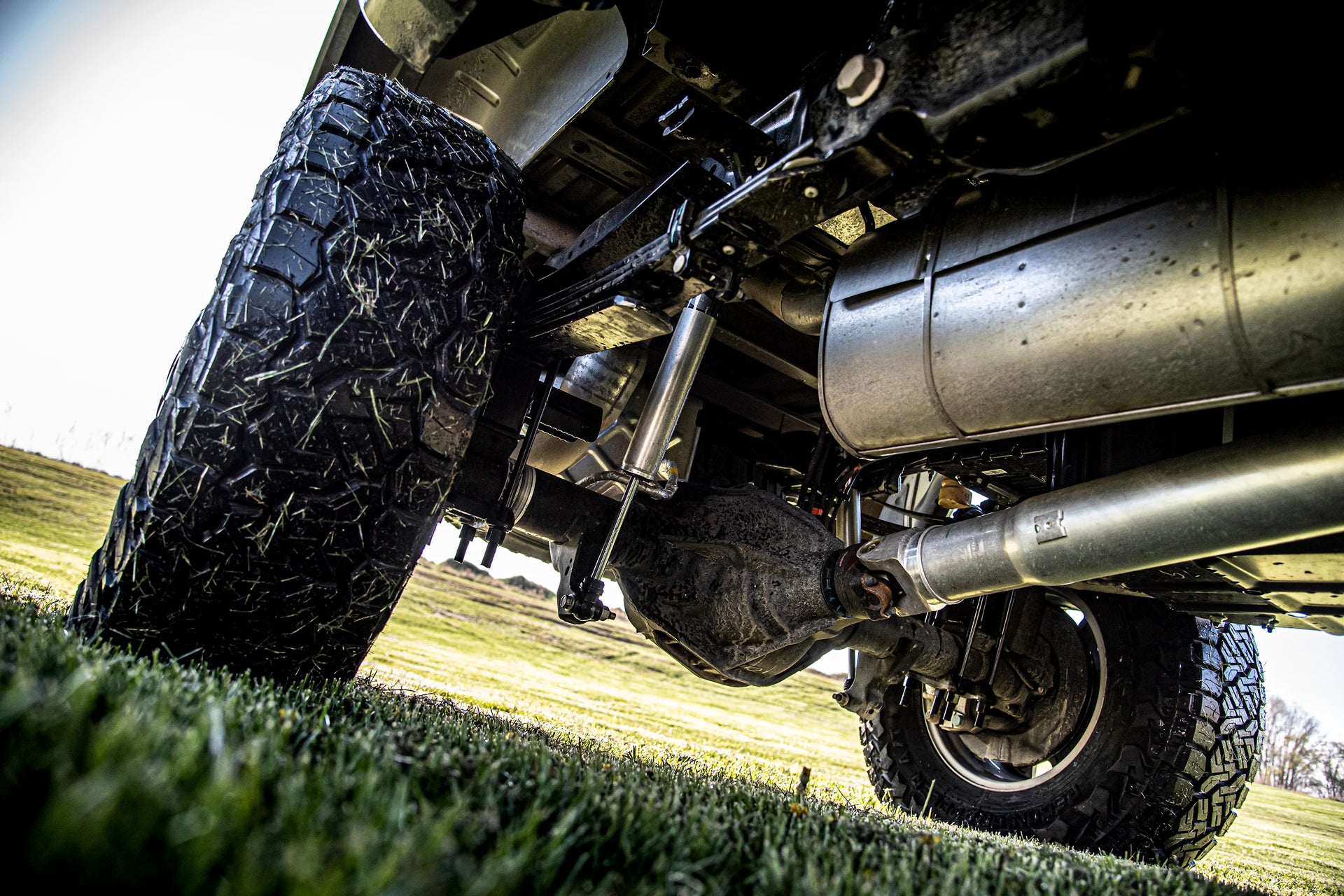

- Rear Lift: High-strength fabricated lift block, longer U-bolts, brake line brackets, and matched rear shocks
Shock Options
- NX2 Nitro Series — great all-around control
- FOX Performance Series 2.0 — upgraded damping and heat control
- FOX 2.5 / Performance Elite (DSC) — max on/off-road performance and tunability
Recommended Tire & Wheel Setup
- Up to 37×12.50" with appropriate wheel backspacing/offset; trimming may be required depending on bumper/flare/wheel specs.
Installation & Notes
- Transfer case indexing: At ~5" front lift, BDS supplies a transfer-case indexing ring and a new transmission crossmember so you can retain the factory front driveshaft and proper driveline angles.
- Complete hardware: Includes brackets and hardware for sway bar, steering, and brake line relocation.
- Professional alignment recommended after install to set caster/toe.
Who This Kit Is For
- Super Duty owners who want a true 5" lift with diesel-tuned comfort
- Drivers planning 35–37" tires with confident road manners
- Work/play rigs that need durable components and clean steering geometry
