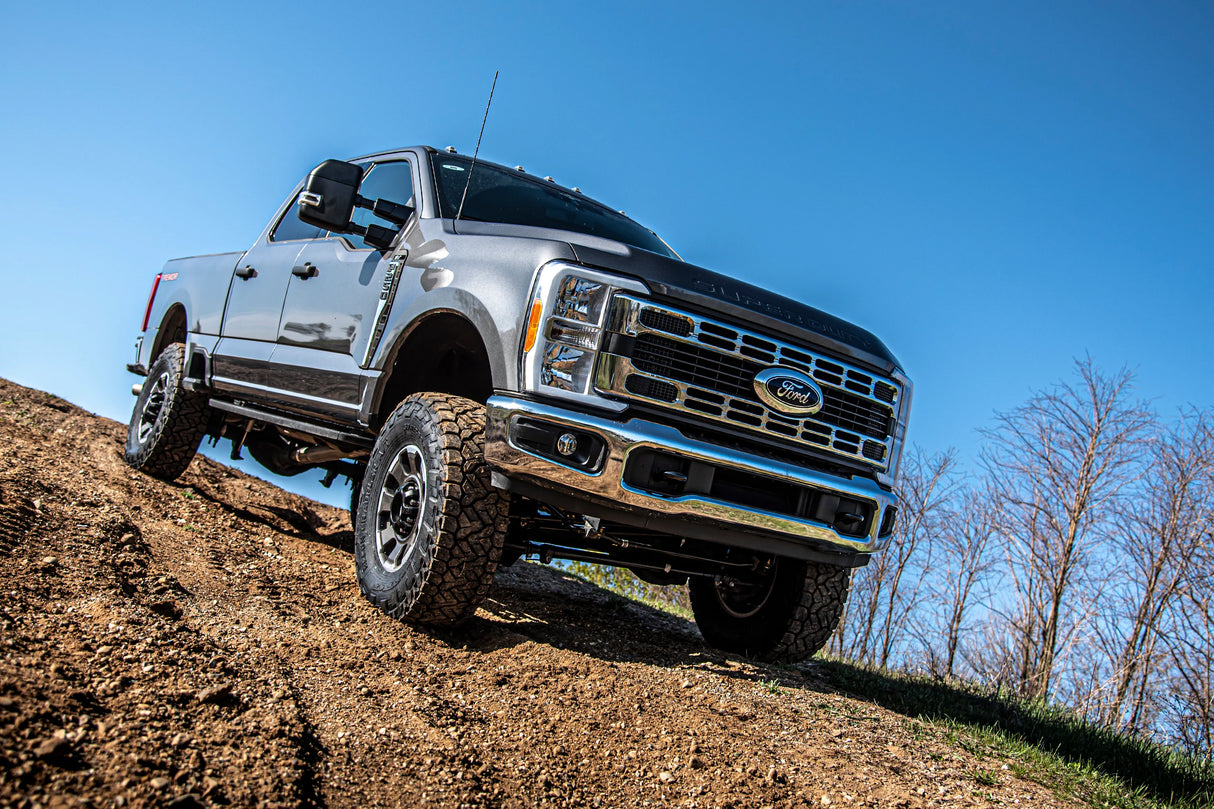

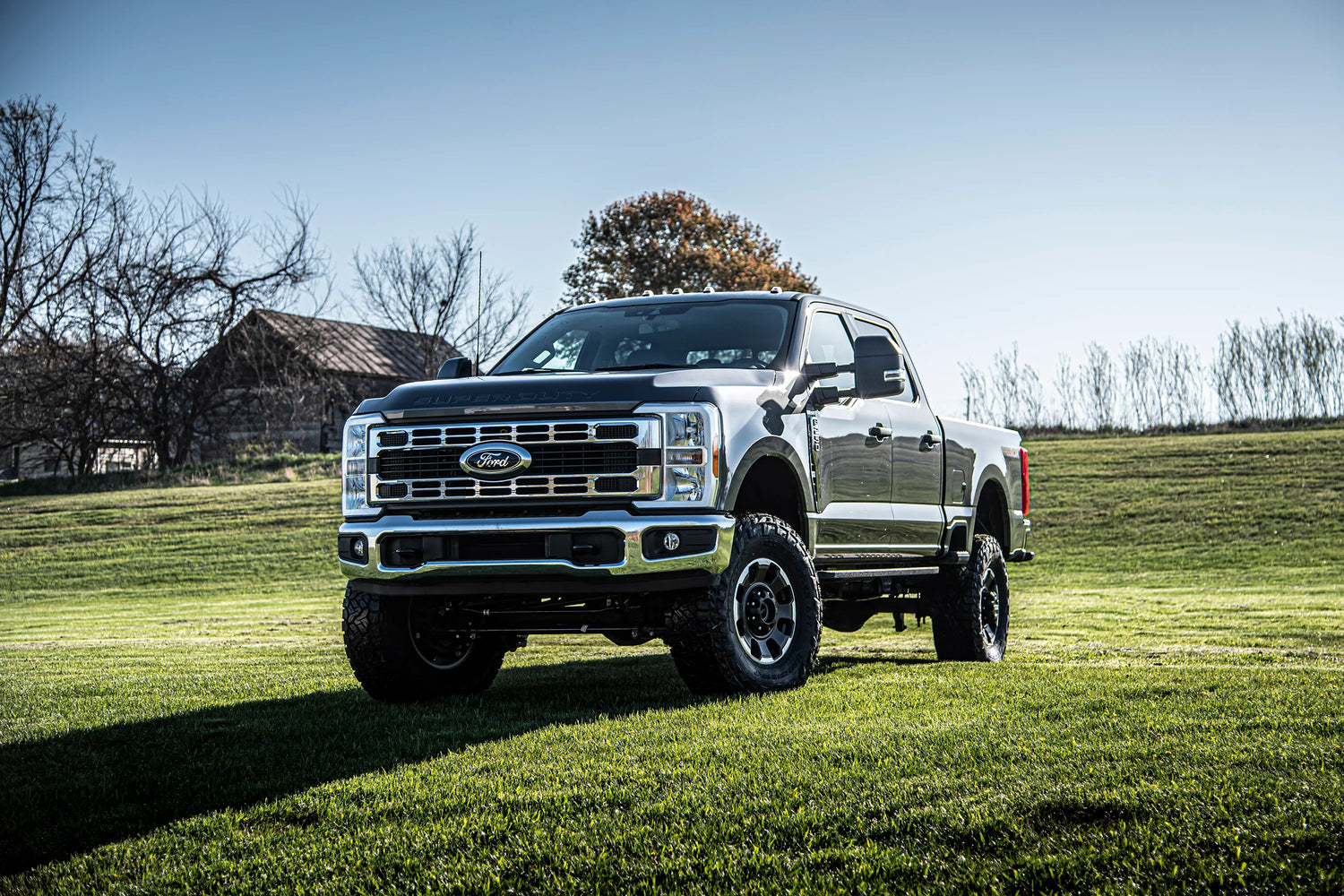

BDS 5" Lift Kit w/ 4-Link for 2023-2025 Ford F250/F350 4WD | Diesel

Want a bold, lifted stance, room for bigger tires, and factory-like road manners?

The BDS 5" 4-Link Lift Kit levels up your Super Duty with diesel-tuned coils, a heavy-duty 4-link conversion, and steering/geometry corrections so it drives as good as it looks—on the street or jobsite.

• Fits: 2023, 2024, 2025 Ford F-250/F-350 Super Duty, 4WD, Diesel
• Purpose: Confident daily driving, improved off-road capability, and clearance for larger tires

Why Choose the BDS 5" 4-Link Kit?

• Diesel-specific ride quality: Pro-Ride front coil springs are tuned for the weight and torque of the Power Stroke for smooth control on and off road.
• Stronger front geometry: The 4-link control arm conversion adds stability under braking and better on-center feel vs. radius arms.
• Steering kept in spec: Forged drop pitman arm + track bar bracket correct steering angles after the lift to reduce bump-steer.
• Clearance for up to 37s: Proper wheel/tire setup can support up to 37×12.50" with trimming as needed, depending on trim/wheel specs.
• No-Fine-Print Warranty: BDS backs their kits with lifetime replacement coverage.

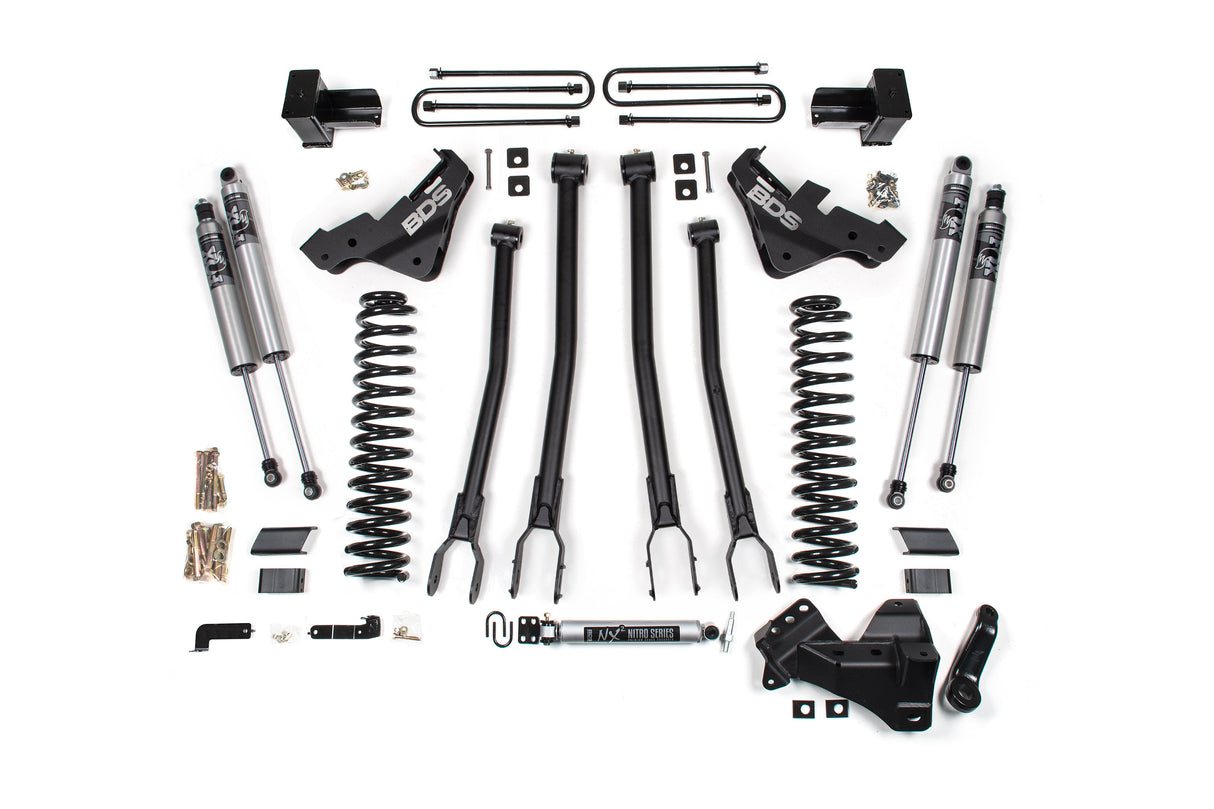

What’s Included

• Front Lift: Diesel-specific Pro-Ride coil springs

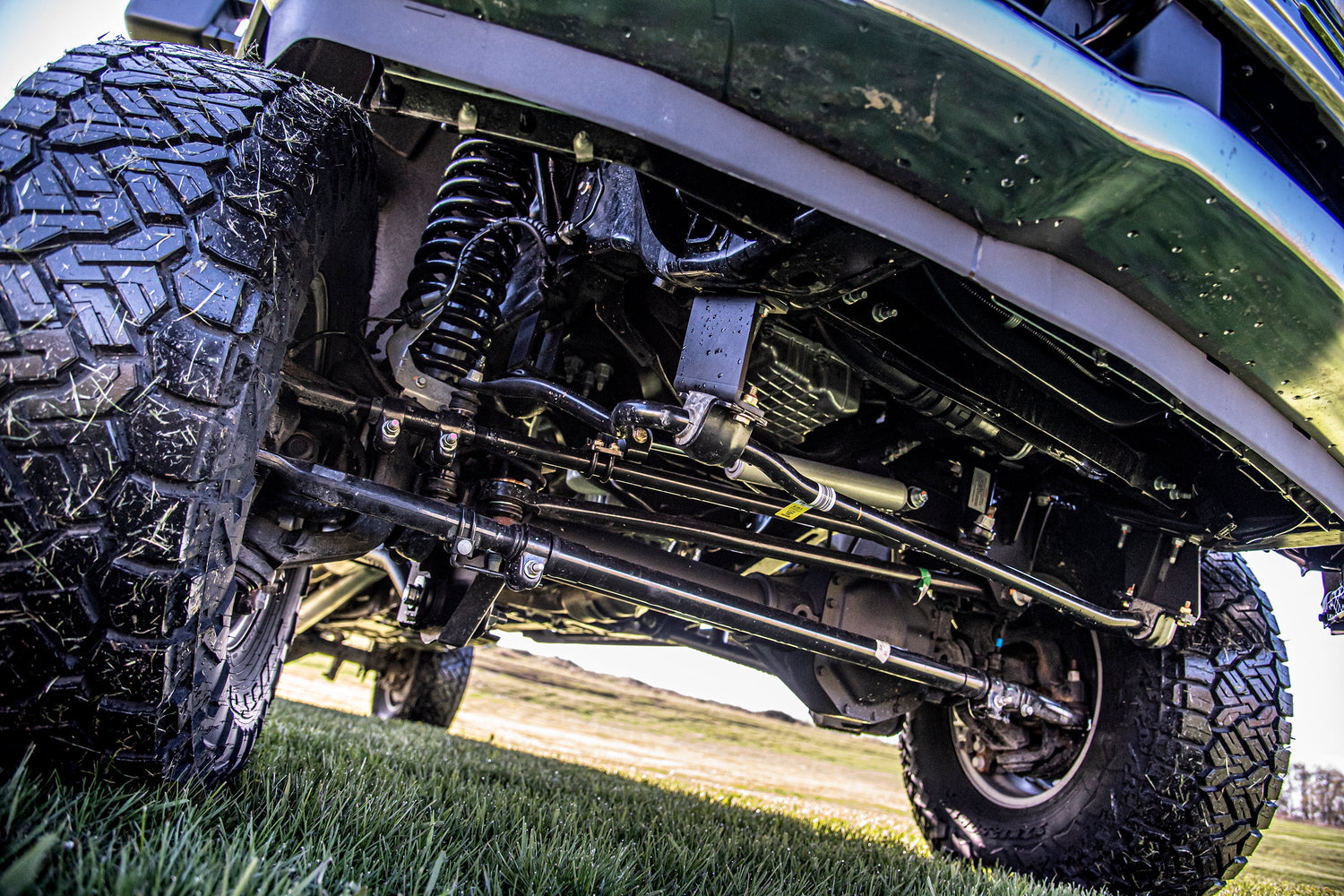

• Front Control Arms: 4-link control arms with conversion brackets
• Steering/Centering: Forged drop pitman arm + track bar bracket
• Sway Bar/Brake Lines: Sway bar relocation and brake line brackets
• Shocks: Precision-tuned nitrogen-charged shocks (options below)

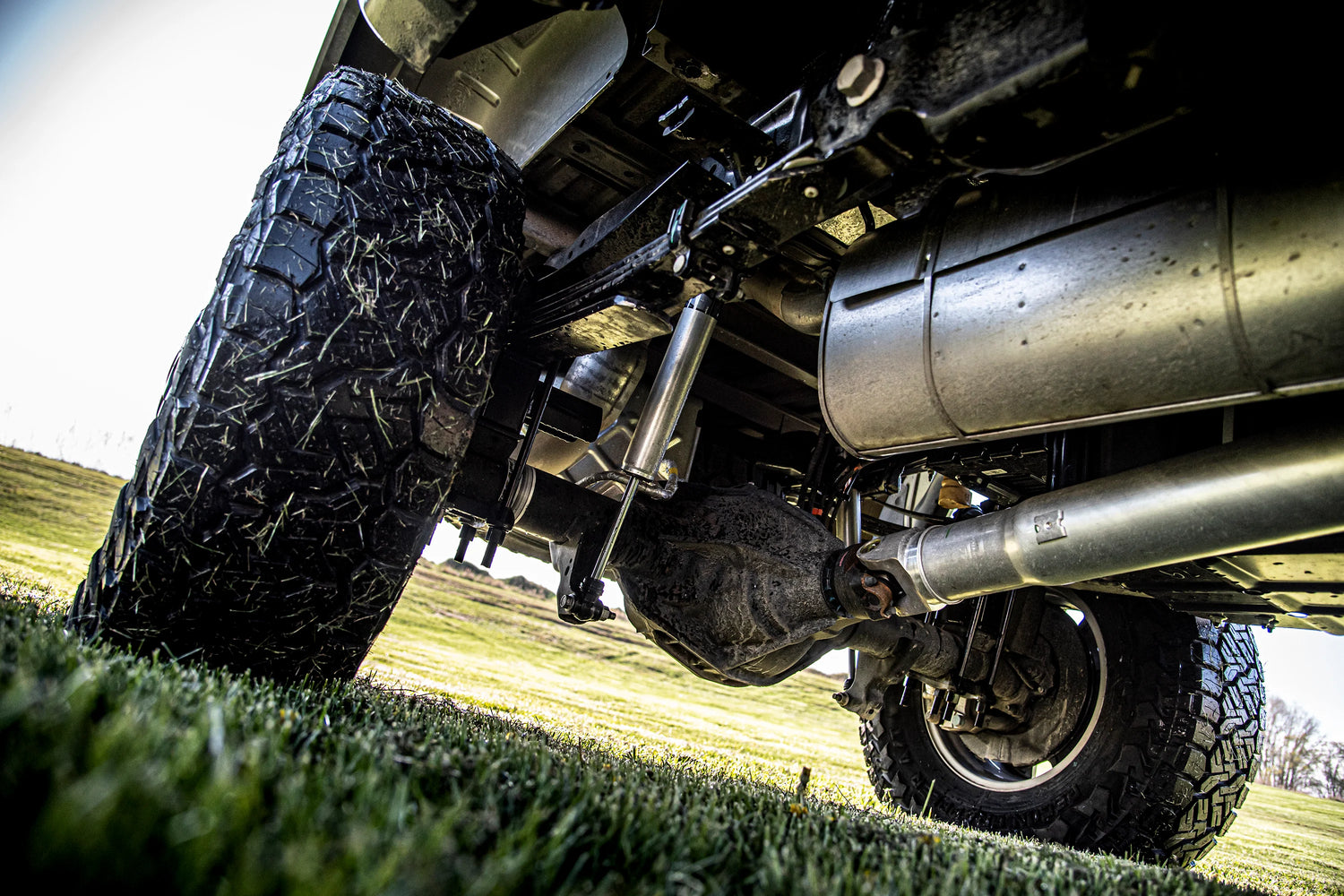

• Rear Lift: High-strength fabricated lift block, longer U-bolts, brake line brackets, and matched rear shocks

Shock Options

• NX2 Nitro Series — great all-around control
• FOX Performance Series 2.0 — upgraded damping and heat control
• FOX 2.5 / Performance Elite (DSC) — max on/off-road performance and tunability

Recommended Tire & Wheel Setup

• Up to 37×12.50" with appropriate wheel backspacing/offset; trimming may be required depending on bumper/flare/wheel specs.

Installation & Notes

• Transfer case indexing: At ~5" front lift, BDS supplies a transfer-case indexing ring and a new transmission crossmember so you can retain the factory front driveshaft and proper driveline angles.
• Complete hardware: Includes brackets and hardware for sway bar, steering, and brake line relocation.
• Professional alignment recommended after install to set caster/toe.

Who This Kit Is For

• Super Duty owners who want a true 5" lift with diesel-tuned comfort
• Drivers planning 35–37" tires with confident road manners
• Work/play rigs that need durable components and clean steering geometry
