ICON | SKU: ICOK53262

ICON 2022-2023 Toyota Land Cruiser 300 Series, 1-3" Lift, Stage 2 Suspension System, Billet

Name: ICON 2022-2023 Toyota Land Cruiser 300 Series, 1-3" Lift, Stage 2 Suspension System, Billet
Brand: ICON
SKU: ICOK53262
Price: 4598.54 USD
Availability: InStock

$ 4,598⁵⁴ $ 4,651³⁵

Can I pick up my order or have it installed at your shop?

Absolutely. We offer local pickup on most products and full professional installation at our shop in Washington, MO. Whether you just want to grab your parts or have our techs handle the install, we’ve got you covered. Give us a quick call at 636-429-7020 or message us to schedule a visit — we’ll make sure the parts are ready when you arrive.

How do I know if this part fits my vehicle?

Unsure if it’ll fit? No problem — that’s what we’re here for. Send us your vehicle’s year, make, and model, and we’ll verify fitment before you order. We can also point you toward compatible upgrades or supporting parts if needed.

What if I need to return a product or it’s defective?

Most unused items can be returned within 30 days in their original packaging. Some products are covered by a manufacturer’s warranty as well. If something arrives damaged or doesn’t meet your expectations, just let us know — we’ll help you get it replaced, refunded, or repaired. (Tracking updates are also emailed automatically once your order ships.)

What's the lead time on custom or fabricated parts?

Many of our parts are built to order — especially fabricated or performance components. These can take additional time to produce before shipping. Lead times vary by manufacturer and demand, but we’ll always keep you updated along the way. If you’re working on a tight schedule, reach out before ordering at 636-429-7020 and we’ll confirm current availability or estimated ship dates.

Description

The 300 Series Toyota Land Cruiser is a luxurious vehicle packed with “all the bells and whistles”, but underneath all the sophistication it is still a very capable vehicle that sees use both on and off-road worldwide. While the 300 Series has exceptional ride characteristics in stock form, the suspension needs a serious upgrade if the vehicle is to serve any measurable amount of time in the dirt. ICON Vehicle Dynamics has addressed this need for a comprehensive suspension solution and developed several suspension systems that drastically increase the overall ability of the 2022-2023 Toyota Land Cruiser 300 Series.

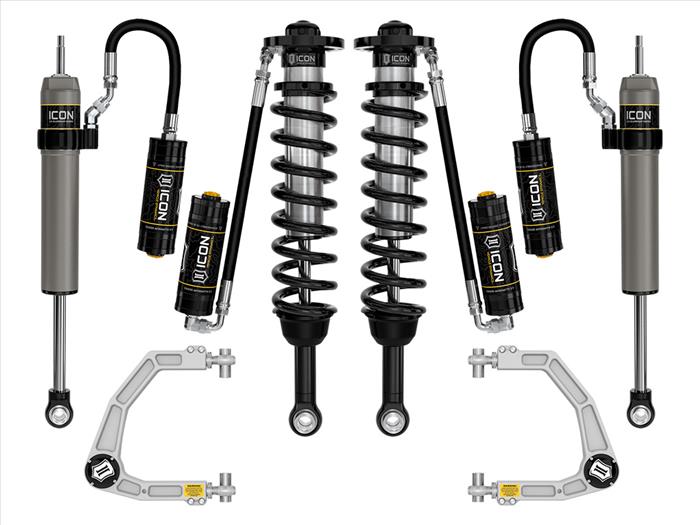

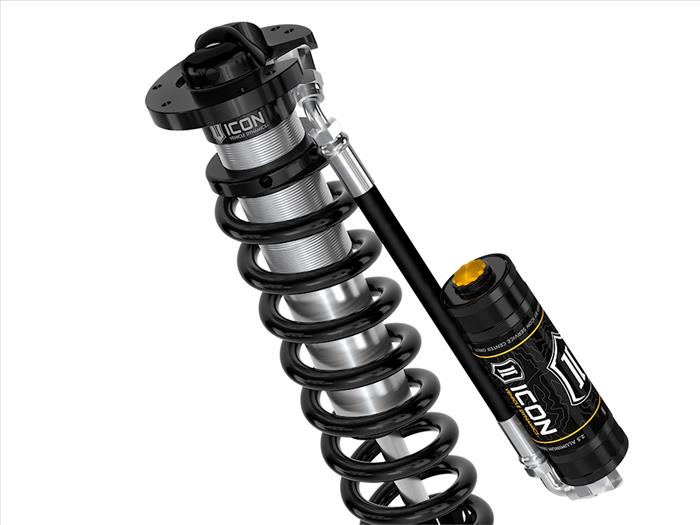

This Stage 2 system features the 2022-2023 Toyota Land Cruiser 300 Series VS 2.5 Series remote reservoir front coilovers. These adjustable coilovers allow up to 1-3” of lift height adjustability over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.

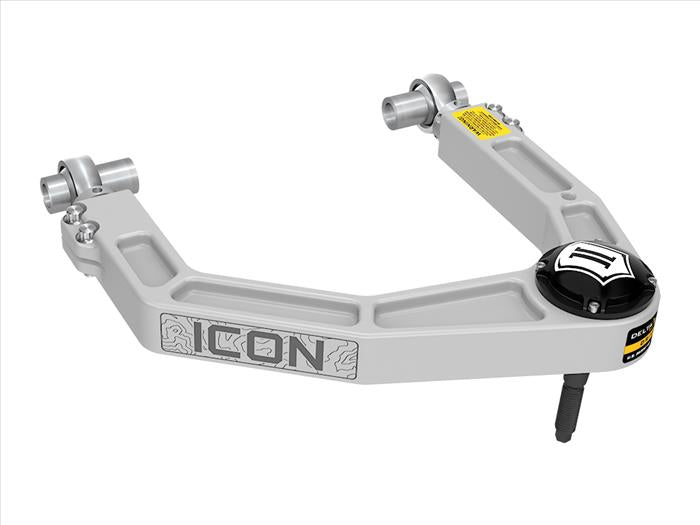

The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the 2022-2023 Toyota Land Cruiser 300 Series with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind.

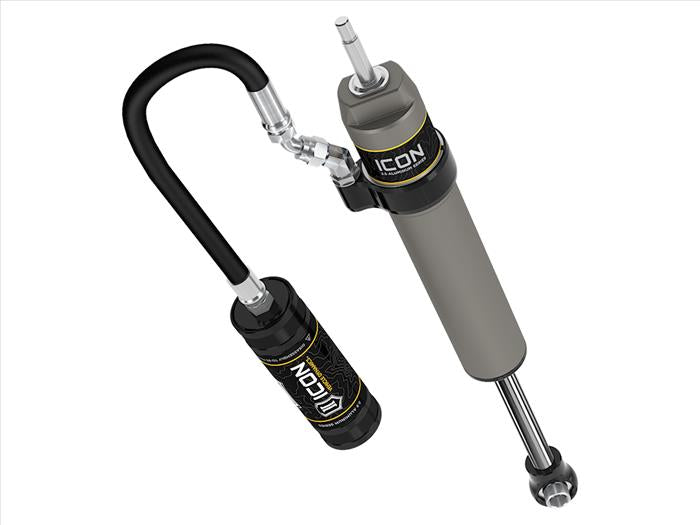

Rounding out the Stage 2 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2022-2023 Land Cruiser 300 Series. The 2.5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Their pairing with the ICON V.S. 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Land Cruiser.

Features & Benefits:

Bolt-on design means no cutting or welding necessary for install
Increased wheel travel and ride quality over stock
Improved vehicle dynamics and decreased body roll
Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
Height adjustable coilovers provide 1-3" of front lift height
ICON engineered front coilover springs
Vehicle-specific tuned front and rear shocks provide superior damping and control
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
Remote reservoirs improve heat dissipation to reduce shock fade during prolonged use
Shocks are fully rebuildable and revalveable

NOTES:

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
APPLICATION NOTE #142: Not Compatible With Vehicles Equipped With Load-Leveling Rear Height Control Air Suspension.
TECH NOTE: Included rear shocks are compatible with 0-2" of rear lift over stock
