Description
Description
Carli Suspension

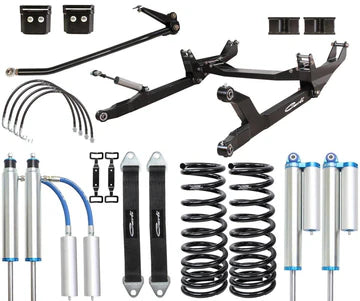

Carli Pintop 2.5 System Base 6in Lift 2003–2009 Ram 2500/3500 Diesel 4x4
The Carli Pintop 2.5 System brings Carli’s popular Pintop performance package into a 6-inch lift format for Dodge Ram 2500 and 3500 diesel 4x4 trucks. Based on Carli’s 6-inch Performance 2.5 system, this package delivers incredible on-road ride quality with significantly improved off-road performance through Carli-tuned King 2.5-inch remote reservoir shocks and a complete supporting suspension package.
This system is designed for customers looking for substantial on-road and off-road performance in a taller stance. It was tuned to ride best with full progressive leaf springs and 17 or 18-inch wheels with 37-inch Toyo M/T tires at 40 PSI front and 35 PSI rear.
Key Features:
-
6-inch lift height
-
Custom Carli-tuned front Pintop King 2.5 remote reservoir shocks
-
Custom Carli-tuned rear King 2.5 piggyback shocks
-
Carli 6-inch multi-rate coil springs
-
Carli fabricated radius arms
-
5-leaf progressive spring pack unless full progressive leaf spring option is selected
-
Zinc-plated U-bolts
-
Stainless sway bar end links with F.K. bearings
-
Limit straps
-
Adjustable track bar
-
Track bar drop bracket
-
Front bump stop drops
-
Rear bump stop drops
-
Reservoir mounts
-
Designed and tuned in-house for substantial on-road and off-road performance
Wheel and Tire Notes:
-
Fits up to a 37-inch tire with the included radius arm system.
-
Recommended wheel diameter is 17 to 18 inches.
-
Recommended backspacing is 4.5 inches.
-
This system was tuned with 37-inch Toyo M/T tires at 40 PSI front and 35 PSI rear.
Notes:
-
Full progressive leaf springs are strongly recommended for best ride quality.
-
17 or 18-inch wheels are strongly recommended.
-
All Carli 6-inch systems require the truck’s front driveshaft to be extended by 2 inches.
-
Carli 6-inch systems require a drop pitman arm.
-
Drop pitman arm is available as an option on the product page.
-
2010 and newer vehicles have two possible sway bar end link sizes.
-
Place a socket on the nut that compresses the rubber end link bushings. Fitment of an 18mm socket indicates the need for the 12mm part number.
Vehicle Fitment:
-
2003, 2005–2009 Dodge Ram 2500 Laramie
-
2006–2009 Dodge Ram 2500 Power Wagon
-
2003–2009 Dodge Ram 2500 SLT
-
2006–2007 Dodge Ram 2500 Sport
-
2003–2009 Dodge Ram 2500 ST
-
2008–2009 Dodge Ram 2500 SXT
-
2006–2007 Dodge Ram 2500 TRX4
-
2003–2009 Dodge Ram 3500 Laramie
-
2003–2009 Dodge Ram 3500 SLT
-
2006–2007 Dodge Ram 3500 Sport
-
2003–2009 Dodge Ram 3500 ST
-
2008–2009 Dodge Ram 3500 SXT
-
2007 Dodge Ram 3500 TRX4
SKU: CS-DPT25-6-03-D
