Description
Description
Carli Suspension

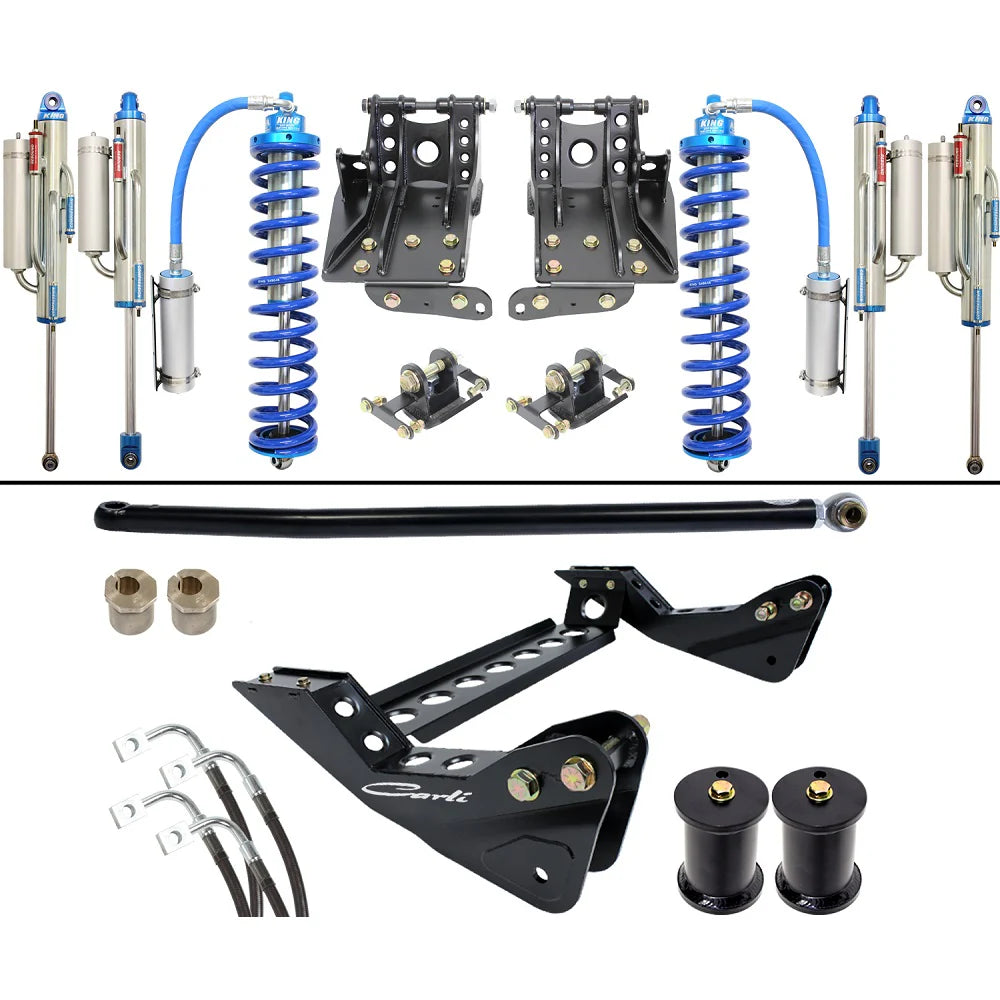

Carli Coilover 2.5 Bypass System - Base - 4.5in Lift - 2005–2007 Ford F-250/F-350
The Carli Coilover 2.5 Bypass System is the most capable off-road suspension offering in the lineup, engineered for drivers who demand maximum performance without sacrificing on-road comfort. Featuring dual front shocks and height-adjustable coilovers, this system delivers exceptional control, increased travel, and ultimate bottom-out resistance for aggressive terrain.

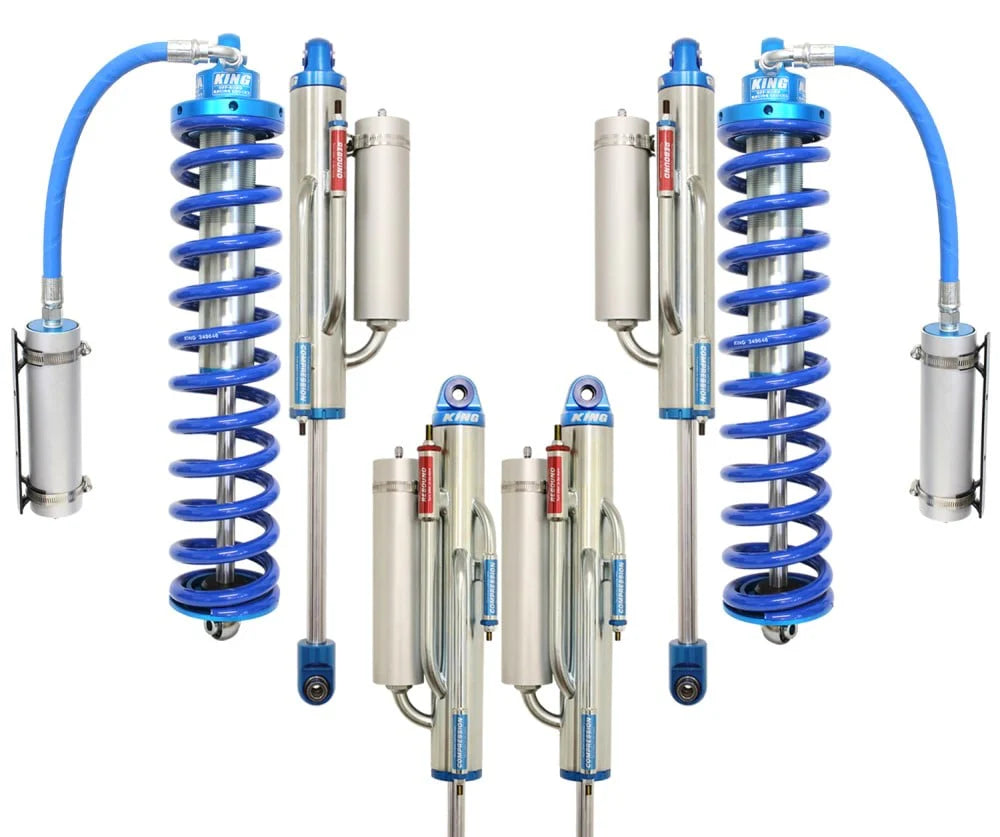

Built around King 2.5” front coilovers paired with 2-tube front bypass shocks and 3-tube rear bypass shocks, this system provides multiple damping zones for a smooth ride during normal driving while delivering progressive resistance during large impacts. The result is a highly tunable suspension that excels in extreme off-road environments while remaining composed on the street.
Key Features:
-
King 2.5” front coilovers with height adjustability
-
Dual front shock setup with 2-tube bypass shocks
-
12” stroke rear 3-tube bypass shocks with oversized rebound tube
-
Fully adjustable external bypass tubes for compression and rebound tuning
-
Carli-specific, blueprinted shock tuning for heavy-duty applications
-
17-4 stainless steel shock shafts for durability and corrosion resistance
-
Fabricated coilover mounts for proper fitment and increased travel
-
Radius arm drop brackets for proper suspension geometry
-
Adjustable track bar to center the front axle
-
Stainless steel brake lines for extended travel and improved braking feel
-
Bump stop drops to prevent over-compression
-
Caster correction shims for improved steering feel
Performance Notes:
-
Provides 4.5” of front lift with significantly increased suspension travel
-
Height adjustable to compensate for added weight such as bumpers or winches
-
Designed for extreme off-road use with excellent on-road manners
-
Fully tunable suspension for ride comfort or aggressive performance
-
External bypass shocks may produce audible clicking during operation
-
Full progressive rear leaf springs increase travel but reduce payload capacity
-
Recommended upgrades include differential guard, high mount steering stabilizer, and fabricated radius arms
-
Roll cage recommended for aggressive off-road use
-
Optimized around 17” wheels with 37” tires for maximum performance
-
Factory wheels should not be used with oversized tires due to clearance concerns
Vehicle Fitment:
-
2005–2007 Ford F-250 Super Duty
-
2005–2007 Ford F-350 Super Duty
SKU: CS-F45-CO25-BYP-05
