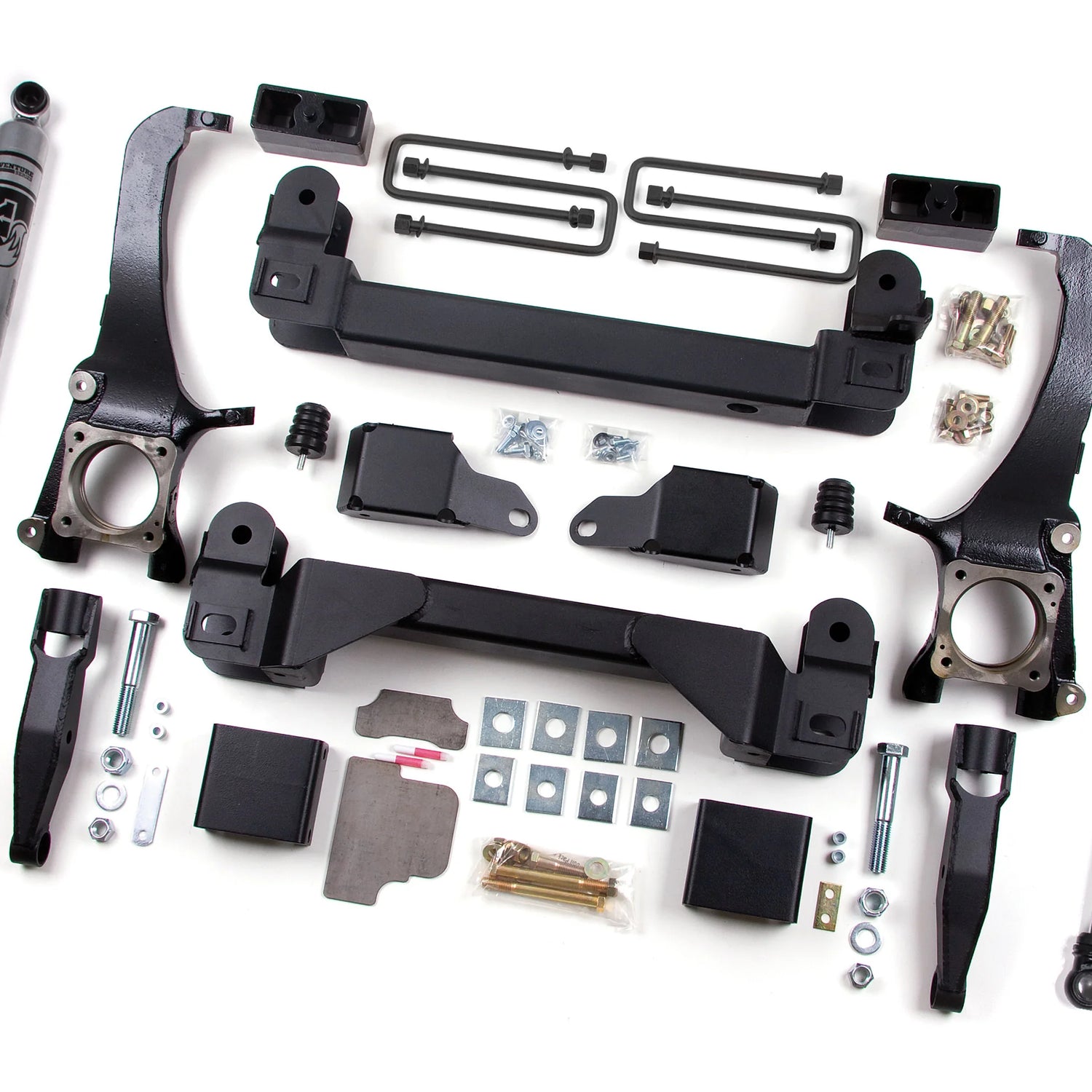

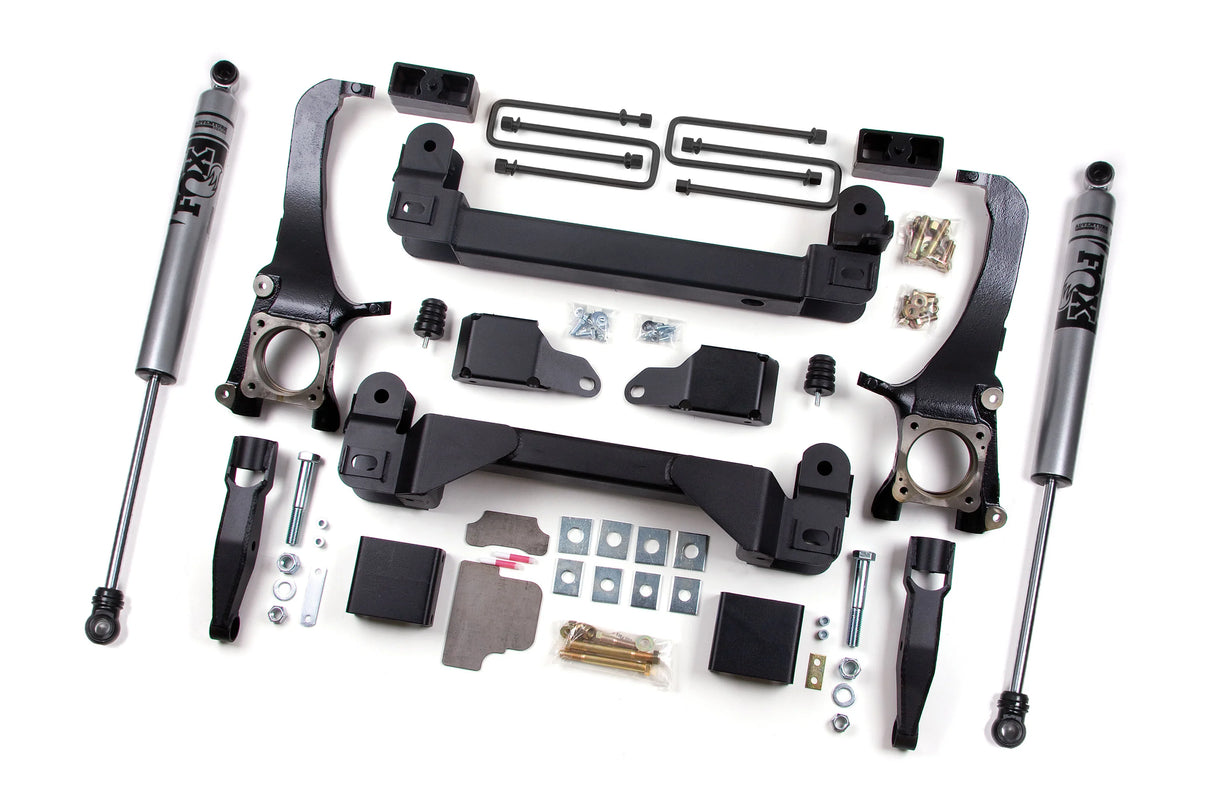

Zone Offroad 16-21 Tundra 5in Suspension System Lift Kit w/Fox 2.0 Adventure Series Shocks
Can I pick up my order or have it installed at your shop?
Can I pick up my order or have it installed at your shop?
Absolutely. We offer local pickup on most products and full professional installation at our shop in Washington, MO. Whether you just want to grab your parts or have our techs handle the install, we’ve got you covered. Give us a quick call at636-429-7020or message us to schedule a visit — we’ll make sure the parts are ready when you arrive.
How do I know if this part fits my vehicle?
How do I know if this part fits my vehicle?
Unsure if it’ll fit? No problem — that’s what we’re here for. Send us your vehicle’s year, make, and model, and we’ll verify fitment before you order. We can also point you toward compatible upgrades or supporting parts if needed.
What if I need to return a product or it’s defective?
What if I need to return a product or it’s defective?
Most unused items can be returned within 30 days in their original packaging. Some products are covered by a manufacturer’s warranty as well. If something arrives damaged or doesn’t meet your expectations, just let us know — we’ll help you get it replaced, refunded, or repaired. (Tracking updates are also emailed automatically once your order ships.)
What's the lead time on custom or fabricated parts?
What's the lead time on custom or fabricated parts?
Many of our parts are built to order — especially fabricated or performance components. These can take additional time to produce before shipping. Lead times vary by manufacturer and demand, but we’ll always keep you updated along the way. If you’re working on a tight schedule, reach out before ordering at636-429-7020and we’ll confirm current availability or estimated ship dates.
Description
Description
Features & Benefits
- High strength crossmembers to correct lower control arm positioning.
- Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility.
- Lower strut extensions to provide lift and install easily.
- Weld-in chassis plates add strength and rigidity.
- Rear lift blocks and U-bolts to lift and level the stance.
- Sway bar, brake line, and bump stop relocation brackets to correct operating angles
Recommended Tires & Wheels
(Trimming may be required)
- 35 x 12.5 with 18 x 9 and 5.5 in. Backspace
- 35 x 12.5 with 20 x 9 and 6.25 in. Backspace
- 35 x 12.5 with 22 x 9 and 6.25 in. Backspace
Shock Option
FOX 2.0 Adventure Series
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
This part fits:
| Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
|---|---|---|---|---|---|---|---|
| 2016 | Toyota | Tundra | 1794 Edition | 4WD | ALL | Front and Rear | 5" |
| 2016 | Toyota | Tundra | Limited | 4WD | ALL | Front and Rear | 5" |
| 2016 | Toyota | Tundra | Platinum | 4WD | ALL | Front and Rear | 5" |
| 2016 | Toyota | Tundra | SR | 4WD | ALL | Front and Rear | 5" |
| 2016 | Toyota | Tundra | SR5 | 4WD | ALL | Front and Rear | 5" |
| 2017 | Toyota | Tundra | 1794 Edition | 4WD | ALL | Front and Rear | 5" |
| 2017 | Toyota | Tundra | Limited | 4WD | ALL | Front and Rear | 5" |
| 2017 | Toyota | Tundra | Platinum | 4WD | ALL | Front and Rear | 5" |
| 2017 | Toyota | Tundra | SR | 4WD | ALL | Front and Rear | 5" |
| 2017 | Toyota | Tundra | SR5 | 4WD | ALL | Front and Rear | 5" |
| 2018 | Toyota | Tundra | ALL | 4WD | ALL | Front and Rear | 5" |
| 2019 | Toyota | Tundra | 1794 | ALL | ALL | Front and Rear | 5" |
| 2019 | Toyota | Tundra | 1794 Edition | 4WD | ALL | Front and Rear | 5" |
| 2019 | Toyota | Tundra | Limited | 4WD | ALL | Front and Rear | 5" |
| 2019 | Toyota | Tundra | Platinum | 4WD | ALL | Front and Rear | 5" |
| 2019 | Toyota | Tundra | SR | 4WD | ALL | Front and Rear | 5" |
| 2019 | Toyota | Tundra | SR5 | 4WD | ALL | Front and Rear | 5" |
| 2020 | Toyota | Tundra | 1794 | ALL | ALL | Front and Rear | 5" |
| 2020 | Toyota | Tundra | 1794 Edition | 4WD | ALL | Front and Rear | 5" |
| 2020 | Toyota | Tundra | Limited | 4WD | ALL | Front and Rear | 5" |
| 2020 | Toyota | Tundra | Platinum | 4WD | ALL | Front and Rear | 5" |
| 2020 | Toyota | Tundra | SR | 4WD | ALL | Front and Rear | 5" |
| 2020 | Toyota | Tundra | SR5 | 4WD | ALL | Front and Rear | 5" |
| 2020 | Toyota | Tundra | TRD Off-Road | ALL | ALL | Front and Rear | 5" |
| 2020 | Toyota | Tundra | TRD Sport | ALL | ALL | Front and Rear | 5" |
| 2021 | Toyota | Tundra | 1794 | ALL | ALL | Front and Rear | 5" |
| 2021 | Toyota | Tundra | 1794 Edition | 4WD | ALL | Front and Rear | 5" |
| 2021 | Toyota | Tundra | Base | ALL | ALL | Front and Rear | 5" |
| 2021 | Toyota | Tundra | Limited | 4WD | ALL | Front and Rear | 5" |
| 2021 | Toyota | Tundra | Nightshade | 4WD | ALL | Front and Rear | 5" |
| 2021 | Toyota | Tundra | Platinum | 4WD | ALL | Front and Rear | 5" |
| 2021 | Toyota | Tundra | SR | 4WD | ALL | Front and Rear | 5" |
| 2021 | Toyota | Tundra | SR5 | 4WD | ALL | Front and Rear | 5" |
| 2021 | Toyota | Tundra | Trail | 4WD | ALL | Front and Rear | 5" |
| 2021 | Toyota | Tundra | TRD Off-Road | ALL | ALL | Front and Rear | 5" |
| 2021 | Toyota | Tundra | TRD Off-Road Premium | ALL | ALL | Front and Rear | 5" |
| 2021 | Toyota | Tundra | TRD Sport Premium | ALL | ALL | Front and Rear | 5" |
