Description
Description
Carli Suspension
Coilover Bypass 2.5 System - 2.5/3.5in Lift - 2008-10 Ford F250/F350 Diesel
The Carli Coilover Bypass System is one of the most capable off-road suspension systems available for the 2008–2010 Super Duty platform. Designed to deliver exceptional performance both on-road and off-road, this system combines premium ride quality with extreme terrain capability through advanced shock technology and precision tuning.

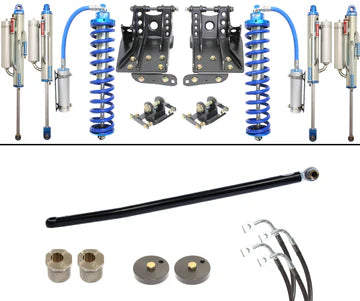

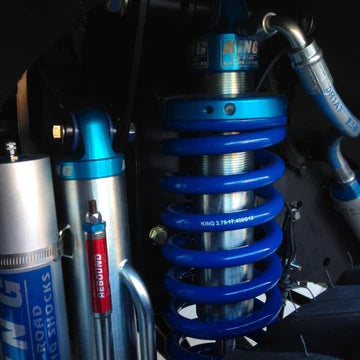

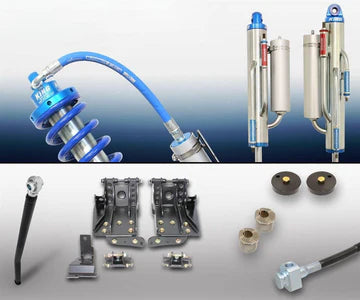

Built around Carli-spec King 2.5" coilovers and multi-tube bypass shocks, this system offers unmatched control, adjustability, and bottom-out resistance. With multiple external bypass zones, users can fine-tune compression and rebound characteristics to suit everything from daily driving to aggressive off-road use.
Key Features:
-
Provides approximately 2.5" of front lift with adjustability up to ~3.5"
-
Carli-SPEC King 2.5" front coilovers with custom tuning
-
8" stroke front 2-tube bypass shocks for enhanced front suspension control
-
12" stroke rear 3-tube bypass shocks with oversized rebound tube
-
Fully adjustable bypass tubes for compression and rebound tuning
-
Custom Carli-designed shock pistons for optimized damping performance
-
17-4 stainless steel shock shafts for superior durability and corrosion resistance
-
King shock oil rated to -55°F for extreme temperature performance
-
Adjustable track bar, caster shims, and stainless brake lines included
-
Increased wheel travel and improved off-road capability
Notes:
-
Bypass shocks feature external tubes and may produce audible clicking during operation
-
System is fully adjustable for ride comfort or maximum off-road performance
-
Full Progressive Leaf Spring Pack reduces load capacity by approximately 15% compared to stock F-250
-
Off-road focused system; upgrades such as fabricated radius arms, steering stabilizer, and differential protection are recommended
-
Roll cage is recommended for extreme off-road use
-
Shocks utilize plated steel bodies; protective wrapping is recommended in harsh environments
Vehicle Fitment:
-
2008–2010 Ford F-250 Super Duty
-
2008–2010 Ford F-350 Super Duty
SKU: CS-FLVL-CO25-BYP-08
