Description
Description
Carli Suspension

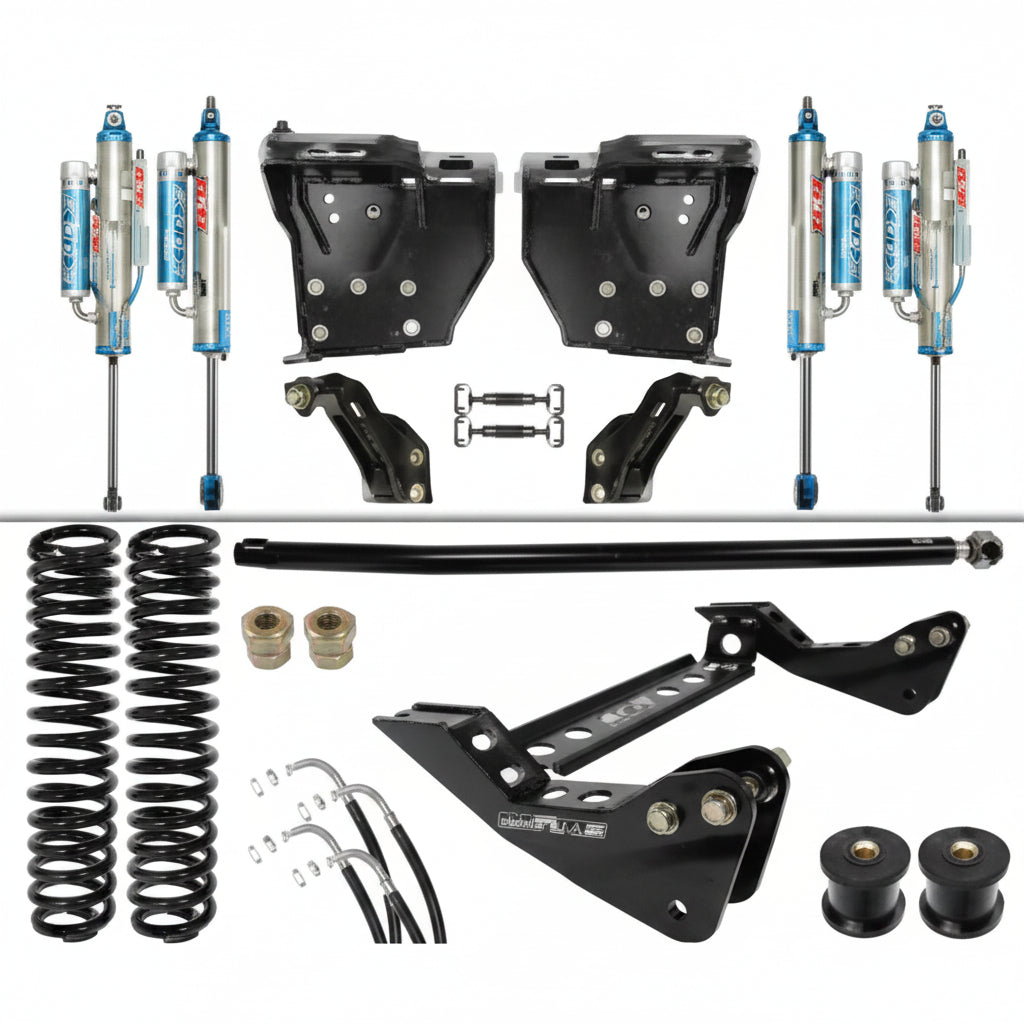

Carli Unchained 3.0 Bypass System - Base - 4.5in Lift - 2008–2010 Ford F-250/F-350
The Carli Unchained 3.0 Bypass System is engineered for drivers seeking extreme off-road capability paired with refined on-road manners. Built around massive King 3.0” bypass shocks, this system delivers unmatched control and tunability, allowing the suspension to adapt seamlessly from daily driving to aggressive terrain.
Utilizing external bypass tubes with one-way check valves, this system allows fluid to bypass the piston during normal driving for a smooth ride, then progressively increases damping during large impacts for maximum control and bottom-out resistance. This creates a highly versatile suspension that can be tuned to match your exact driving style and terrain demands.
Key Features:
-
King 3.0” 2-tube front and 4-tube rear piggyback bypass shocks
-
Fully adjustable external bypass tubes for compression and rebound tuning
-
Fabricated coil buckets for increased strength and suspension travel
-
Complete front and rear shock package with custom mounting solutions
-
Radius arm drop brackets for proper suspension geometry
-
Adjustable track bar to re-center the front axle
-
Bump stop drops to prevent over-compression
-
Stainless steel brake line kit for extended travel and durability
-
Caster correction shims for improved steering feel and alignment
-
Rear shock mounts designed to accommodate large bypass shocks
Performance Notes:
-
Provides 4.5” of front lift with increased wheel travel
-
Designed for extreme off-road performance beyond factory chassis limits
-
Fully tunable ride characteristics for comfort or performance
-
External bypass shocks may produce audible clicking during operation
-
Roll cage and axle truss recommended for aggressive off-road use
-
Long travel airbags available to help restore payload capacity
-
Recommended wheel setup: 17–18” wheels, max 9” width, 4.5–5” backspacing with 37” tires
-
Oversized tires on factory wheels are not recommended due to clearance concerns
Vehicle Fitment:
-
2008–2010 Ford F-250 Super Duty
-
2008–2010 Ford F-350 Super Duty
SKU: CS-F45-UC30-08
