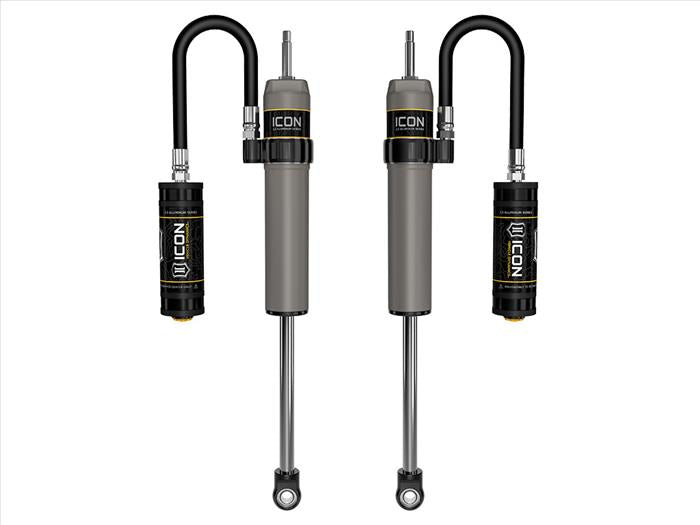

ICON 2005-2024 Ford Super Duty 4WD, 0-2.5” Lift, Front, V.S. 2.5 Aluminum Series Shock Absorbers, Remote Reservoir, Pair
Couldn't load pickup availability
Can I pick up my order or have it installed at your shop?
Can I pick up my order or have it installed at your shop?
Yes! We offer local pickup on most products and professional installation at our shop at 25 Town and Country Drive, Washington, MO. 63390. Contact us at 636-429-7020 to schedule a time to come in.
How do I know if this part fits my vehicle?
How do I know if this part fits my vehicle?
If no fitment info is listed, contact us at 636-429-7020 with your vehicle’s year, make, and model — we’ll help you find the right part.
What if I need to return a product or it’s defective?
What if I need to return a product or it’s defective?
Most items can be returned within 30 days if unused and in original packaging. Many products also include a manufacturer warranty. Contact us at 636-429-7020 for assistance.
How can I track my order?
How can I track my order?
Once your order ships, you’ll get a tracking number via email to monitor your shipment.
ICON 2005-2024 Ford Super Duty 4WD, 0-2.5” Lift, Front, V.S. 2.5 Al...
Description
Description
ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.
Features & Benefits:
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- Nitrogen charged monotube design with remote reservoir
- PTFE lined spherical bearings and application specific mounting hardware
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- 7/8” diameter induction hardened, chrome plated shock shaft
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 6061 aircraft grade aluminum CNC machined components
- 100% Rebuildable
- 100% Revalveable
NOTES:
- TECH NOTE: Compatible with 0-3” of front lift over stock of 2005-2019 F-250/F-350/F-450 4WD
- TECH NOTE: Compatible with 0-3.75” of front lift over stock of 2020-2022 F-250/F-350 4WD without Tremor package
- TECH NOTE: Compatible with 0-2.75” of front lift over stock of 2020-2022 F-250/F-350 4WD equipped with Tremor package
- TECH NOTE: Compatible with 0-3" of front lift over stock of 2023-2024 F-250/F-350 4WD without Tremor package
- TECH NOTE: Compatible with 0-2” of front lift over stock of 2023-2024 F-250/F-350 4WD equipped with Tremor package
- TECH NOTE: Compatible with 0-3.75” of front lift over stock of 2020-2022 F-450 4WD
- TECH NOTE: Compatible with 0-3” of front lift over stock of 2023-2024 F-450 4WD
- TECH NOTE: Can be installed as secondary shocks in OE location with ICON 2.5-3" lift coilover conversions
- TECH NOTE: Also requires Reservoir Doubler Kit part number 611003 if installing as secondary shock along with ICON front coilover conversion
ICON 2005-2024 Ford Super Duty 4WD, 0-2.5” Lift, Front, V.S. 2.5 Aluminum Series Shock Absorbers, Remote Reservoir, Pair | SKU: 67800P
