Description
Description

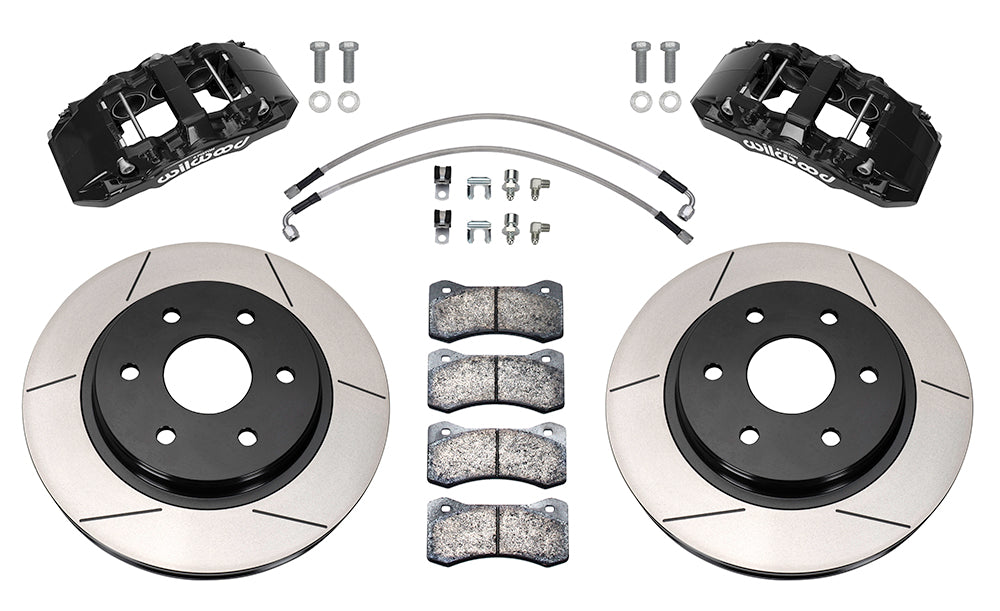

AERO6-DM Direct-Mount Truck Front Brake Kit
AERODM Six Piston calipers were designed for the specific purpose of providing a direct mount, large capacity braking solution with large diameter rotors for heavy weight and extreme duty vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. OEM style 1 piece 13.38" to 13.56" diameter rotors provide maximum cooling for sustained high heat durability.
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-16830-BK |
| Right Hand - Part No: | 120-16829-BK |
| Type: | AERODM |
| Finish Color: | Black Powder Coat |
| Piston Count: | 6 |
| Piston 1 Bore (in): | 1.75 |
| Piston 2 Bore (in): | 1.62 |
| Piston 3 Bore (in): | 1.62 |
| Piston Area (In²): | 6.52 |
| Piston Type: | Stainless |
| Mount Type: | Lug |
| Brake Pad Plate: | 6617 |
| Brake Pad Area (In²): | 11.1 |
| Brake Pad Volume (In³): | 5.2 |
| Pad Compound: | BP-22 |
 AERODM Caliper - Black Powder Coat
|
|
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-16716-GTB |
| Right Hand - Part No: | 160-16716-GTB |
| Type: | GTB Vented Rotor & Hat |
| Style: | GT Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Iron |
| Outside Diameter (in): | 13.38 |
| Width (in): | 1.25 |
| Vane Count: | 48 V |
| Design Type: | GT-BLK |
| Burnished: | No |
| Dynamically Balanced: | Yes |
 GTB Vented Rotor & Hat - Iron - Black Electro Coat
|
|
| Rotor Hats | |
|---|---|
| Hat - Part No: | |
| Type: | |
| Material: | |
| Finish Color: | |
| Hat Offset Dimension (in): | |
| Bolt Circle 1: | |
| Bolt Circle 2: | |
| Bolt Circle 3: | |
| Stud Diameter - BC 1: | |
| Stud Diameter - BC 2: | |
| Stud Diameter - BC 3: | |
| Hubs | |
|---|---|
| Hub - Part No: | |
| Type: | |
| Material: | |
| Finish Color: | |
| Mount Style: | |
| Bolt Circle 1: | |
| Bolt Circle 2: | |
| Bolt Circle 3: | |
| Stud Diameter - BC 1: | |
| Stud Diameter - BC 2: | |
| Stud Diameter - BC 3: | |
| Caliper Parts | |
|---|---|
| O-ring Kit: | 130-17055 |
| Replacement Dustboot: | N-A |
| Replacement Piston 1: | 200-7531 |
| Replacement Piston 2: | 200-7519 |
| Replacement Piston 3: | 200-7519 |
| Replacement Piston 4: | N-A |
| CrossOver O-Ring Kit: | 130-10540 |
| Crossover Tube: | N-A |
| Self-Bleeder Tube: | N-A |
| Bridge Bolt Kit: | N-A |
| Wear Plate - Left Hand: | 300-5876 |
| Wear Plate - Right Hand: | 300-5876 |
| Pad Retainer: | 180-17957 |
| Bleed Screw Kit: | 220-0627 |
