Description
Description
Carli Suspension

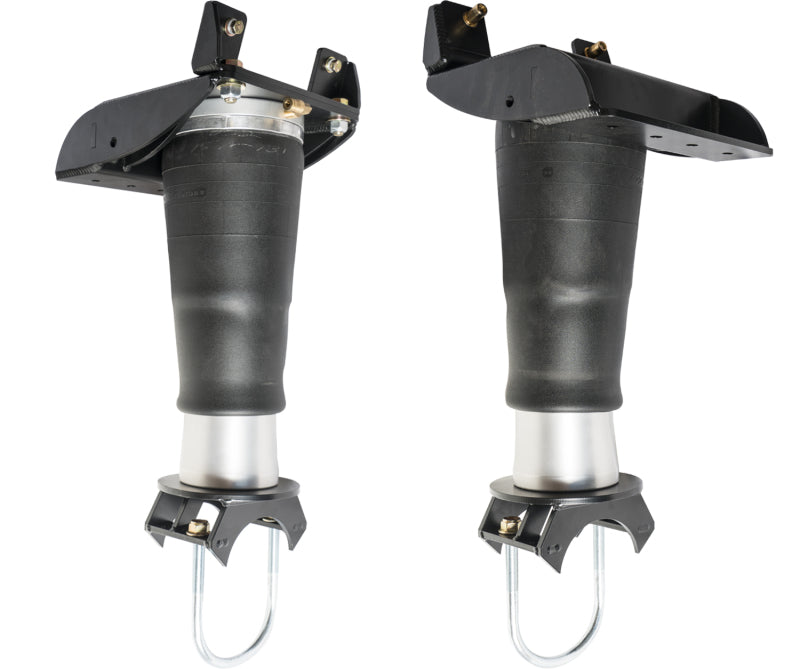

Carli 2013–2018 Ram 3500 4x4 Long Travel Air Bag System 1–2in Rear Lift 4.0in Axle Diameter
The Carli Long Travel Air Bag System is designed for Ram 3500 owners who need increased load capacity without sacrificing suspension travel or ride quality. Built to work especially well with Carli Full Progressive Leaf Springs, this system helps regain lost payload capacity while providing an adjustable solution for towing, hauling, and varying loads.
Unlike traditional air bag systems that can limit suspension travel and degrade ride quality, Carli’s long travel design uses a tapered piston, folding sleeve air bag that does not interfere with suspension performance when not inflated. The bags offer 12 inches of travel, operate from 0 to 100 PSI, and are rated to 2,000 lbs. each at 100 PSI.
Key Features:
-
Long travel rear air bag system
-
Provides 1 to 2 inches of rear lift
-
Designed for 2013–2018 Ram 3500 4x4 trucks with 4.0-inch axle diameter
-
Increases load capacity without sacrificing suspension performance
-
12 inches of air bag travel
-
Tapered piston, folding sleeve bag design
-
Internal bump stop
-
Operating range of 0 to 100 PSI
-
Bags rated to 2,000 lbs. each at 100 PSI
-
Uses industry-standard 1/4-inch airline
-
Can be plumbed into existing on-board air systems
-
Includes components for manual fill setup
-
Suitable for 5th wheels, work trucks, campers, boats, bumper pull trailers, and hauling
Notes:
-
Designed to work with Carli Full Progressive Leaf Springs to regain lost payload capacity.
-
Also works with add-a-packs, but is best suited to full progressive leaf springs for the best balance of unloaded ride quality and payload support.
Vehicle Fitment:
-
2013–2018 Ram 3500
-
Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, SLT, ST, Tradesman
-
SKU: CS-DLTB-13-40
