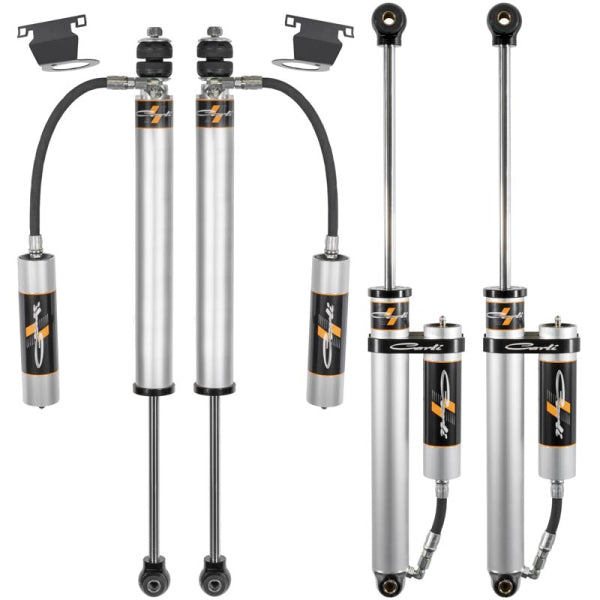

Carli 13-22 Ram 3500 4x4 Backcountry Leveling Shock Set Remote Reservoir

The Carli Suspension Backcountry 2.0 Remote Reservoir Front & Rear Shocks AS-DLVLSPKG-CS20RR-B are designed for those seeking an exceptional on-road and off-road ride quality without breaking the bank. Ideal for drivers who want a bit of dirt-road adventure in their 8,500lb truck, these shocks provide a perfect balance of comfort and performance without compromising the truck's usability and on-road ride quality. No longer limited to highways, gravel roads become enjoyable as they can be tackled at speed with ease and stability.

These shocks are a bit softer on-road compared to the Carli Pintop, but still offer impressive off-road performance for a 2.0" shock. They are specifically tuned to pair with Carli 2.5" Front Springs and Factory Rear Leaf Springs, ensuring a great ride for those looking to take their truck on light off-road terrain while maintaining excellent on-road comfort.

Carli Suspension's extensive experience in shock tuning and manufacturing, honed over two decades in business, has allowed them to collaborate with industry-leading shock manufacturers to fine-tune their products to exceptional standards. These collaborations have led to a deep understanding of shock quality and performance, which has influenced the design and tuning of the Backcountry 2.0 shocks.

Construction Highlights:
The construction of both the Internal Reservoir (IFP) and Remote Reservoir shocks is of the highest quality. The body is made from 6063 aluminum, which ensures excellent heat dissipation and corrosion resistance, and it is anodized for additional protection. The 5/8" shafts are made from hardened and chrome-plated steel, offering enhanced durability. These shocks are filled with a premium 5WT oil that provides a balanced level of lubricity and damping performance across a wide temperature range.

A standout feature of these shocks is the stem-top bushings. Unlike many competitors, Carli uses rubber bushings for the stem-top, as they perform better under the forces applied in this area than poly bushings. This choice ensures better durability and reliability, eliminating a common point of failure in other shocks.

The rod ends are crafted from 6061 billet aluminum, with a high-quality one-piece bushing and zinc-plated crush sleeves for a precision fit and long-lasting performance. The shock's cylinder end cap has a unique design that overlaps the body, providing external support to the internal snap ring. This feature serves as a travel limiter for trucks without Carli radius arms and limit straps, ensuring the shock stays intact during full compression while bearing the load of the axle. The Remote Reservoir variant offers a separate canister for the dividing piston and nitrogen charge, freeing up the shock body for more piston travel. This results in more suspension travel than an IFP with the same mounting dimensions.

FEATURES:

• Carli SPEC 2.0" Remote Reservoir Shocks, Front and Rear
• 9.5" Front and 11" Rear Travel
• Compatible With 2.5" Carli Front Coil Springs And Factory Rear Springs
• Corrosion-Resistant 2.0 Aluminum Body And Reservoir For Long-Lasting Durability And A Sleek, Clean Appearance.

This component can be used in the following systems:
CS-DLVL-BC-CS-13-D
CS-DLVL-BC-CS-19-D
CS-DLVLSPKG-CS20RR-B

Note: Not Compatible With Factory Air Ride.
