Description
Description
Reduce axle wrap and improve traction on your 2017-2026 Ford F-250 or F-350 Super Duty 4WD equipped with a 3.5- to 4-inch diameter axle using the BDS Suspension Recoil Traction Bar Mounting Kit. Engineered with a full-floating design and dual-stage internal compression springs, this heavy-duty system controls axle wrap without restricting suspension travel or articulation. Built for lifted trucks, it delivers enhanced stability, improved traction, and long-lasting durability whether you're towing, hauling, or hitting the trails.
Why Choose the BDS Suspension Recoil Traction Bar Mounting Kit?
- Reduces Axle Wrap – Dual-stage internal compression springs provide adjustable resistance to control axle wrap under acceleration and heavy loads.
- Maintains Full Suspension Travel – Full-floating traction bar design eliminates binding and preserves wheel travel and articulation.
- Easy On-Vehicle Adjustment – Spring preload can be adjusted without removing or disassembling the traction bars.
- Heavy-Duty Steel Construction – Fabricated from 2-inch OD x 3/16-inch wall steel tubing for outstanding strength and durability.
- Serviceable Components – Greaseable, rebuildable flex ends provide dependable long-term performance.

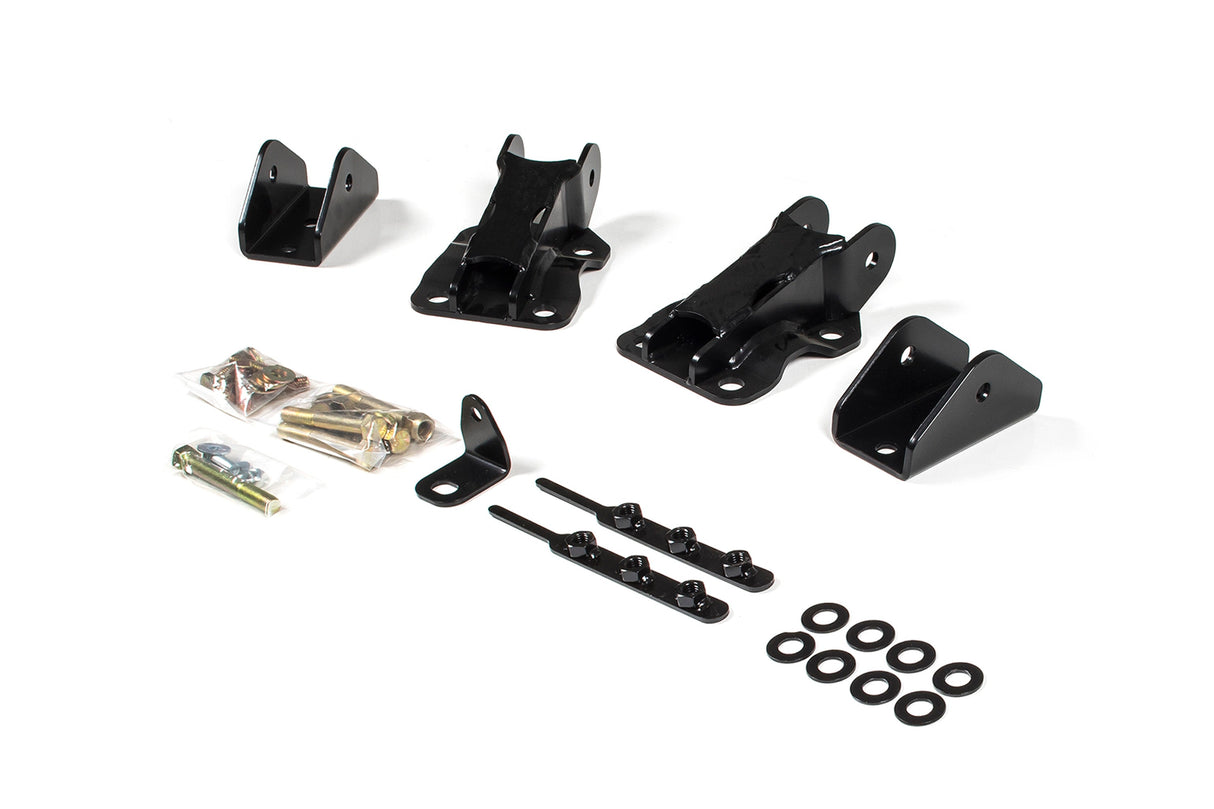

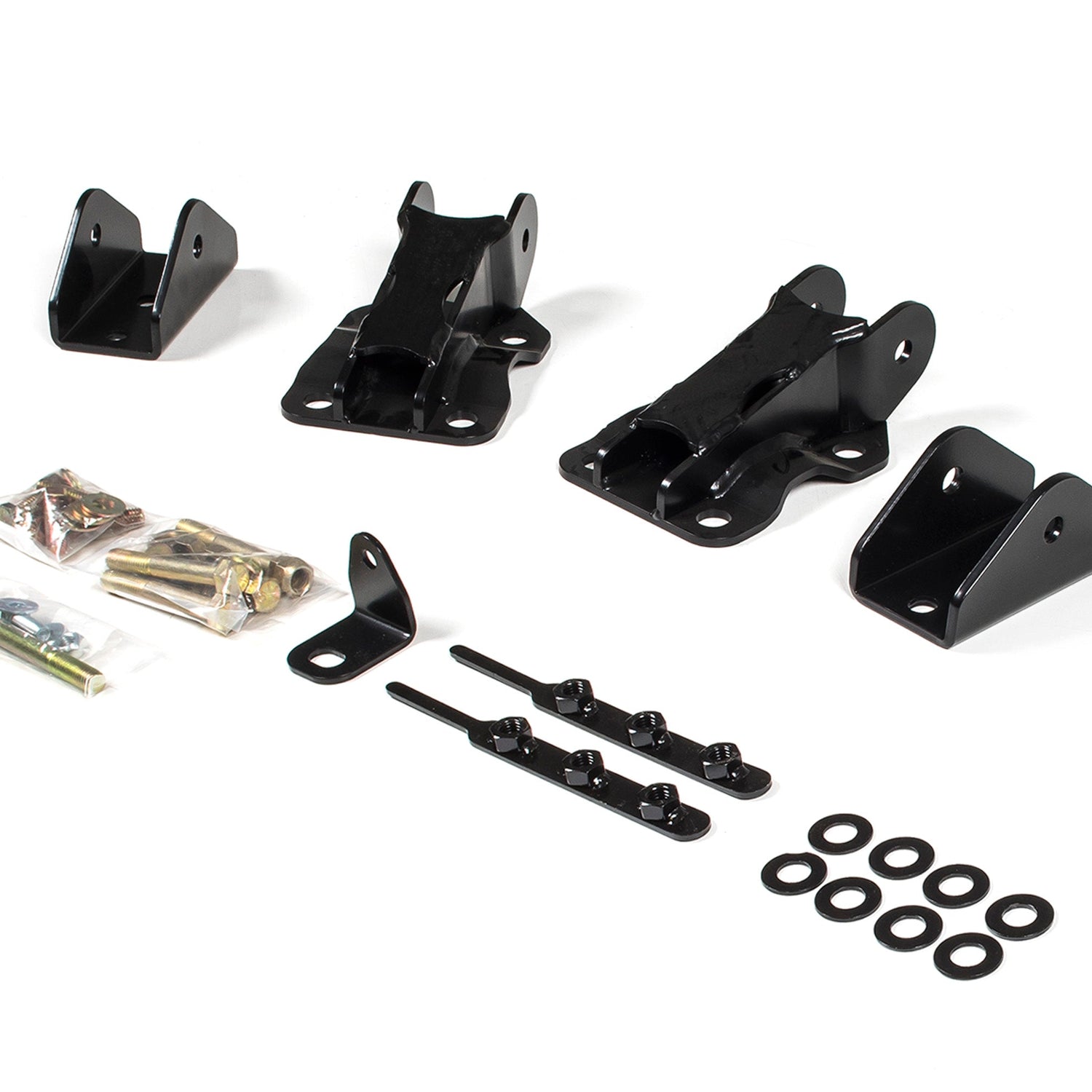

Kit Includes
- Recoil traction bars
- Bolt-on mounting brackets
- Dual-stage internal compression springs
- Large forged greaseable flex ends
- Installation hardware
Installation Highlights
The mounting brackets are designed for a bolt-on installation with only minor drilling required for the frame mounts. The system is compatible with a wide range of lift heights while maintaining unrestricted suspension movement.
Fits These Models
2017-2026 Ford F-250 Super Duty 4WD with a 3.5- to 4-inch diameter axle.
2017-2026 Ford F-350 Super Duty 4WD with a 3.5- to 4-inch diameter axle.
Specifications
- Traction Bar Tubing: 2-inch OD x 3/16-inch wall steel
- Axle End: Large forged greaseable flex end with 1-1/4-inch x 12 threaded shank
- Frame End: Durometer-specific polyurethane bushing
- Articulation: Up to 15 degrees of misalignment in either direction
- Internal Bearings: UHMW polyurethane bearings
Key Features at a Glance
- Dual-Stage Resistance Springs – Adjustable axle wrap control for improved traction and stability.
- Full-Floating Design – Eliminates binding without limiting suspension articulation.
- Adjustable Spring Preload – Fine-tune performance while the bars remain installed.
- Greaseable & Rebuildable Flex Ends – Serviceable design for long-lasting durability.
- Heavy-Duty Steel Construction – Built to withstand demanding towing, hauling, and off-road use.
Notes
- Fits 2017-2026 Ford F-250 and F-350 Super Duty 4WD equipped with a 3.5- to 4-inch diameter axle.
- Compatible with a variety of suspension lift heights.
- Frame mount installation requires minor drilling.
