ICON | SKU: ICOK53233

ICON 2023-2024 Toyota Sequoia, 3-3.75" Lift, Stage 3 Suspension System

Name: ICON 2023-2024 Toyota Sequoia, 3-3.75" Lift, Stage 3 Suspension System
Brand: ICON
SKU: ICOK53233
Price: 2605.37 USD
Availability: InStock

$ 2,605³⁷ $ 2,611¹⁰

Can I pick up my order or have it installed at your shop?

Absolutely. We offer local pickup on most products and full professional installation at our shop in Washington, MO. Whether you just want to grab your parts or have our techs handle the install, we’ve got you covered. Give us a quick call at 636-429-7020 or message us to schedule a visit — we’ll make sure the parts are ready when you arrive.

How do I know if this part fits my vehicle?

Unsure if it’ll fit? No problem — that’s what we’re here for. Send us your vehicle’s year, make, and model, and we’ll verify fitment before you order. We can also point you toward compatible upgrades or supporting parts if needed.

What if I need to return a product or it’s defective?

Most unused items can be returned within 30 days in their original packaging. Some products are covered by a manufacturer’s warranty as well. If something arrives damaged or doesn’t meet your expectations, just let us know — we’ll help you get it replaced, refunded, or repaired. (Tracking updates are also emailed automatically once your order ships.)

What's the lead time on custom or fabricated parts?

Many of our parts are built to order — especially fabricated or performance components. These can take additional time to produce before shipping. Lead times vary by manufacturer and demand, but we’ll always keep you updated along the way. If you’re working on a tight schedule, reach out before ordering at 636-429-7020 and we’ll confirm current availability or estimated ship dates.

Description

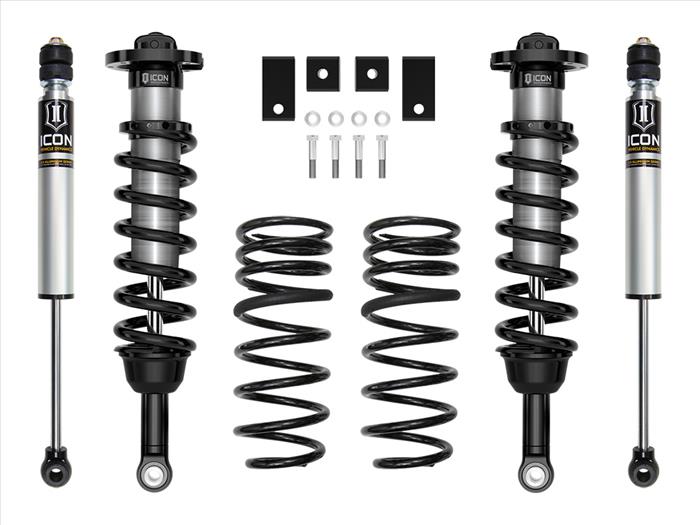

The ICON Vehicle Dynamics Stage 3 complete suspension system for the 2023-2024 Toyota Sequoia is our most basic system that features complete ICON threaded-body V.S. 2.5 Series Coilovers in the front, providing improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35" tires. This system features the innovative new 2.5 EXP Series coilover shocks and sway bar drop kit for the front of the truck along with dual rate coil springs and our proven 2.0 nitrogen charged monotube shocks with internal reservoirs for the rear.

This Stage 3 system features the 2023-2024 Toyota Sequoia VS 2.5 Series internal reservoir front coilovers. These adjustable coilovers allow up to 3-3.75” of lift height adjustability over stock when using the OE upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road.

The included sway bar drop brackets help minimize sway bar link bind through the suspension travel range. This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components.

The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 2” of rear lift height over stock allows a for level stance front to rear.

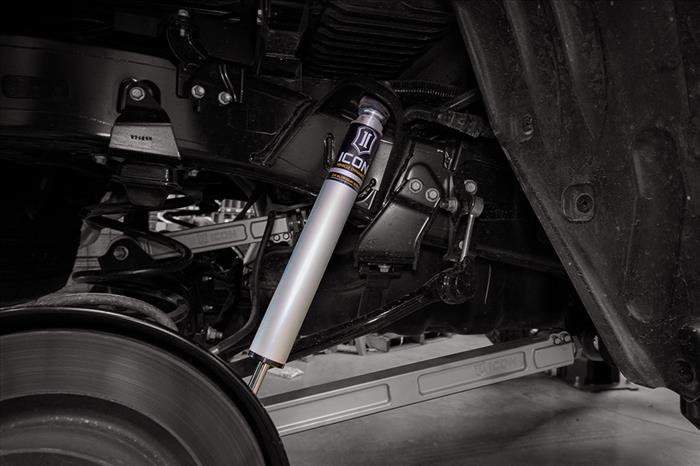

Rounding out the Stage 3 suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2023-2024 Sequoia. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.

Features & Benefits:

Vehicle specific design for 2023-2024 Toyota Sequoia
2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
Adjustable front ride heights from 3-3.75” of front lift over stock when used with stock UCAs
Included sway bar drop brackets reduce bind in OE sway bar links
Allows for full wheel travel without overstressing OE components
Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
All ICON shock absorbers are fully rebuildable and re-tunable

NOTES:

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
APPLICATION NOTE #142: Not Compatible With Tundra/Sequoia Equipped With Load-Leveling Rear Height Control Air Suspension.
APPLICATION NOTE #148: ICON Does Not Recommend Lifting Above 2.25" (Tundra)/3.75" (Sequoia) Without An ICON Upper Control Arm, Failure To Do So Can Result In Improper Wheel Alignment And Cause Damage To Front Axles On 4WD Models
APPLICATION NOTE #149: For 4WD Models Without TRD Off-Road Package ICON Recommends Using ICON Diff Drop (Part# 55156) Or Using Toyota TRD Axles (Part# 434200C020 Driver / 434100C020 Pass). Failure To Do So Could Result In Front Axle Damage. Not Required For TRD Pro.
APPLICATION NOTE #171: If equipped with TRD aluminum skid plate part # 55164 is also required
TECH NOTE: Most Sequoia submodels will have front lift height range of 3-3.75” over stock and 2" of rear lift over stock. Submodels equipped with TRD Off-Road Package and TRD Pro will have a front lift height range of 1-1.75" over stock and remain at stock height in the rear.
