Aeromotive | SKU: AER13204

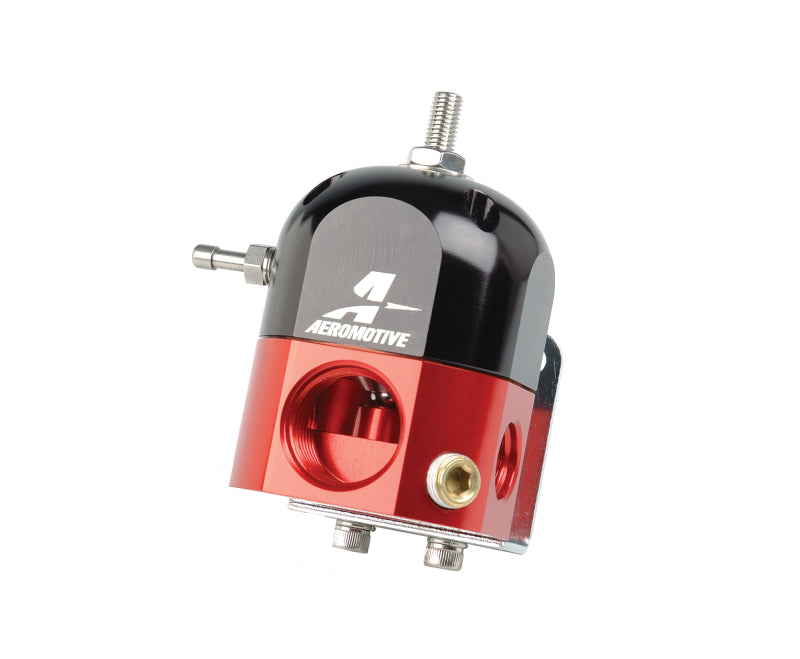

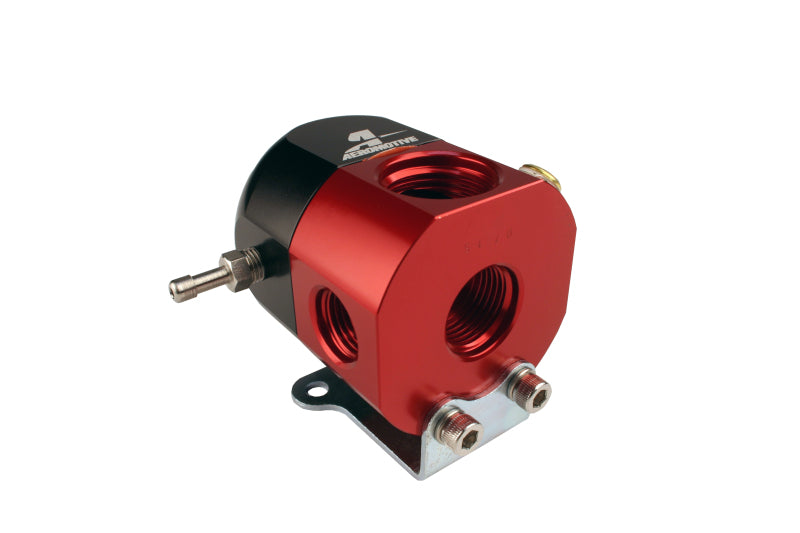

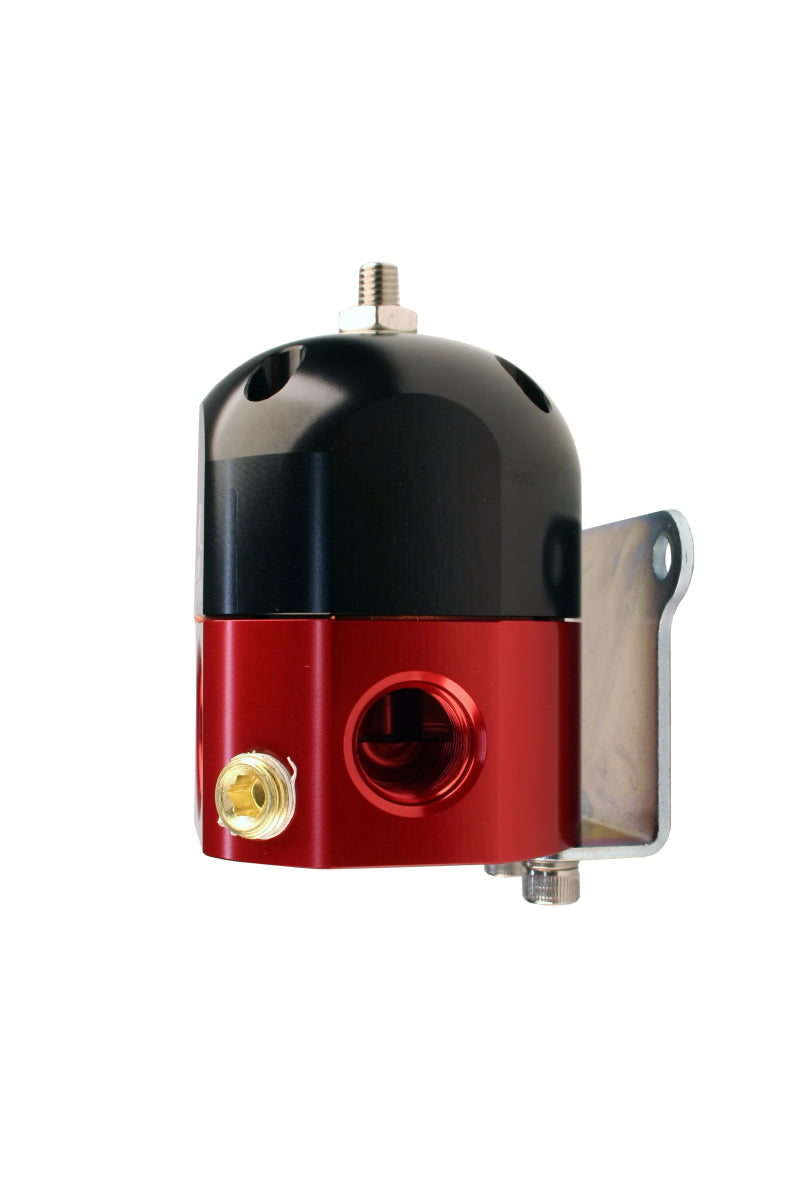

Aeromotive A1000 Carbureted Bypass Regulator - 2-Port

Name: Aeromotive A1000 Carbureted Bypass Regulator - 2-Port
Brand: Aeromotive
SKU: AER13204
Price: 221.55 USD
Availability: InStock

$ 221⁵⁵ $ 246¹⁷

Can I pick up my order or have it installed at your shop?

Yes! We offer local pickup on most products and professional installation at our shop at 25 Town and Country Drive, Washington, MO. 63390. Contact us at 636-429-7020 to schedule a time to come in.

How do I know if this part fits my vehicle?

If no fitment info is listed, contact us at 636-429-7020 with your vehicle’s year, make, and model — we’ll help you find the right part.

What if I need to return a product or it’s defective?

Most items can be returned within 30 days if unused and in original packaging. Many products also include a manufacturer warranty. Contact us at 636-429-7020 for assistance.

How can I track my order?

Once your order ships, you’ll get a tracking number via email to monitor your shipment.

Description

The A1000 Bypass Regulator was designed for use with our A1000 Fuel Pump or similar style EFI pumps in a carbureted application. This regulator is perfect for naturally aspirated or ?blow-through? supercharged engines. Base fuel pressure adjustable from 3-15 PSI. (1) ORB-10 inlet port and (1) ORB-08 return port. P/N 13204 provides (2) ORB-06 outlet ports and 1/8' NPT gauge port. Fuel pressure rises on a 1:1 ratio when referencing boost. Bypass design provides the ultimate, dynamic fuel delivery system. Ideal for converting from fuel injection to carburetion using the stock, in-tank pump. EFI conversions will require a larger-than-stock return line for proper low pressure control.?Note: Requires AN-08 return line from bottom of regulator back to top of the tank.
