Can-Am Maverick X3 XRS 72" Duner OEM Replacement Suspension Kit (RAW)

Part # MAV-05600

Add clearance, strength and appeal to your Can Am X3 with the HCR OEM Duner kit. This true boxed kit follows the HCR portfolio while adding to the aggressive stance of the  X3.

• 1.5" High clearance A-Arm design allows for added ground clearance under key components.

• Manufactured with HCR Elite Alloy; 30% stronger than 4130 Series Chromoly

• Delrin bushings included for increased strength to mounting points.

• Internal catacomb design allow for increased strength from hollow factory design .

• comparable weight to factory with added structure.

• Can convert any 64" Platform X3 to a 72" with unlimited combinations of OE equivalent shocks and axles.

NOTE: 14" WHEELS WILL NOT FIT

ALLOW 1-2 WEEKS FOR POWDER COAT, CALL FOR CURRENT LEAD TIMES

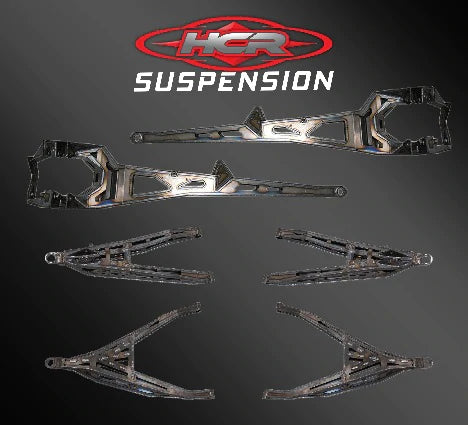

The MAV-05600 72" Suspension Kit includes: 4 Front A-arms (2 upper, 2 lower), 2 Rear Trailing Arms, Delrin Bushings for replacement in the front A-arms, brake line mounting hardware, and shock bolts.

NOTE: For this kit you will need to reuse or replace with OEM/aftermarket components: Ball joints in the front A-arms, Crush Sleeves and wear plates in the Front A-arms, Trailing arm Radial joints, mounting bolts and hardware otherwise not provided.

While we try to keep product in stock, unfortunately we aren’t able to keep all products on the shelf at all times. Some products could have a lead time of 10 weeks or more. We do ask that if you are needing to order a product that is time sensitive that you call us and check stock/eta on that part before proceeding. We also have distributors that might have the part you are looking for in stock and we can point you in that directions.

** 2021 Smart shock Models will need an additional bracket
