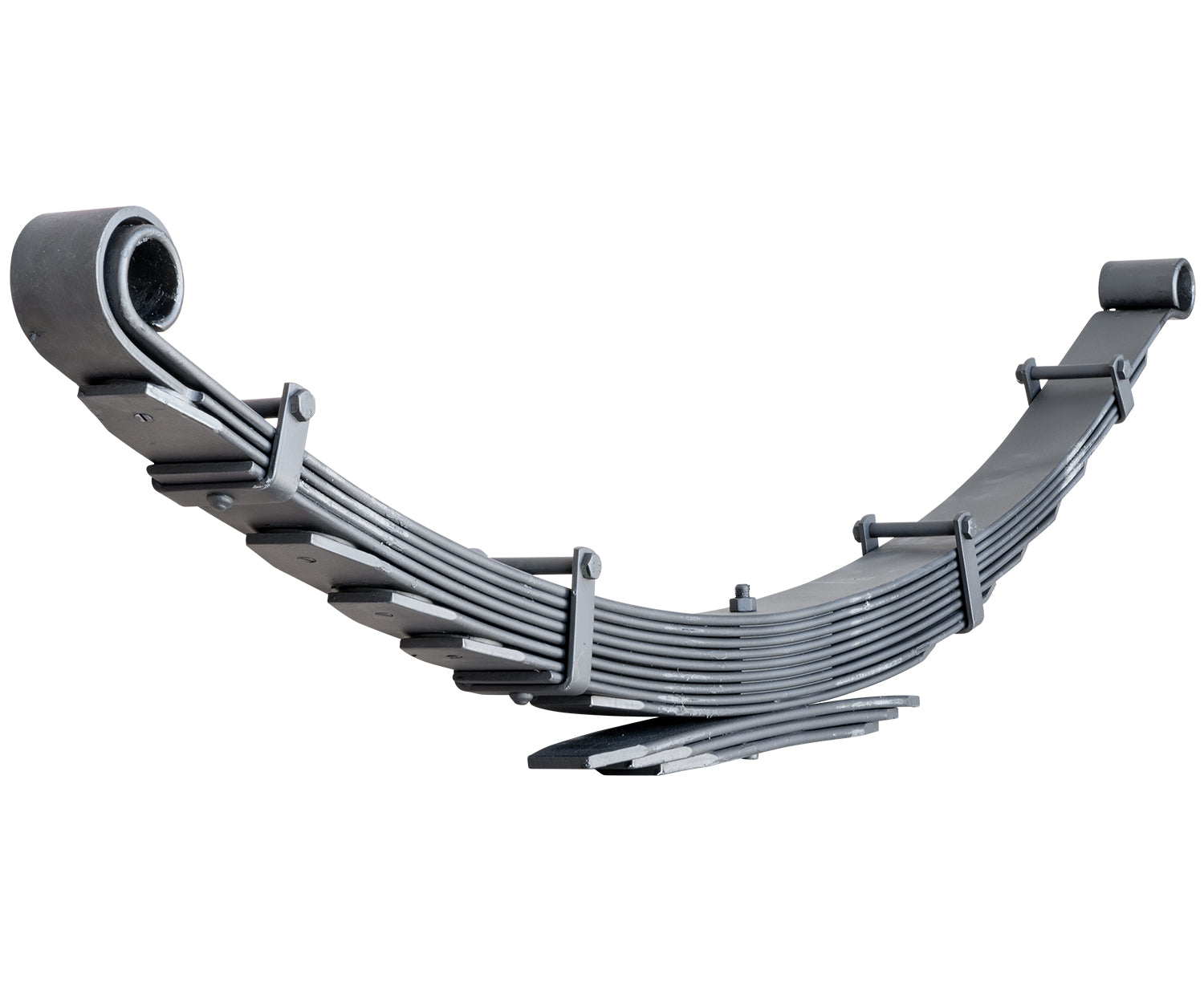

Carli - FORD F250/F350 Ford 2.5" Full Progressive Leaf Packs 17+

Carli’s Progressive Leaf Springs are engineered to dramatically improve ride quality while maintaining impressive load capacity. Key features include:

• Reduced overall spring rate to “light 3/4-ton” for a better ride (more on capacity HERE)
• Increased progression and progressive overload (factory overload acts as a hard stop)
• Dramatically increased suspension travel
• Elimination of factory vulcanized bushing bind with serviceable Cari bushings
• Maximized spring efficiency by minimizing friction throughout the pack
• Custom-tuned Commuter, Backcountry, Pintop, and E-Venture shock packages matched to the new spring rate and progression
• Optimized center pin location for maximum tire fitment

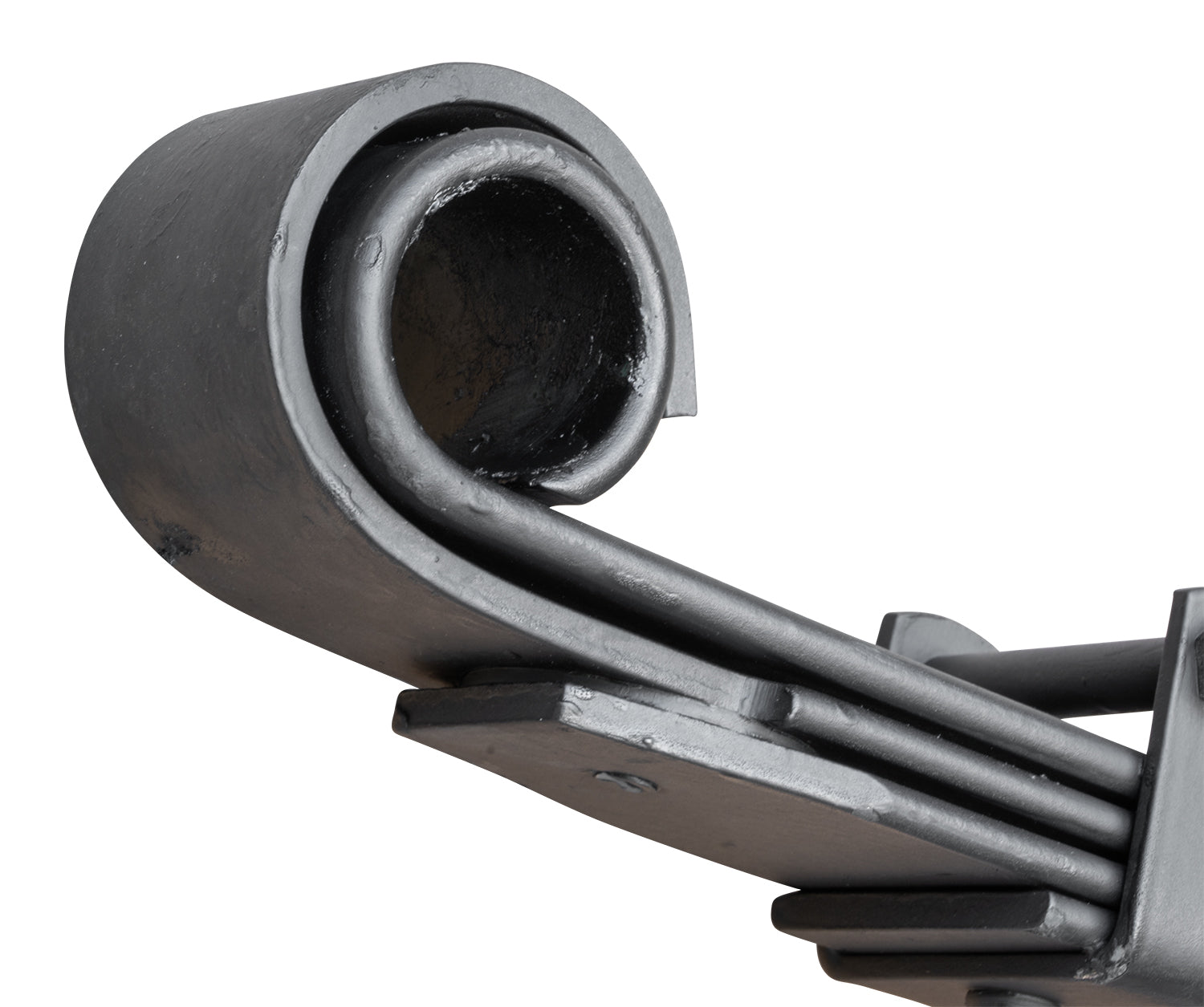

• Military wrap on front eyelet for safety
• Sprayed OEM-quality coating tested to 250-hour salt-spray for durability

Factory Leaf Springs

Stock leaf springs are built to haul, designed to handle maximum truck capacity daily. They ride decent under load but sacrifice comfort when unloaded or lightly loaded. Factory packs feature 2-3 main springs with an immobile overload, which acts as a hard-stop during bumps, resulting in harsh engagement over medium-to-large obstacles.

Carli Leaf Springs

Carli’s progressive leaf springs emphasize ride quality while retaining light 3/4-ton capacity. They provide a softer, more planted ride by:

• Increasing main leaf count (factory: 2-4, Carli: 9)
• Replacing single immobile overload with a 3-leaf progressive overload
• Optimizing design for largest tire fitment, improving small bump compliance
• Reducing overall spring rate while increasing progression for smoother ramp-up through travel
• Providing more suspension travel with bolt-on design, no rear blocks required

Bushing Design

Carli replaces factory vulcanized bushings with high-durometer poly bushings and crush sleeves, allowing free axial movement and minimal friction. Combined with Carli fabricated shackles, this eliminates bind and maximizes efficiency. Grease flutes and supplied grease ensure quiet, long-lasting operation.

Friction Reduction

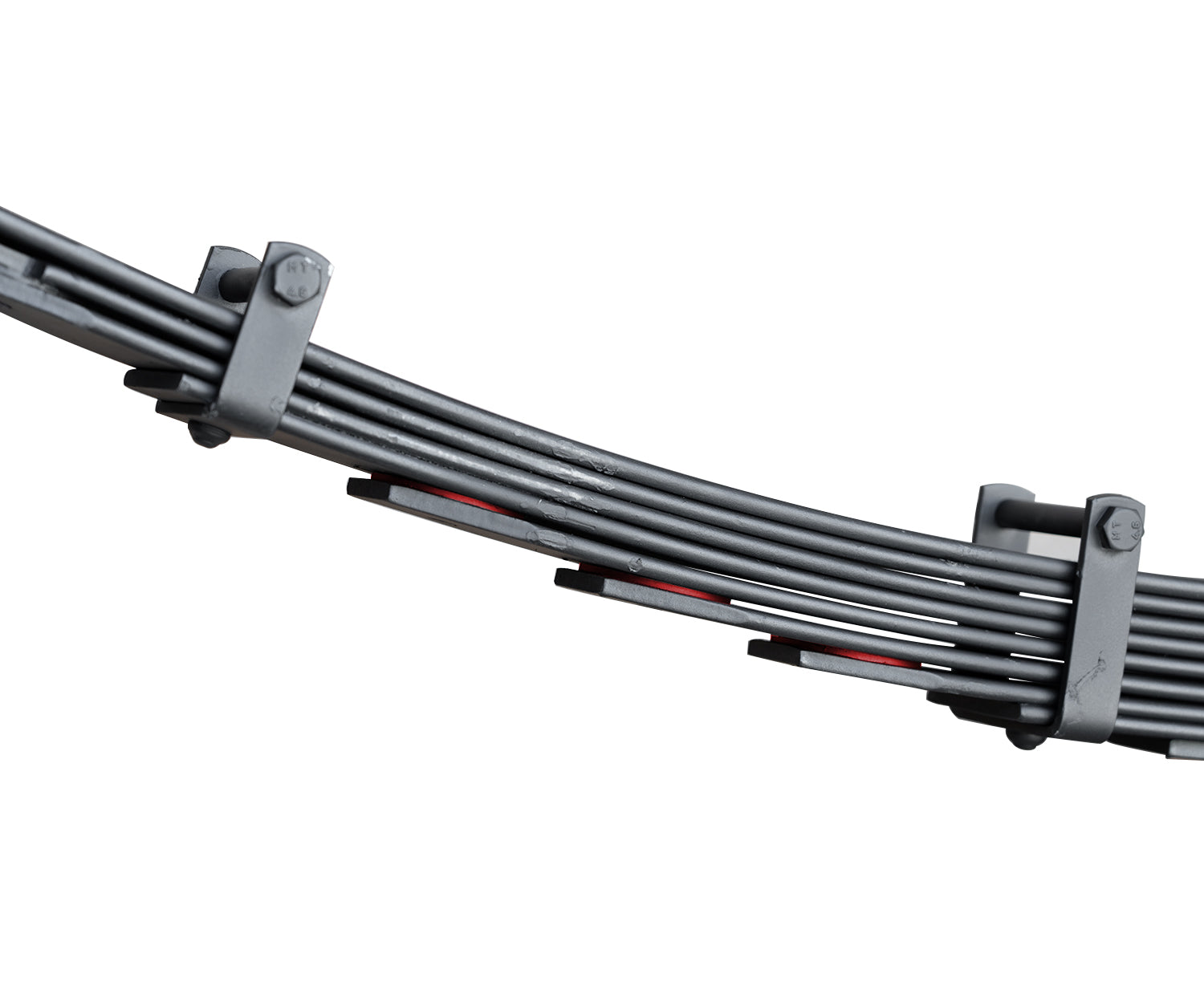

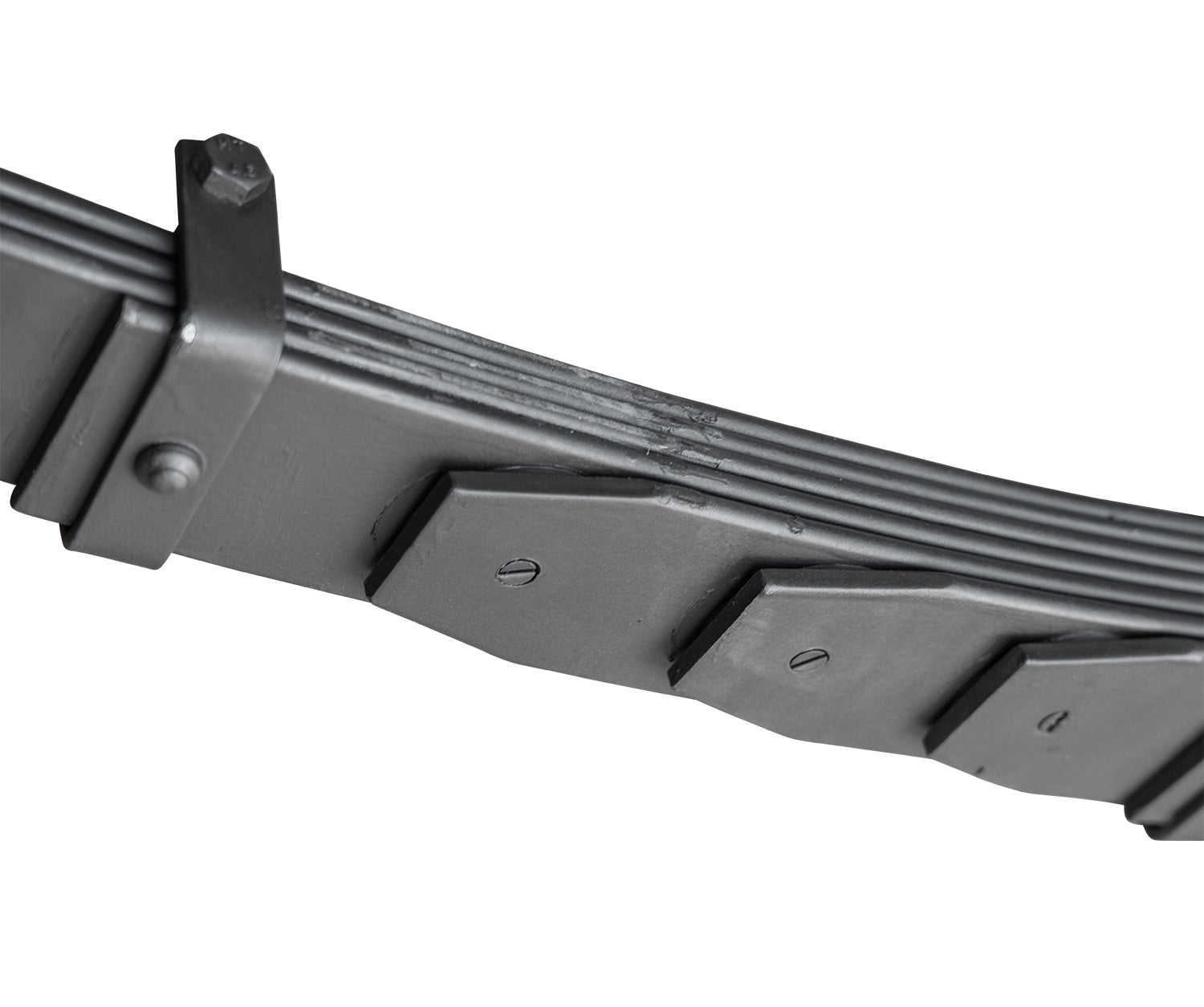

• Diamond-cut ends with poly sliders between each leaf
• Spacers at center pin to prevent contact along pack length
• Optimized pack layout to reduce friction and maximize efficiency

Final Notes

These leaf springs offer one of the best upgrades to soften on-road ride while adding progression and suspension travel for off-road performance. All Carli mid-to-high tier Ford shock packages are tuned to match these springs. If payload capacity is a concern, consider adding airbags for adjustable rear support without sacrificing ride quality.
