Description
Description
17-22 FORD F250/F350 4X4 DIESEL DOMINATOR 3.0 SYSTEM, BASE
Brand: Carli Suspension
PN: CS-F45-D30-17

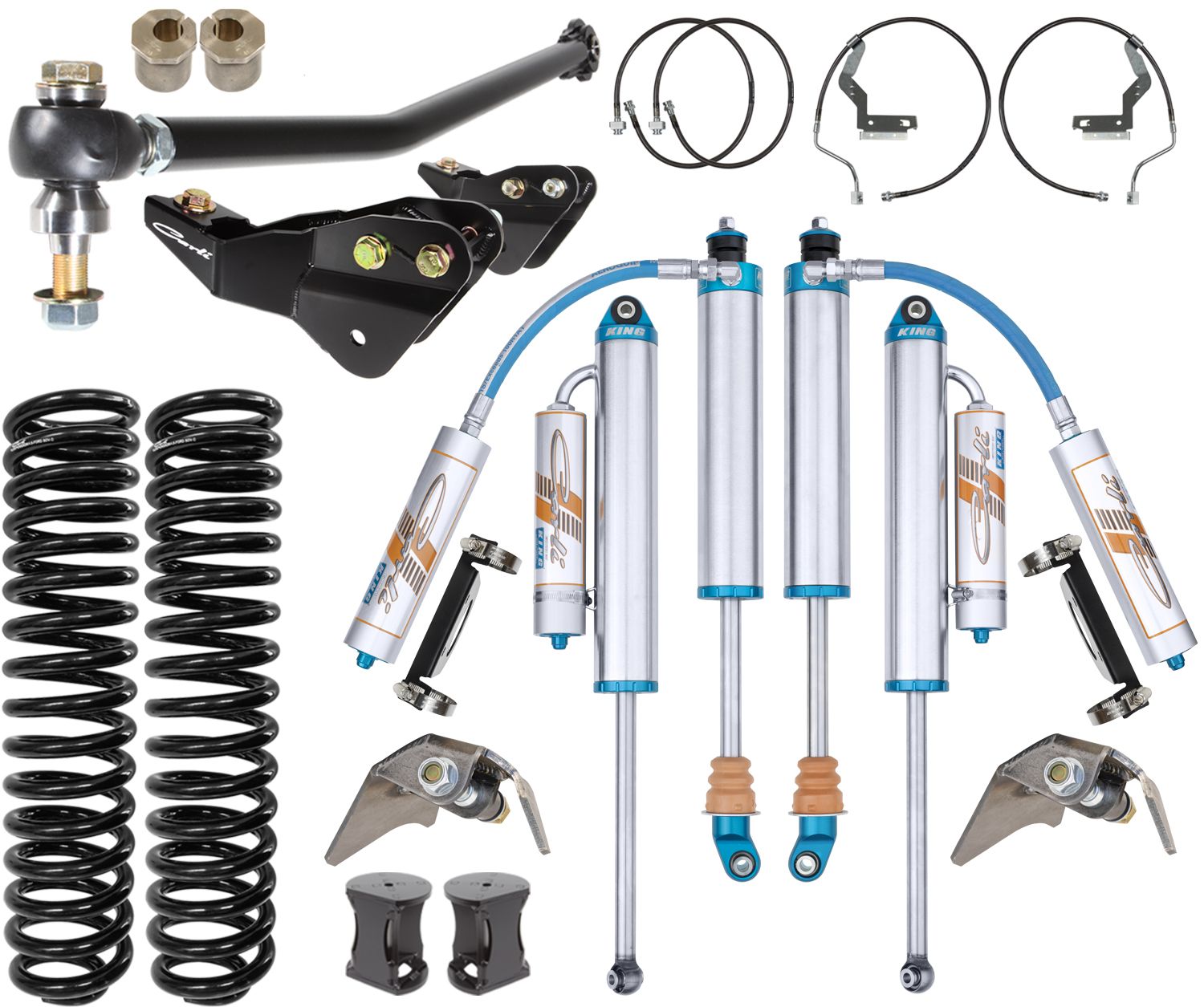

Base Kit Includes
| CS-FMRC-05 | Multi-Rate Coils |

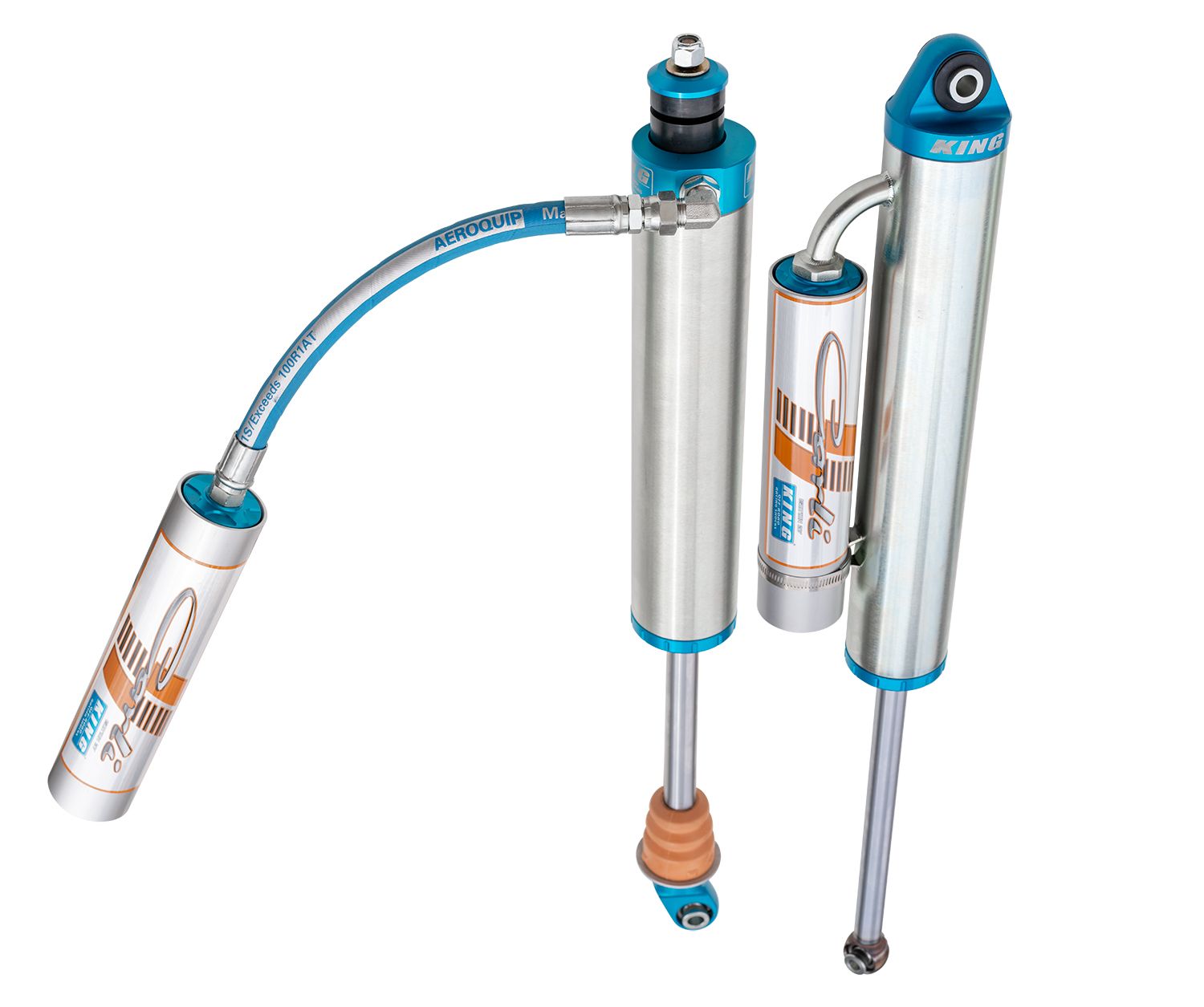

| CS-FD30SPKG-45-1719 | Carli Custom Tuned KING 3.0″ Remote Reservoir Shocks, Front and Rear with Stainless Shafts, Reservoir Mounts, and Rear Shock Mounts |
| CS-FATB-17 | Track Bar |
| CS-FORDBBL-45-17 | Brake Lines |
| CS-FCASTERSHIM-4.5 | 1° Caster Shims |
| CS-FBDF-4.5-17 | High Clearance Bump Stop Drops, Front |
| CS-FRAD-17 | Radius Arm Drops |
Hammer the skinny-pedal and run circles around the E-Venture in the dirt, then pinky-out sip your coffee while commuting your Super-Duty – the Dominator does it all!
5.5" Lift - 2020+ F250/350 4x4 Diesel
4.5" Lift - 2017-19 F250/350 4x4 Diesel
Base Kit
Lift Height Note: 2020 Super Duties were lowered 1” from the factory when comparing to the 2017-19. Further, the Tremor Package is a factory 2” lift on the 20-22 platform putting them 1” taller than the 17-19. As these all START at different heights yet utilize the same lifts, the stated lift height is different. They’ll all end up measuring the same with the lift installed!
2020+
| F250/350 Lift Height | TREMOR Lift Height |
|---|---|
| 5.5″ | 3.5″ |
2017-2019
| Front Lift | Rear Lift | Front Travel | Rear Travel | Shock Type | Tire Fitment |
|---|---|---|---|---|---|
| 4.5″ | 3″ | 10″ | 13″ | 3.0″ | 37″ x 13.5″ |
Hammer the skinny-pedal and run circles around the E-Venture in the dirt, then pinky-out sip your coffee while commuting your Super-Duty – the Dominator does it all!
| Front Travel | Rear Travel | Shock Type | Tire Fitment |
|---|---|---|---|
| 10″ | 13″ | 3.0″ Remote Res | 37″ x 13.5″ |
