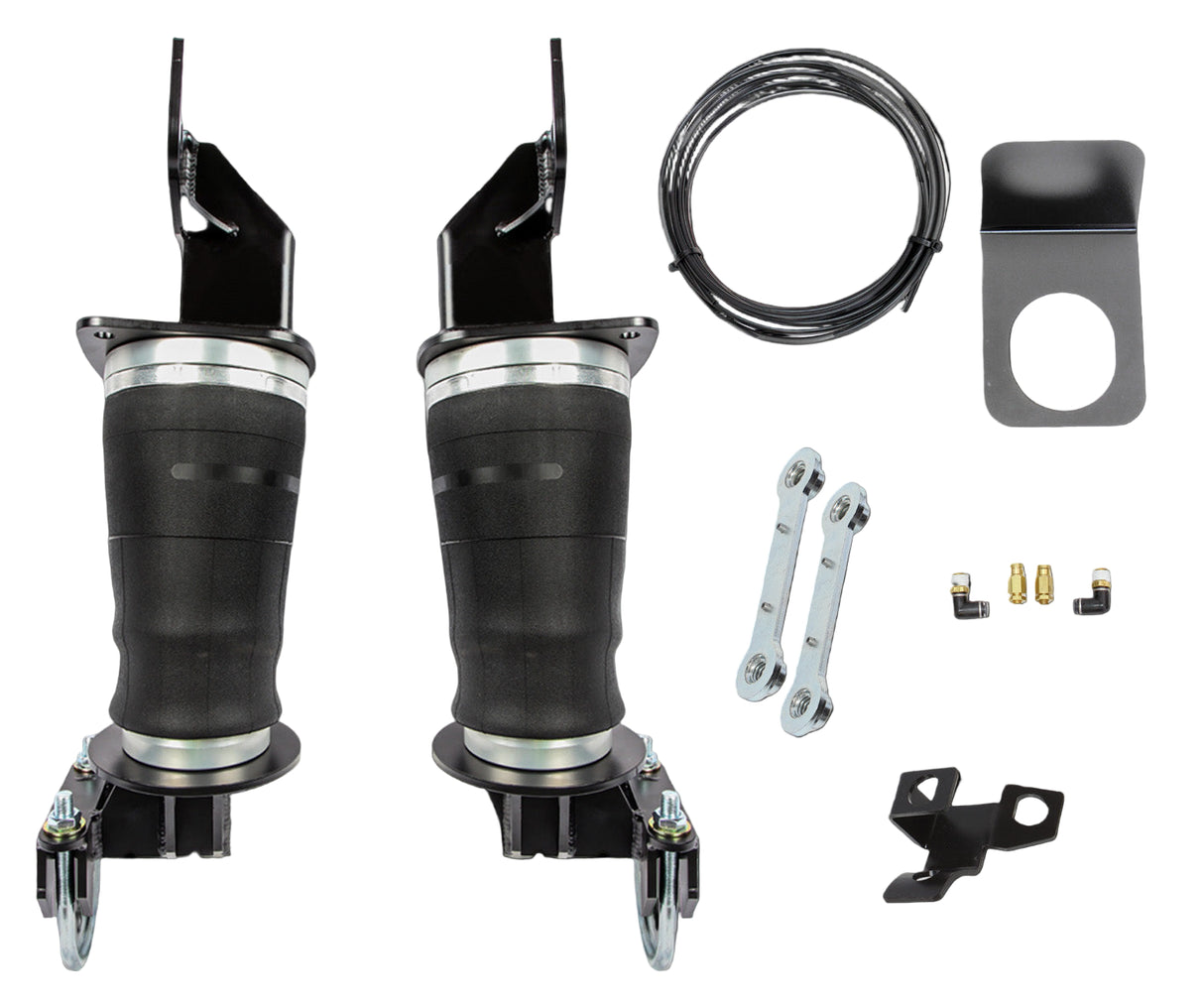

17-22 FORD F250/F350 LONG TRAVEL AIR BAG SYSTEM, FOR 3.5" SYSTEMS

Important: Confirm your truck has a 3.5″ axle tube before ordering. These airbags are designed for 2017-2022 F250 4×4 and F350 4×4 models in both gas and diesel configurations, excluding Tremor or High Capacity Tow packages.

Enhance your Super Duty’s load capacity and towing capability without compromising ride comfort. These heavy-duty airbags support up to 12″ of suspension travel and feature 100% bolt-on DIY installation. They can be used manually or integrated with an onboard air system. Each bag is rated at 2,000 lbs (up to 4,000 lbs total at 100 psi) with a normal operating range of 5 to 75 psi, making them suitable for large 5th wheels, work trucks, campers, boats, bumper pull trailers, and general hauling.

Designed to work with Carli Full Progressive Leaf Springs, these airbags help restore lost payload capacity and provide an adjustable solution for varying loads. They are compatible with add-a-packs, but the factory bump-stop tang must be removed from the factory block.

Note: Ford long travel airbags are compatible ONLY with rear lifts that level to a 5.5″ front lift. For trucks with 3″ factory blocks, a 2″ rear lift is recommended.

• Supports up to 12″ of suspension travel
• Compatible with Carli 4.5″–5.5″ Suspension Systems only
• Restores factory payload with Full Progressive Springs
• Adjustable rear load height, 2,000 lb capacity per bag at 100 psi
• Use manually (included) or with onboard air system (1/4″ airline compatible)
• Fitment: 2017-2022 F250/F350 4×4 with 3.5″ axle tube
