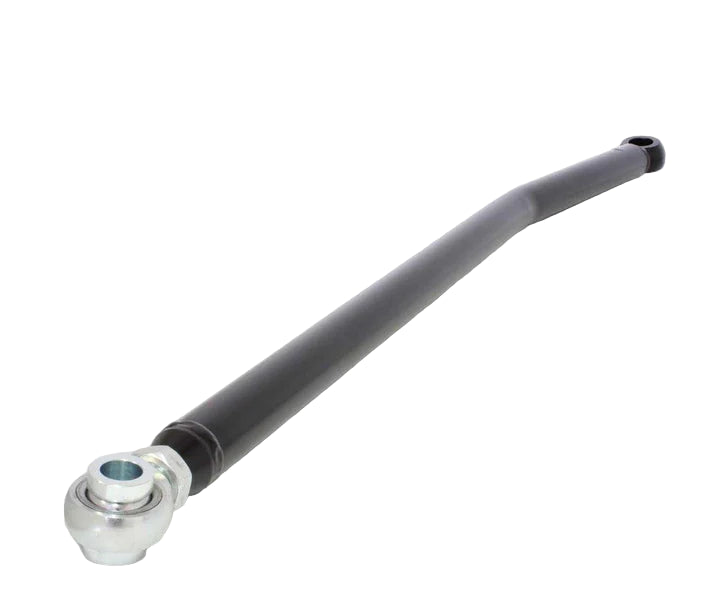

05-16 FORD F250/F350 ADJUSTABLE TRACKBAR

Carli’s Adjustable Track Bar is engineered for maximum strength, articulation, and longevity on lifted Super Duty trucks. The custom machined tapered rod end features a precise angle offset that keeps the ball joint pin vertical at ride height, reducing stress at full droop and extending the life of wear items.

A 7/8" FK Race Heim joint connects to the frame, accompanied by custom-machined misalignment spacers to ensure perfect fitment. The track bar is constructed from heavy-wall 1.50" x 3/8" chromoly tubing for durability and long-lasting performance.

Key Details:

• Fitment: 2005-2016 F250/350 4×4 with 2.5"–4.5" lift

• Not compatible with stock trucks or when using drop brackets

• Heavy-wall chromoly construction (1.50" x .250")

• 7/8" Heim joint with 7/8" shaft

• Custom offset, machined tapered rod end

• Includes custom machined misalignment spacers

Installation Note:

• Replacing the factory ball joint at the track bar is recommended for best results when installing the new adjustable track bar.
