BDS | SKU: BDS1732FS

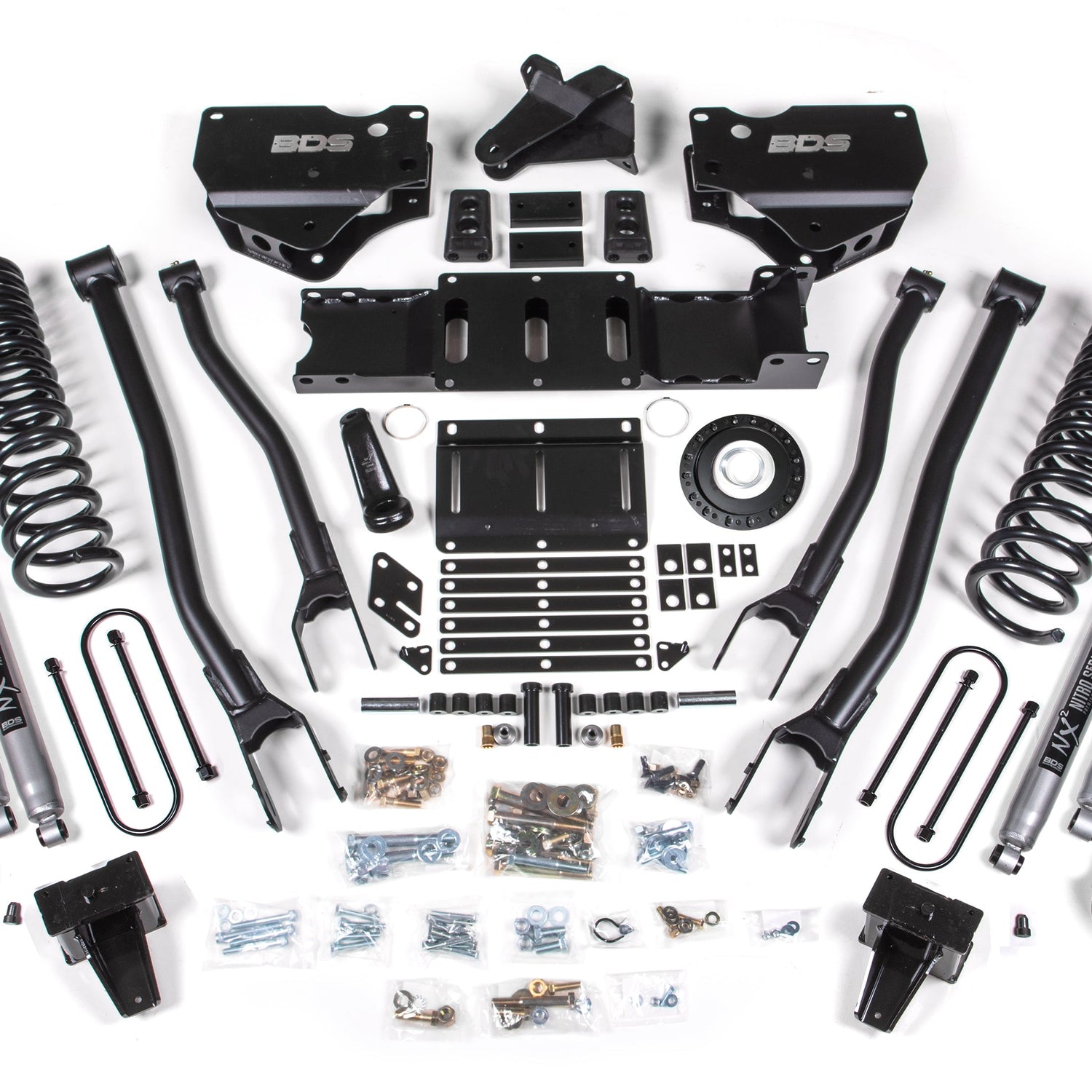

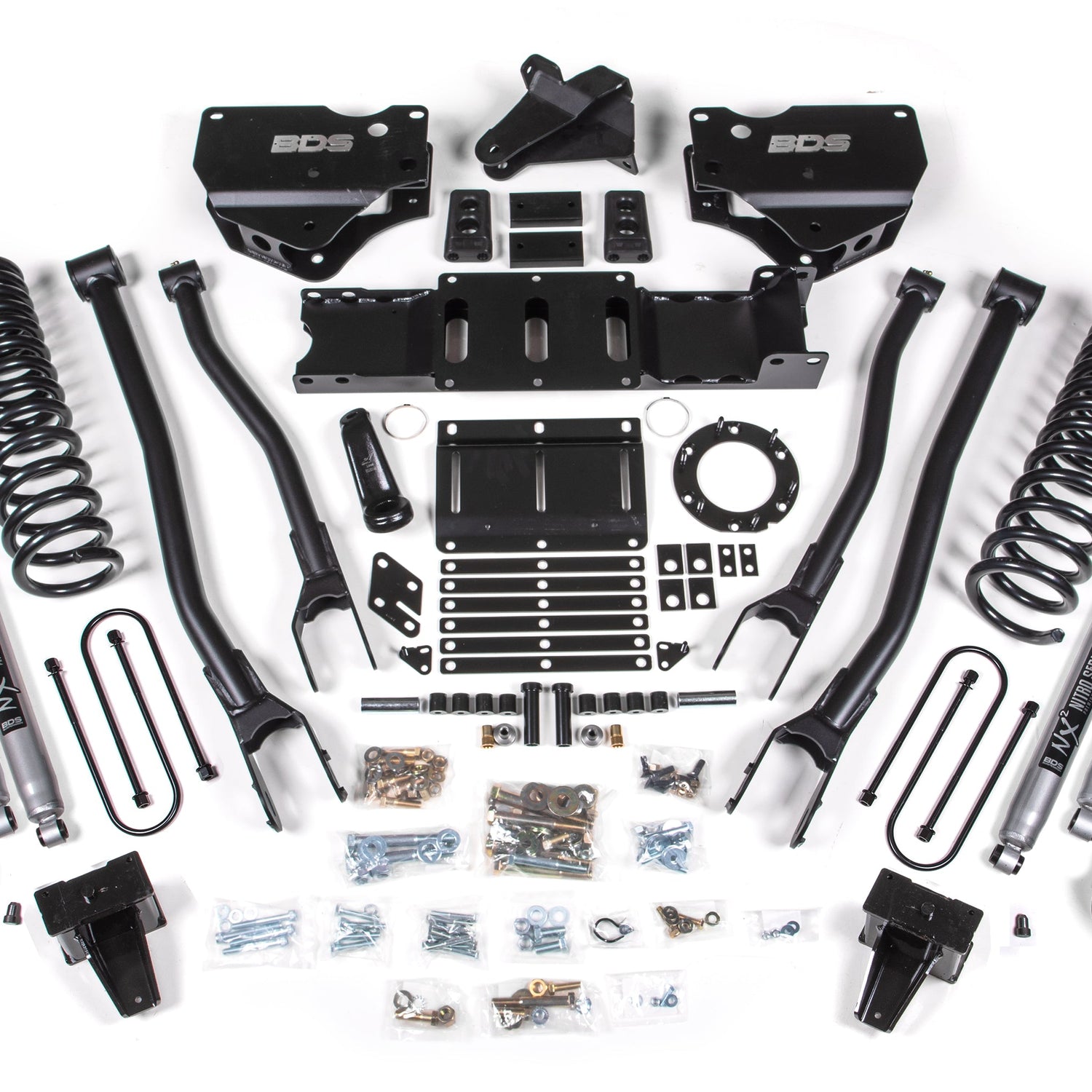

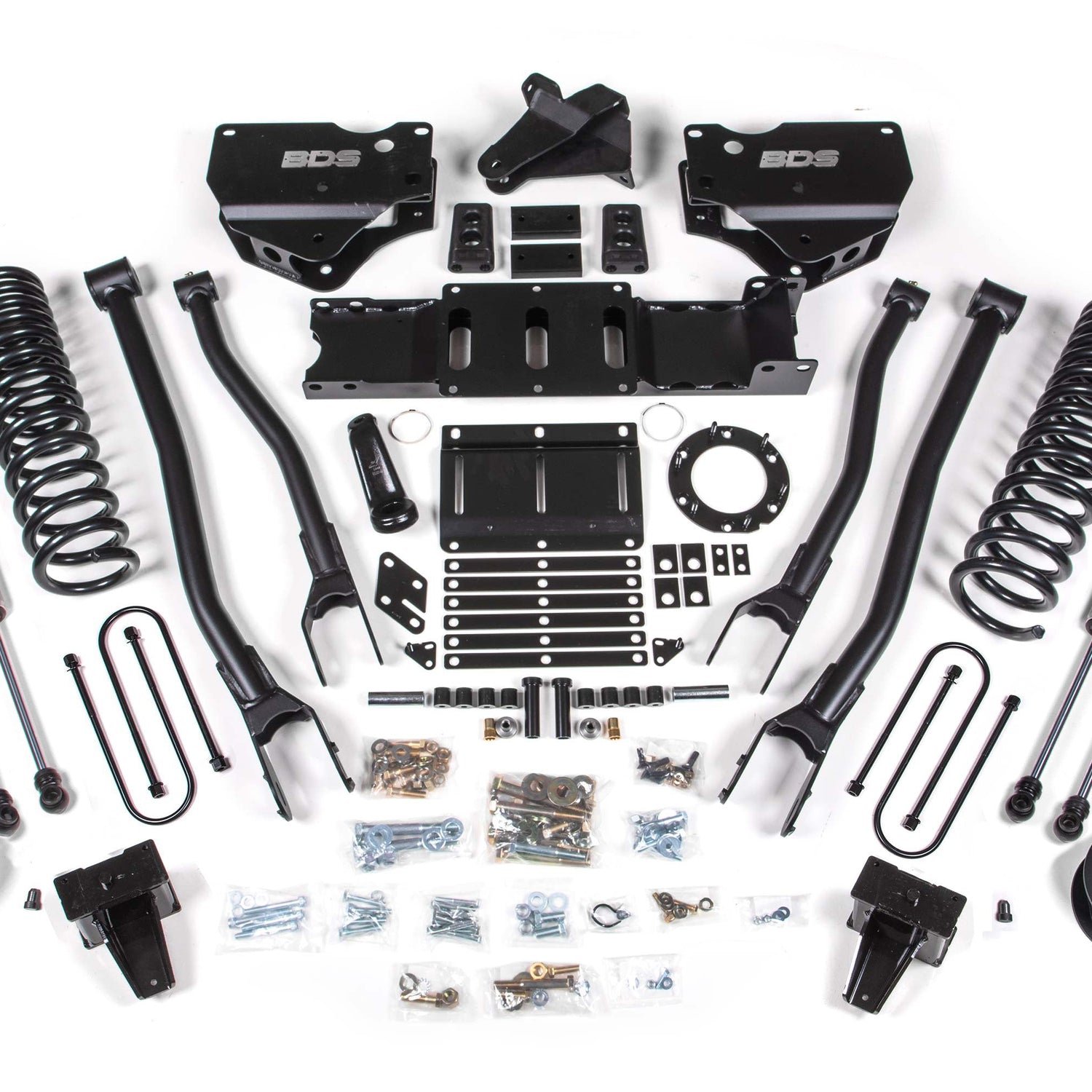

6-Inch Lift Kit w/ 4-Link for 2019-2024 Dodge Ram 3500 w/ Rear Air Ride 4WD Diesel

$ 3,145⁰⁵

Indexing Ring Option

Rear Shock Option

Product variants

Can I pick up my order or have it installed at your shop?

Yes! We offer local pickup on most products and professional installation at our shop at 25 Town and Country Drive, Washington, MO. 63390. Contact us at 636-429-7020 to schedule a time to come in.

How do I know if this part fits my vehicle?

If no fitment info is listed, contact us at 636-429-7020 with your vehicle’s year, make, and model — we’ll help you find the right part.

What if I need to return a product or it’s defective?

Most items can be returned within 30 days if unused and in original packaging. Many products also include a manufacturer warranty. Contact us at 636-429-7020 for assistance.

How can I track my order?

Once your order ships, you’ll get a tracking number via email to monitor your shipment.

Description

Enhance the capabilities of your RAM 3500 diesel truck with rear air ride by upgrading with this 6-inch 4-Link lift kit from BDS. This comprehensive kit includes everything needed to improve stance, performance, and clearance for up to 37" tires.

Featuring diesel-specific Pro-Ride coil springs, 4-Link control arm conversion, drop pitman arm and track bar bracket for steering correction, sway bar relocation, and custom-tuned nitrogen charged shocks.

Also included are an indexing ring and new transmission crossmember for the transfer case at this height. In the rear, high strength steel lift blocks, add-a-leaf springs, heavy duty air bag spacers, u-bolts, and matched NX2 Nitro or FOX Performance shocks are utilized.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

T-Case Indexing

At this height, driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally, a high clearance transmission crossmember supplied to allow sufficient clearance.

Indexing Ring Option

6 Bolt Indexing Ring

Kits come standard with 6-Bolt indexing ring kit.

8 Bolt Indexing Ring

Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt).
The 8-bolt kit also includes an internal shaft seal extension and new shaft seal.

Shock Option

NX2 Nitro Series

Nitrogen-charged
Twin-tube design
10-stage velocity-sensitive valving
Dual-welded ends for increased strength
1-3/8-inch high-flow piston
Self-lubricating seals
Silver powder coat finish

FOX 2.0 Performance Series

2-inch Impact extruded aluminum body
Internal floating piston (IFP) monotube design
CNC machined 6061-T6 aluminum mounting ends
Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
Race-developed high-flow piston design
Application-specific valving to maximize performance
Long-lasting clear anodized finish

Features & Benefits

Heavy duty 4-link improve strength, handling and caster control
Front high strength progressive rate coil springs for a great ride on any terrain
Front track bar relocation bracket to re-position axle
Forged drop pitman arm to correct steering angles
Front sway bar correction to maintain handling performance
HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
