FMI  |  SKU: FMI050033950030101

Ford Raptor (2021-2024) Front Limit Strap Kit for Stock Lower A-Arm

Regular price USD 44999

Can I pick up my order or have it installed at your shop?

Absolutely. We offer local pickup on most products and full professional installation at our shop in Washington, MO. Whether you just want to grab your parts or have our techs handle the install, we’ve got you covered. Give us a quick call at 636-429-7020 or message us to schedule a visit — we’ll make sure the parts are ready when you arrive.

How do I know if this part fits my vehicle?

Unsure if it’ll fit? No problem — that’s what we’re here for. Send us your vehicle’s year, make, and model, and we’ll verify fitment before you order. We can also point you toward compatible upgrades or supporting parts if needed.

What if I need to return a product or it’s defective?

Most unused items can be returned within 30 days in their original packaging. Some products are covered by a manufacturer’s warranty as well. If something arrives damaged or doesn’t meet your expectations, just let us know — we’ll help you get it replaced, refunded, or repaired. (Tracking updates are also emailed automatically once your order ships.)

What's the lead time on custom or fabricated parts?

Many of our parts are built to order — especially fabricated or performance components. These can take additional time to produce before shipping. Lead times vary by manufacturer and demand, but we’ll always keep you updated along the way. If you’re working on a tight schedule, reach out before ordering at 636-429-7020 and we’ll confirm current availability or estimated ship dates.

Description

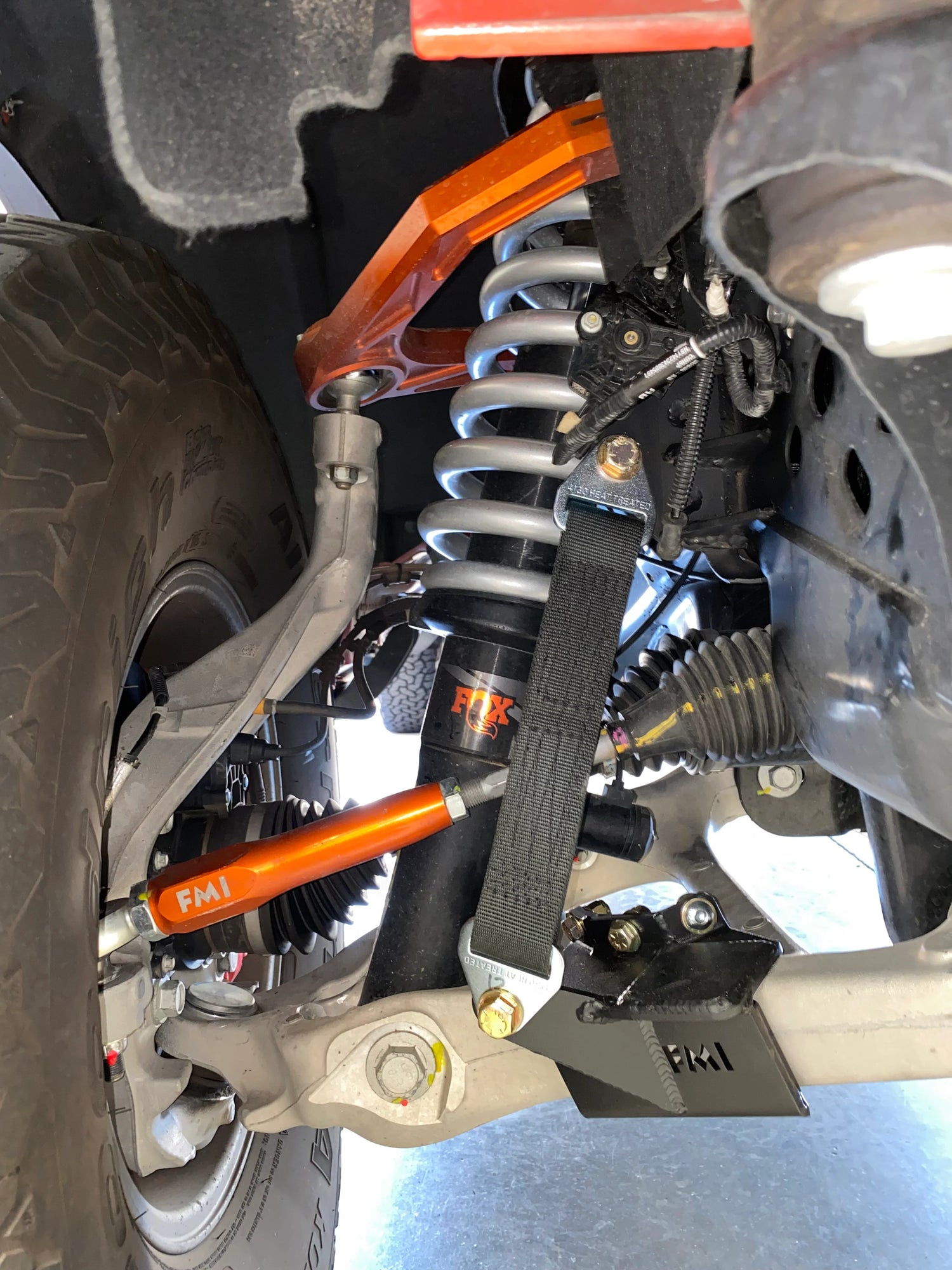

 Control the top out travel and prevent your front suspension from damage with our new Gen 3 and Gen 3.5 Raptor Limit Strap Kit.

FEATURES & BENEFITS
• Designed to work with your factory stock lower a-arm and bolt on to the cast aluminum.
• Limits the top out travel and saves your top shock mount from premature damage.
 Extends the life of your Raptors front suspension components
• Restraints the top out so you don't have to rely on just the shock to stop the droop.
• An absolute must-have If you’re using aftermarket springs on your Raptor
• Works for 2021, 2022, 2023, 2024 F150 Raptor, Raotor R

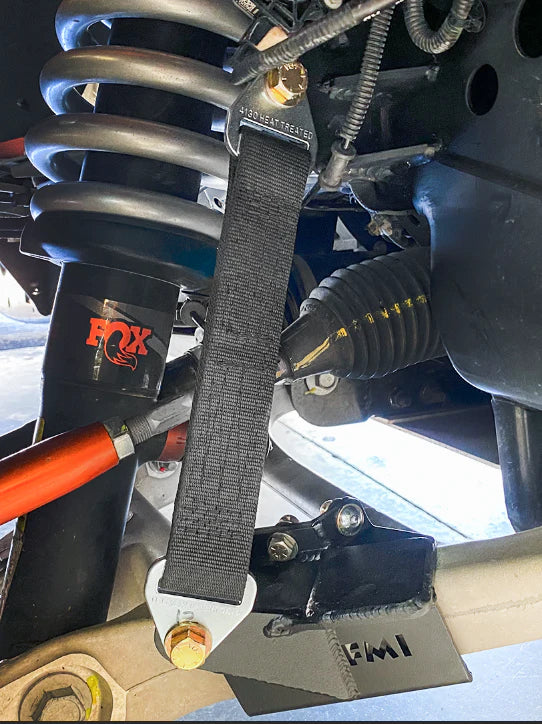

STRONG STRAP WITH STEEL TABS
 The 12" straps are made of high quality material that is capable to withstand abuse when you off-road. Their extreme durability will provide you with long lasting strength, unlike cheap straps that will stretch and wear out over time.
• Each strap features 4 layers of military grade webbing with steel mounting tabs at the end that are plated black.

MOUNTING BRACKET WITH BUMP STOP PAD
• A bump stop pad is built into the mounting brackets as an easy addition for a front bump stop kit that can be added at any time.
• The mounting brackets that secure around the front of the lower stock control arm and are mig welded in house and then finished in a hammer black powder coat for ultimate durability and strength.

KIT INCLUDES:
 ( 2 ) 12" length Limit Straps
 ( 2 ) Weld-On Mounting Tabs
 ( 2 ) Gussets
 ( 2 ) Main Mounting Brackets
 ( 2 ) Mounting Bracket Plates
Lower Control Arm Mounting Bracket Hardware:
• ( 10 )  3/8-16  x 1 1/4" Bolts
 ( 10 ) 3/8-16 Nyloc Nuts
 ( 6 ) 3/8 Washers
Lower Strap Mounting Bracket Hardware
 ( 2 ) 1/2-20  Nyloc Nuts
 ( 2 ) 1/2-20 12 point Bolts
 ( 4 ) 1/2 SAE washers
Upper Strap Mounting Bracket Hardware
 ( 2 ) 1/2-13 x 1 1/2"  Bolts
 ( 2 ) 1/2-13  Nyloc Nuts
• ( 4 ) 1/2  SAE Washers


INSTALLATION NOTE: This install will require you to weld the upper limit strap tabs to the frame and should be installed by a qualified welder/fabricator***
