Description
Description
Carli Suspension

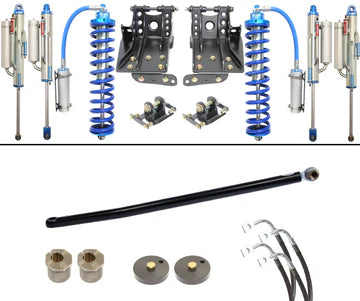

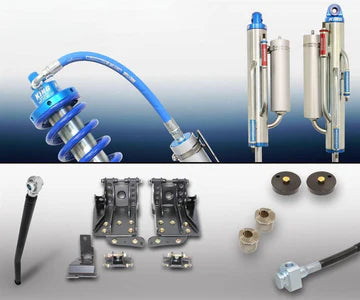

Coilover Bypass 2.5 System - 2.5/3.5in Lift - 2011-16 Ford F250/F350 Diesel
The Carli Coilover Bypass System is one of the most capable off-road suspension systems available for the 2011–2016 Super Duty platform. Designed to deliver exceptional performance both on-road and off-road, this system combines premium ride quality with extreme terrain capability through advanced shock technology and precision tuning.
At the core of this system are Carli-spec King 2.5" coilovers and multi-tube bypass shocks, offering unmatched control, tunability, and bottom-out resistance. With multiple adjustable zones for compression and rebound, the bypass shocks allow you to fine-tune ride quality and performance to match your driving style and terrain.
Key Features:
-
Provides approximately 2.5" of front lift (up to 3.5" depending on configuration)
-

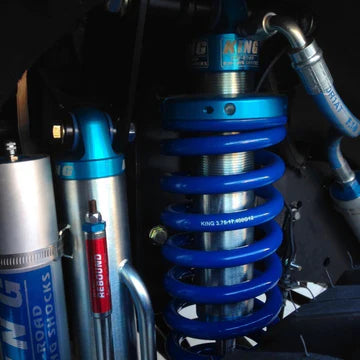

Carli-SPEC King 2.5" front coilovers with custom tuning
-
8" stroke front 2-tube bypass shocks for enhanced front suspension control
-
12" stroke rear 3-tube bypass shocks with oversized rebound tube
-
Fully adjustable bypass shock tubes for compression and rebound tuning
-
Custom Carli-designed pistons for optimized damping performance
-
17-4 stainless steel shock shafts for maximum durability and corrosion resistance
-
King shock oil rated to -55°F for extreme conditions
-
Adjustable track bar, caster shims, and stainless brake lines included
-
Increased wheel travel and improved off-road capability
Notes:
-
Bypass shocks feature external tubes and may produce audible clicking during operation
-
System is fully adjustable for ride comfort or maximum off-road performance
-
Full Progressive Leaf Spring Pack reduces load capacity by approximately 15% compared to stock F-250
-
Off-road focused system; additional upgrades such as radius arms, steering stabilizer, and differential protection are recommended
-
Roll cage is recommended for extreme off-road use
-
Shocks use plated steel bodies; protective wrapping is recommended in harsh environments
Wheel and Tire Recommendations:
-
17"–18" wheels, no wider than 9"
-
Approximately 5" backspacing with Carli radius arms
-
35" tires fit with minimal trimming; 37" tires may require trimming
-
Larger tires improve ride compliance when properly inflated
Vehicle Fitment:
-
2011–2016 Ford F-250 Super Duty
-
2011–2016 Ford F-350 Super Duty
SKU: CS-FLVL-CO25-BYP-11
