Description
Description
Carli Suspension
Carli Unchained 3.0 Bypass System - Base - 4.5in Lift - 2011–2016 Ford F-250/F-350
The Carli Unchained 3.0 Bypass System is the pinnacle of off-road suspension performance for Super Duty trucks, engineered for drivers who demand maximum capability beyond what the chassis was originally designed to handle. Built around massive King 3.0” bypass shocks with multiple external tubes, this system delivers unmatched tunability, allowing you to fine-tune compression and rebound characteristics for both comfort and aggressive terrain.
Unlike traditional shock setups, the Unchained system uses external bypass tubes with one-way check valves to create multiple damping zones. This allows for a smooth, compliant ride during normal driving while dramatically increasing resistance during large impacts, effectively acting as a tunable internal bump stop. The result is a highly adaptable suspension that performs exceptionally well both on-road and in extreme off-road conditions.

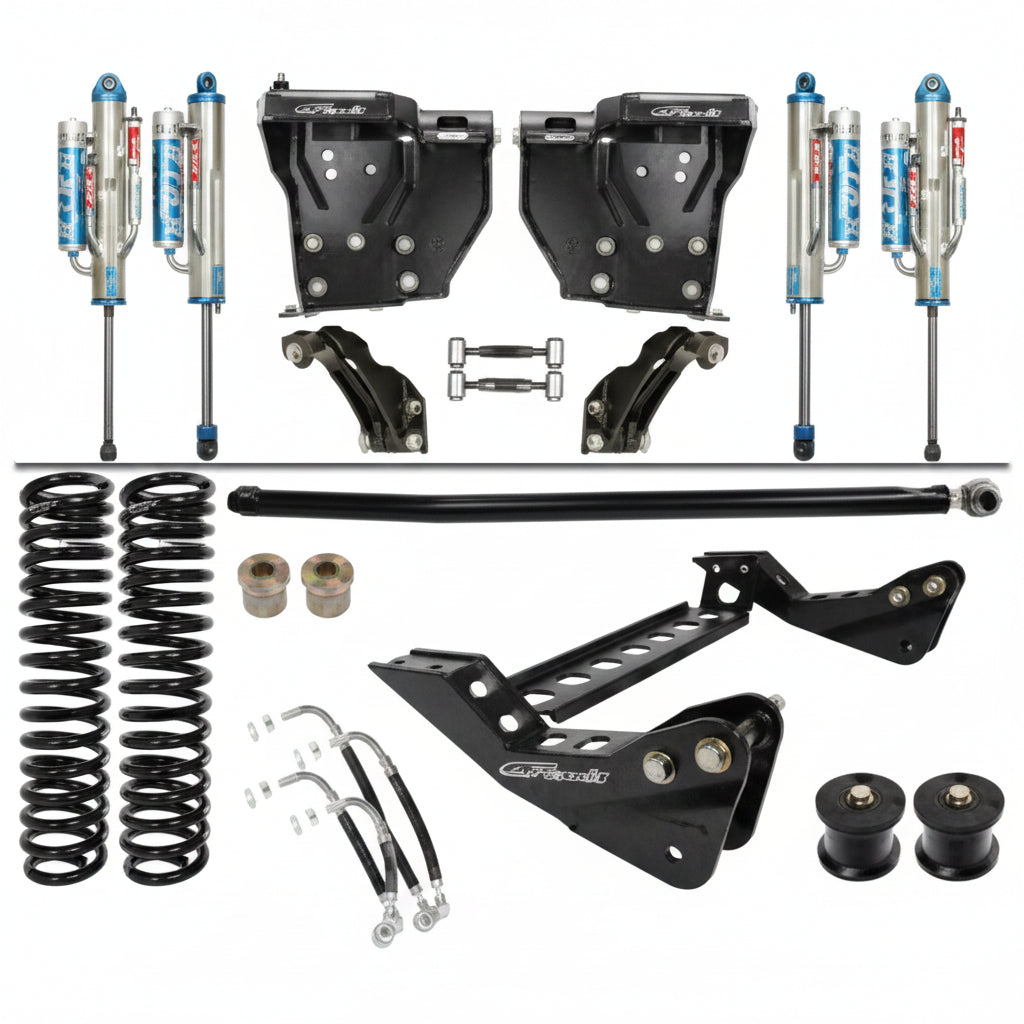

Key Features:
-
King 3.0” 2-tube front and 4-tube rear piggyback bypass shocks
-
Fully adjustable external bypass tubes for compression and rebound tuning
-
Fabricated coil buckets for increased strength and travel
-
Includes front and rear shock package with custom mounts
-
Radius arm drop brackets for proper geometry and linear travel
-
Adjustable track bar to re-center the front axle
-
Bump stop drops to prevent over-compression
-
Stainless steel brake line kit for improved durability and extended travel
-
Caster correction shims for improved steering feel and alignment
-
Rear shock mounts designed to accommodate large bypass shocks
Performance Notes:
-
4.5” front lift height with increased wheel travel
-
Designed for extreme off-road capability with strong on-road manners
-
Fully tunable ride characteristics based on terrain and driver preference
-
External bypass shocks may produce audible clicking during operation
-
System is significantly more capable than factory chassis limitations
-
Roll cage and axle truss recommended for aggressive off-road use
-
Long travel airbags available to restore payload capacity if needed
-
Recommended wheel setup: 17–18” wheels, max 9” width, 4.5–5” backspacing with 37” tires
-
Oversized tires on factory wheels are not recommended due to clearance concerns
Vehicle Fitment:
-
2011–2016 Ford F-250 Super Duty
-
2011–2016 Ford F-350 Super Duty
SKU: CS-F45-UC30-11
