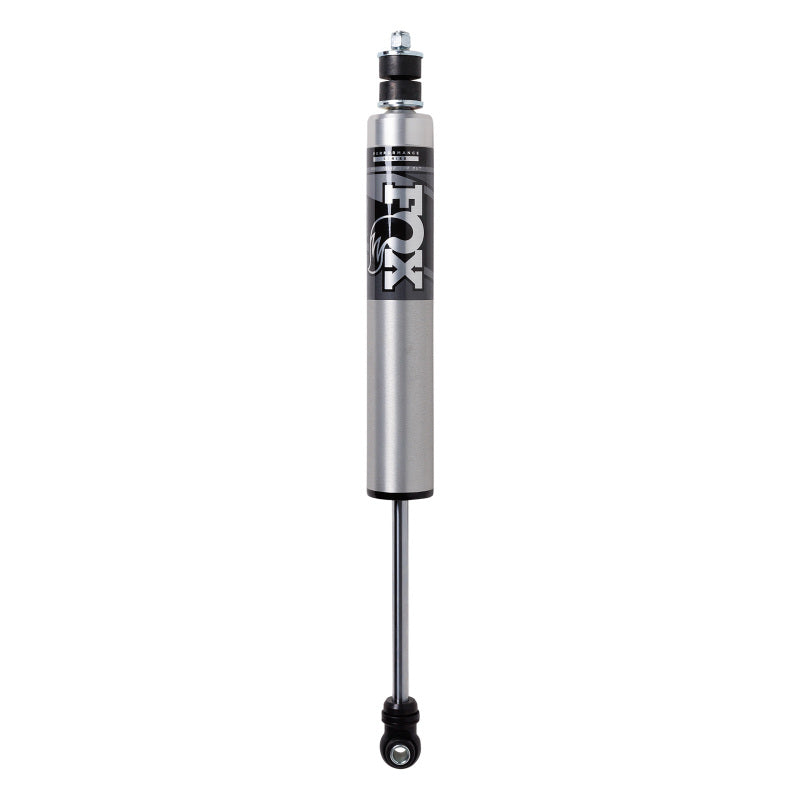

Dial in the back end of your 2014+ Ram 2500 / 2013+ Ram 3500 with the FOX 2.5 Performance Series IFP HTO Rear Shock, valved for 2–3 in. of rear lift. You get extended drop-out travel for more off-road capability and performance-minded valving for a connected on-road ride with less sway.
Why Choose the FOX 2.5 Performance Series IFP HTO Rear Shock?
- Tuned for 2–3 in. of rear lift – valving built specifically for this Ram application at this lift height
- Hydraulic Top Out (HTO) – position-sensitive rebound control forces oil through a secondary shim stack to slow shaft speed and stop harsh top-outs, a big help on lifted trucks running heavier, aggressive tires
- More drop-out travel – extends usable travel in most applications so the rear axle stays planted off-road
- True internal floating piston – the IFP separates oil from high-pressure nitrogen to prevent aeration and keep damping consistent
- Fade-resistant aluminum body – aluminum sheds heat four times better than conventional materials, so performance holds up on long, rough runs
- Fully serviceable – torture-tested, race-proven, and resistant to corrosion and harsh environments
Fits These Models
2014+ Ram 2500 and 2013+ Ram 3500 – rear position, 2–3 in. of rear lift.
Specifications
| Feature | Detail |
|---|---|
| Part # | 987-24-047 |
| Series | FOX 2.5 Performance Series Smooth Body IFP HTO |
| Position | Rear |
| Lift Range | 2-3in |
| Shock Body | 2.5 in. impact-extruded 6061-T6 aluminum, Type II clear-anodized |
| Shaft | 5/8 in. hard chrome |
| Damping | High-flow, velocity-sensitive with HTO piston |
Key Features at a Glance
- 2.5 in. IFP monotube – consistent damping without oil aeration
- HTO piston – softer, controlled full-extension on rebound
- Lift-specific valving – matched to 2–3 in. of rear lift
- Rebuildable – fully serviceable for years of use
Notes
- Sold individually – order two for the rear axle.
- Front companion for lifted Rams: the FOX 2.5 Performance Series IFP HTO front shock is sold separately by lift height.
SKU: 987-24-047
