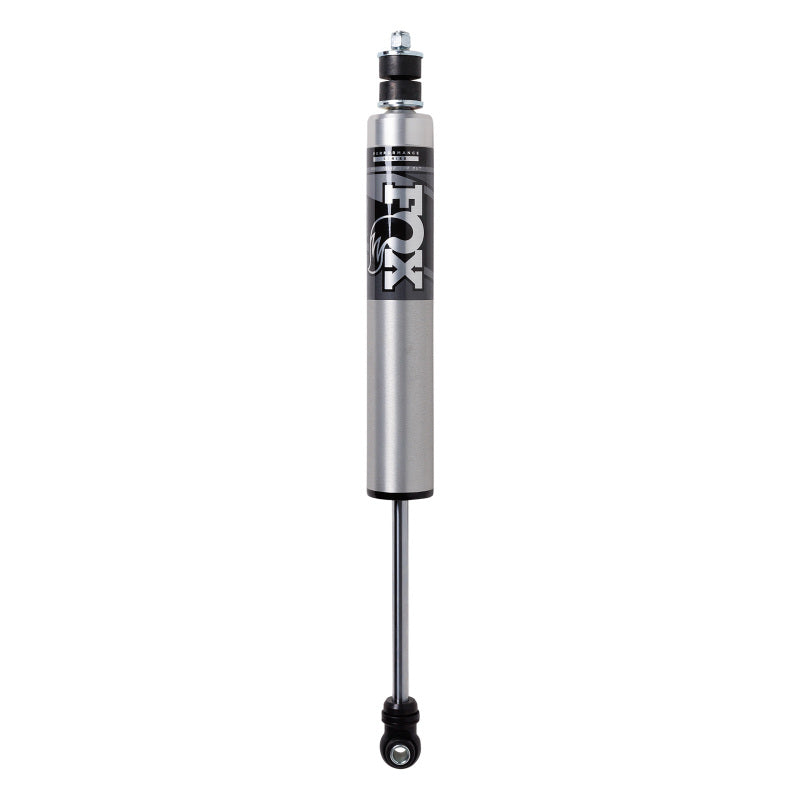

Built for lifted fronts: the FOX 2.5 Performance Series IFP HTO Front Shock is valved for 3–4 in. of front lift on the 2014+ Ram 2500 / 2013+ Ram 3500. Position-sensitive rebound control tames top-outs over rough terrain while performance-minded valving keeps the truck connected and composed on the highway.
Why Choose the FOX 2.5 Performance Series IFP HTO Front Shock?
- HTO rebound control up front – Hydraulic Top Out pushes oil through a secondary shim stack to slow shaft speed near full extension, cutting harsh top-outs on trucks lifted past OEM height
- Valved for 3–4 in. of front lift – application-specific tuning for your Ram’s lifted front end
- Bigger tires, better control – HTO is especially effective once heavier, aggressive tires go on
- Less sway on-road – performance-minded valving delivers a connected ride with reduced body roll
- Consistent, fade-free damping – a true internal floating piston keeps oil and nitrogen separated, and the aluminum body dissipates heat four times better than conventional materials
- Built to be rebuilt – fully serviceable, corrosion resistant, race-proven
Fits These Models
2014+ Ram 2500 and 2013+ Ram 3500 – front position, 3–4 in. of front lift.
Specifications
| Feature | Detail |
|---|---|
| Part # | 987-24-046 |
| Series | FOX 2.5 Performance Series Smooth Body IFP HTO |
| Position | Front |
| Lift Range | 3-4in |
| Shock Body | 2.5 in. impact-extruded 6061-T6 aluminum, Type II clear-anodized |
| Shaft | 5/8 in. hard chrome |
| Damping | High-flow, velocity-sensitive with HTO piston |
Key Features at a Glance
- Front-specific valving – matched to 3–4 in. of lift
- Hydraulic Top Out – controlled rebound at full extension
- Internal floating piston – no oil aeration, steady damping
- Anodized aluminum body – heat control and corrosion resistance
Notes
- Sold individually – order two for the front axle.
- Rear shocks are sold separately and are valved by rear lift height.
SKU: 987-24-046
⚠ WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Questions? We’re Here to Help.
Have questions about upgrades for your Ram 2500 or 3500? Contact FASS Motorsports and we’ll get you dialed:
Phone: 636-429-7020
Email: info@fassmotorsports.com
This part fits the following vehicles:
| Years | Make & Model |
|---|---|
| 2014–2026 | Ram 2500 |
| 2014–2026 | Ram 3500 |
Fitment is listed by year, make and model. Some applications also depend on cab, bed, drivetrain or engine — if you are not sure, call 636-429-7020 or send us your vehicle details and we will confirm before you order.
