Description
Description
CST's 6-8" adjustable front suspension system for 2011-2019 Chevy Silverado / GMC Sierra 2500HD, 3500 & 3500 Dually trucks (2WD & 4WD). Engineered with CST's trophy-truck-derived geometry and built in the USA, it retains factory O.E. suspension geometry and full factory track width for a stock-quality ride with zero GM StabiliTrak issues. No cutting and no welding required, and the truck can be returned to stock. Stage 2 builds on the base kit by adding CST Dirt-Series 2.0 reservoir rear shocks (the front continues to use the factory O.E. shocks).

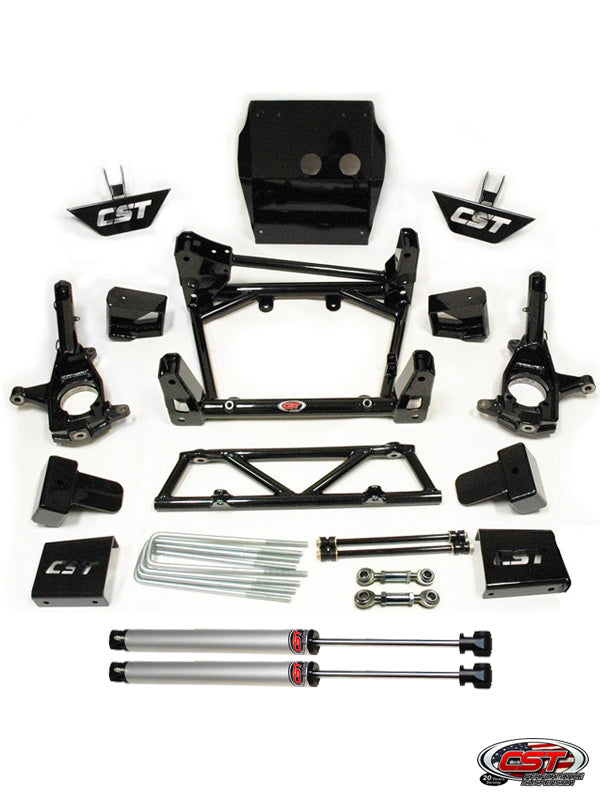

Front kit includes:
- One-piece gusseted sub-frame with full-size steel differential skid plate
- Fabricated, CNC-machined steel front steering knuckles
- High-strength steering drop center-link with heim-jointed support links (reduces wear on the factory idler and pitman arms)
- Differential drop brackets
- Heavy-duty bump-stop brackets
- Extended sway-bar end links
- Brake-line drop brackets
- CST laser-cut torsion x-member drop brackets
- Built-in steering-stabilizer brackets (stabilizer shock optional)
- O.E. front shock extensions and all necessary hardware
Rear kit includes: fabricated 4" lift blocks with bump-stop pads, heavy-duty 3/4" zinc-plated U-bolts, and a pair of CST Dirt-Series 2.0 reservoir rear shocks.
Features:
- 6-8" adjustable lift height (set via factory torsion-bar adjustment)
- Constructed of 1/4" or thicker steel for added strength
- Two-stage gloss-black powder-coat finish
- Retains factory track width — no StabiliTrak issues
- Clears 35" tires, or 37x12.50 / 13.50 with minor trimming (must be set to 8" of lift)
- Improved ride quality, ground clearance and tire clearance
- Made in the U.S.A.
Fitment & notes:
- Front continues to use the factory O.E. shocks; upgrade front shock packages available (see Stage 3+).
- Rear Dirt-Series 2.0 reservoir shocks are included with this stage.
- May require a carrier-bearing drop.
- Fits 3500/Dually trucks but may require custom/longer U-bolts.
- Wheel backspacing: 17" wheels — 5.25" max; 20" or larger — 5.75" max.
- Professional installation and a post-install alignment are recommended.
Recommended upgrades: front shock brackets (CSS-C33-4 single / CSS-C5-7 dual) with CST Dirt-Series 2.0 reservoir front shocks (CSA-6521 / CSA-6522), uniball or ball-joint upper control arms, extreme-duty tie rods (CSS-C24-18), aluminum skid plate (CSS-C29-15), CV front driveshaft (CSP-C28-1, requires shift-linkage bracket), and CST steering stabilizer (CSR-2946).
