CST 7" Stage 4 Suspension System — 19-25 Chevy / GMC 1500 2WD/4WD
Can I pick up my order or have it installed at your shop?
Can I pick up my order or have it installed at your shop?
Absolutely. We offer local pickup on most products and full professional installation at our shop in Washington, MO. Whether you just want to grab your parts or have our techs handle the install, we’ve got you covered. Give us a quick call at636-429-7020or message us to schedule a visit — we’ll make sure the parts are ready when you arrive.
How do I know if this part fits my vehicle?
How do I know if this part fits my vehicle?
Unsure if it’ll fit? No problem — that’s what we’re here for. Send us your vehicle’s year, make, and model, and we’ll verify fitment before you order. We can also point you toward compatible upgrades or supporting parts if needed.
What if I need to return a product or it’s defective?
What if I need to return a product or it’s defective?
Most unused items can be returned within 30 days in their original packaging. Some products are covered by a manufacturer’s warranty as well. If something arrives damaged or doesn’t meet your expectations, just let us know — we’ll help you get it replaced, refunded, or repaired. (Tracking updates are also emailed automatically once your order ships.)
What's the lead time on custom or fabricated parts?
What's the lead time on custom or fabricated parts?
Many of our parts are built to order — especially fabricated or performance components. These can take additional time to produce before shipping. Lead times vary by manufacturer and demand, but we’ll always keep you updated along the way. If you’re working on a tight schedule, reach out before ordering at636-429-7020and we’ll confirm current availability or estimated ship dates.
Description
Description
7" of lift on high-clearance subframes — for 2019–2025 Chevy Silverado / GMC Sierra 1500 (2WD & 4WD). Maximum ground clearance with laser-cut fabricated knuckles. Must run 20" or larger wheels.

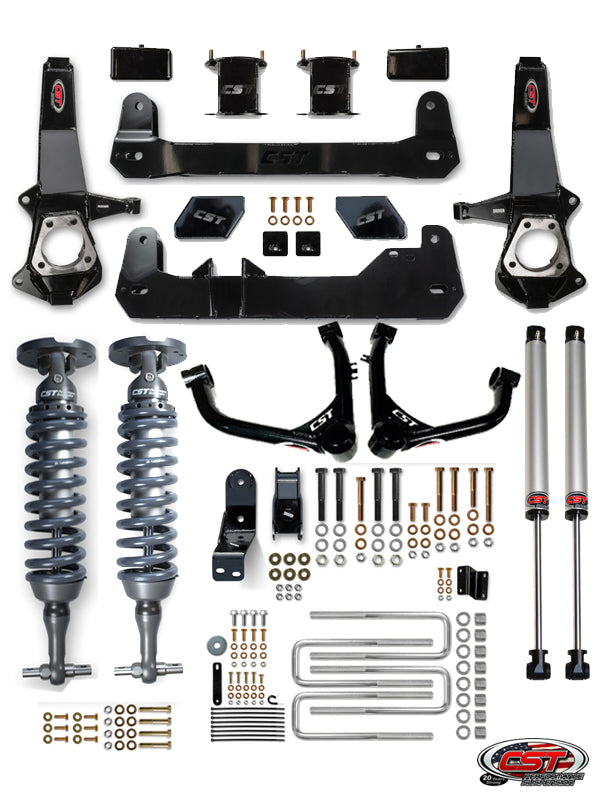

What this stage includes
- High-clearance front subframes with diff-drop brackets
- Laser-cut, machined steering knuckles
- Sway-bar drops and ABS drop brackets
- 4" fabricated offset rear lift blocks with an 11.5" U-bolt kit
- All hardware
- Plus CST DIRT-Series uniball upper control arms
- Plus CST DIRT-Series 2.5 front coilovers
- Plus CST DIRT-Series 2.0 rear shocks
Why CST
- True 7" of lift on USA-made high-clearance subframes
- Uniball upper control arms correct geometry and add articulation at full lift
- Laser-cut, machined knuckles for strength and durability
- Maximum ground clearance while protecting vital front suspension components
Good to know
- Requires 20" or larger wheels
- Clears 35" tires with no trimming, or 37s with minor trimming (20x9, 5" backspacing)
- Max wheel backspacing: 5"
- Professional installation and alignment recommended
